4 Safety Precautions
3 Spray gun
The spray gun is used to hold and guide the spray
attachment.
4 Retaining latch
The retaining latch unlocks the trigger.
5 Trigger
The trigger opens and closes the valve in the spray gun.
The trigger starts and stops the water jet.
6 Locking lever
The locking lever holds the connector in the spray gun.
7 High-pressure hose
The high-pressure hose transports the water from the
high-pressure pump to the spray gun.
8 Coupling
The coupling connects the high-pressure hose with the
high-pressure pump.
9 Connector
The connector connects the high-pressure hose with the
spray gun.
10 Cleaning pin
The cleaning pin is provided to clean the nozzles.
11 Spraying set
The spraying set is used for cleaning with detergents.
12 Bottle
The bottle contains the detergent.
13 Adjusting ring (only RE 120)
The adjusting ring doses the detergent.
14 Spray nozzle
The spray nozzle mixes the detergent with the water.
15 Rotary nozzle
The rotary nozzle creates a hard, rotating water jet.
16 Fan-jet nozzle
The fan-jet nozzle creates a flat water jet.

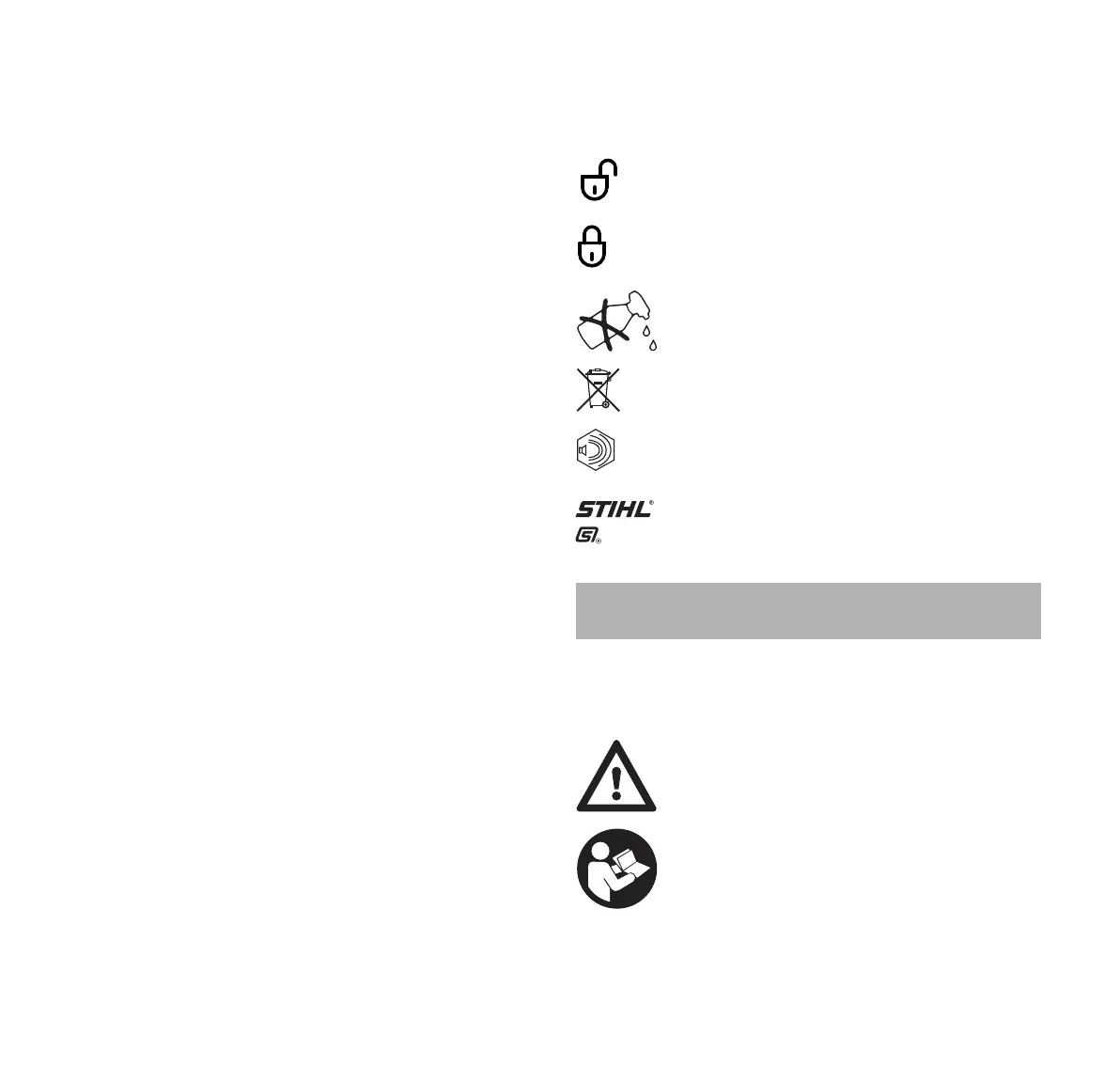

3.3 Symbols
The symbols may appear on the pressure washer, the spray
attachment or the spraying set. Their meaning is as follows:
4.1 Warning symbols
The warning symbols on the pressure washer have the
following meanings:
In this position the retaining latch unlocks the lever.
In this position the retaining latch locks the lever.
Drain the spraying set before transport or secure
it so that it cannot topple over and cannot move.
Do not dispose of product with the household refuse.
Guaranteed sound power level in accordance
with Directive 2000/14/EC in dB(A) so that noise
levels of different products can be compared.
These symbols denote original STIHL spare
parts and original STIHL accessories.
4 Safety Precautions
Observe the safety advice and associated
measures.
Read the Instruction Manual, make sure you
have understood it and keep it in a safe place for
reference.
