Seat, seat belt and SRS airbag
2-31
– CONTINUED –

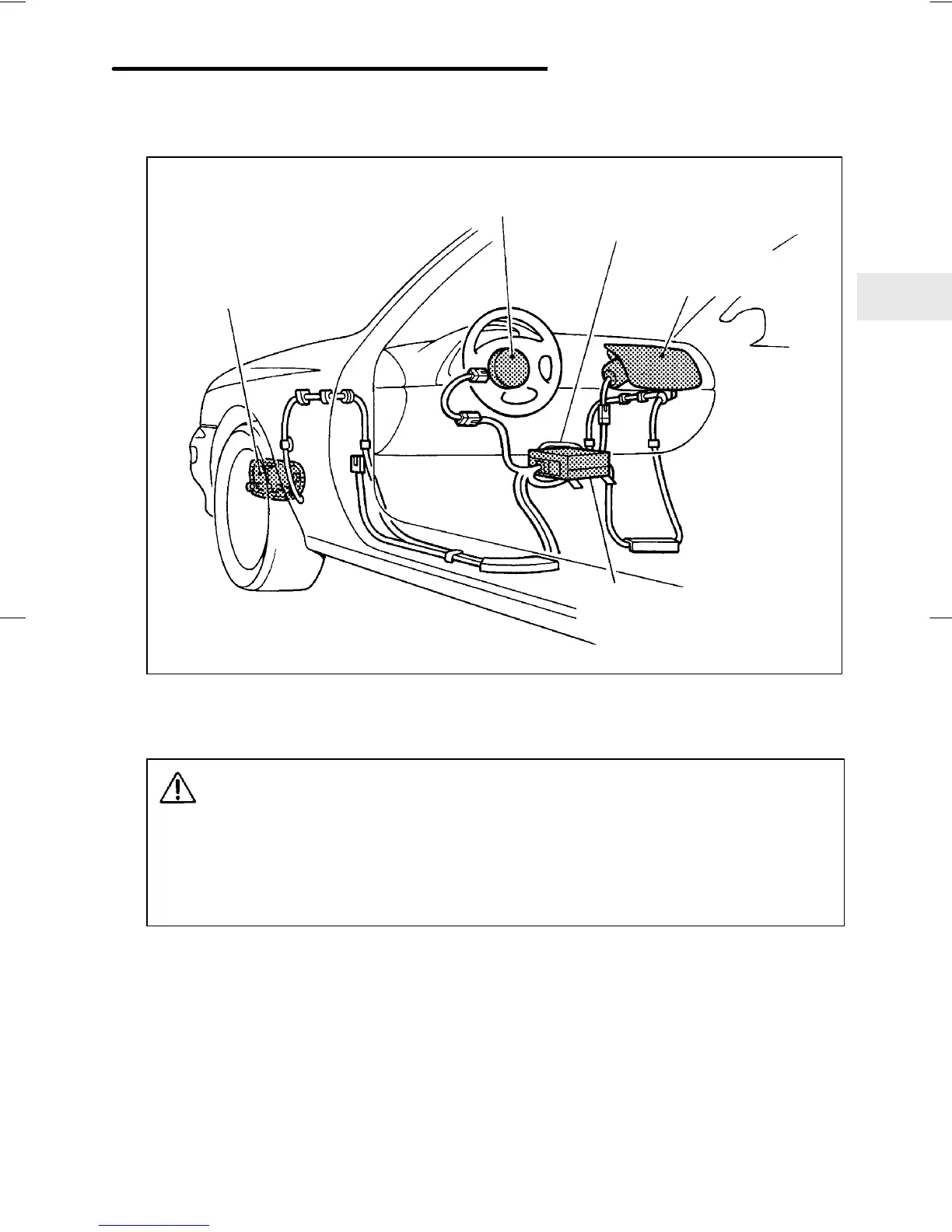

B Components
HG0287
Front sub sensor
(Left hand side)
SRS airbag module
(Driver’s side)
Front sub sensor
(Right hand side)
SRS airbag module
(Passenger’s side)
SRS airbag control module
(including impact sensors)
J SRS airbag operation
CAUTION
Do not touch the SRS airbag system components around the
steering wheel and dashboard with bare hands right after deploy-
ment. Doing so can cause burns because the components can be
very hot as a result of deployment.
