GSF1200AK6/SAK6 (’06-MODEL) 25
PRE-DIAGNOSIS INSPECTION
The mechanical and hydraulic components of the brake system should be inspected prior to performing any
electrical checks. These inspections may find problems that the ABS could not detect; thus, shortening
repair time.
BRAKE
Brake fluid level check (!GSF1200K6/SK6 0B-14)
Brake pad inspection (!GSF1200K6/SK6 0B-14)
Brake fluid circuit air bleeding (!GSF1200K6/SK6 4A-5)
Tire type
DUNLOP (Front: D218F N Rear: D218N)
$
Tire pressure (!GSF1200K6/SK6 0B-15)
Wheel (!GSF1200K6/SK6 2D-6 and 2D-12)

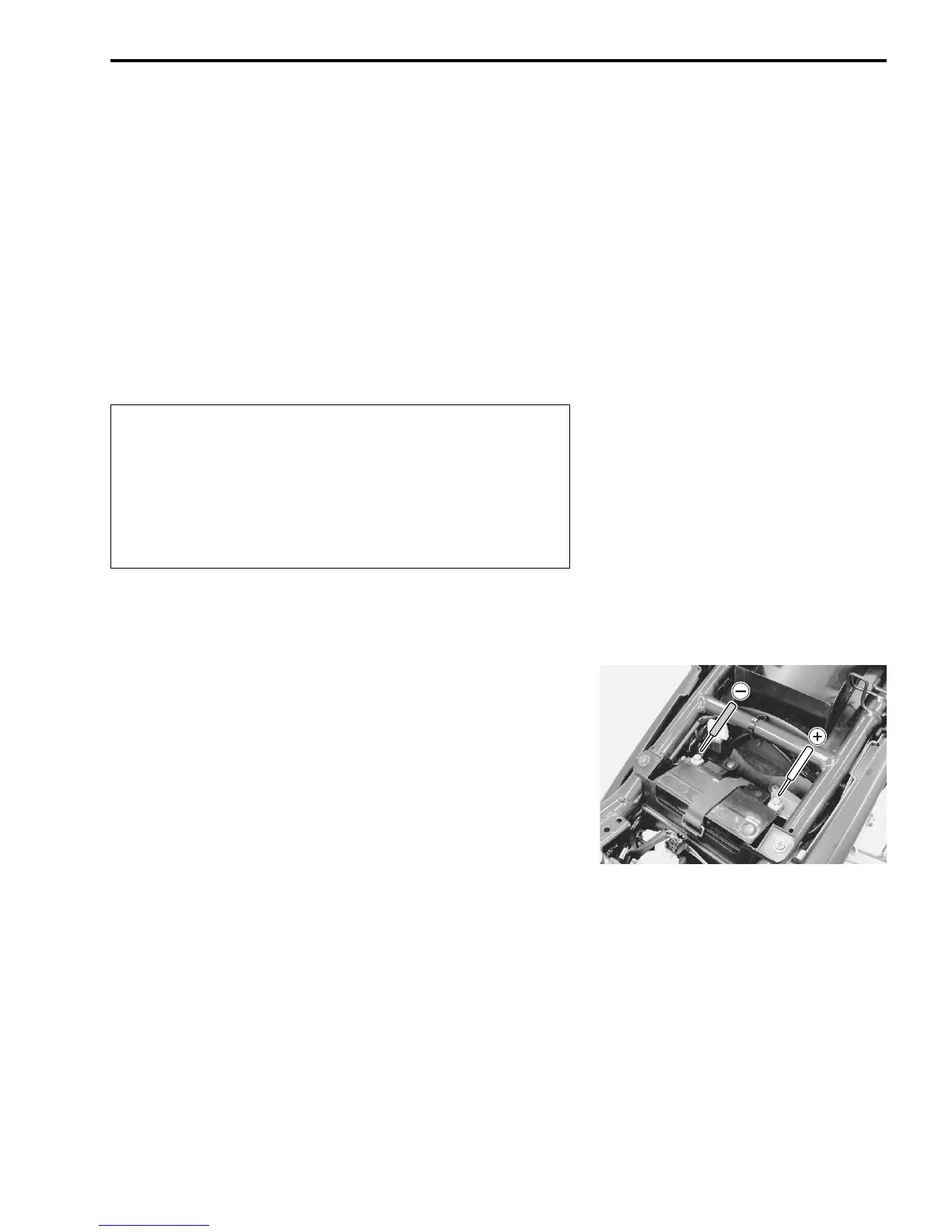

BATTERY
Battery voltage
• Turn the ignition switch to OFF.
• Remove the seat. (!GSF1200K6/SK6 9D-5)
• Measure the voltage between the
+ and
- battery terminals
using the multi-circuit tester.
% Battery voltage: 12.0 V and more
" 09900-25008: Multi-circuit tester set
& Tester knob indication: Voltage (')
If the voltage is less than 12.0 V, charge or replace the battery
and inspect the charging system. (!GSF1200K6/SK6 1J-4)
* The standard tire fitted on this motorcycle is 120/
70ZR17M/C (58W) for front and 180/55ZR17M/C (73W)
for rear. The use of tires other than those specified
may cause instability. It is highly recommended to
use a SUZUKI Genuine Tire.
* Replace the tire as a set, otherwise the DTC “25” may
be stored.
