GSF1200AK6/SAK6 (’06-MODEL) 33
UNDERSTANDING THE DTC (Diagnostic Trouble Code)
A two-digit DTC is shown through the flashing pattern of the ABS indicator light. A number between 1 and 9
is represented by the number of times that the ABS indicator light lights up in interval of 0.4 seconds and the
separation between the tens and ones are indicated by the light staying off for 1.6 seconds. In addition, the
separation between the start code and the DTC is indicated by the light being off for 3.6 seconds. After the
start code is displayed, DTCs appear from the smallest number code.
If no DTCs are memorized, the ABS indicator light keeps lighting up.

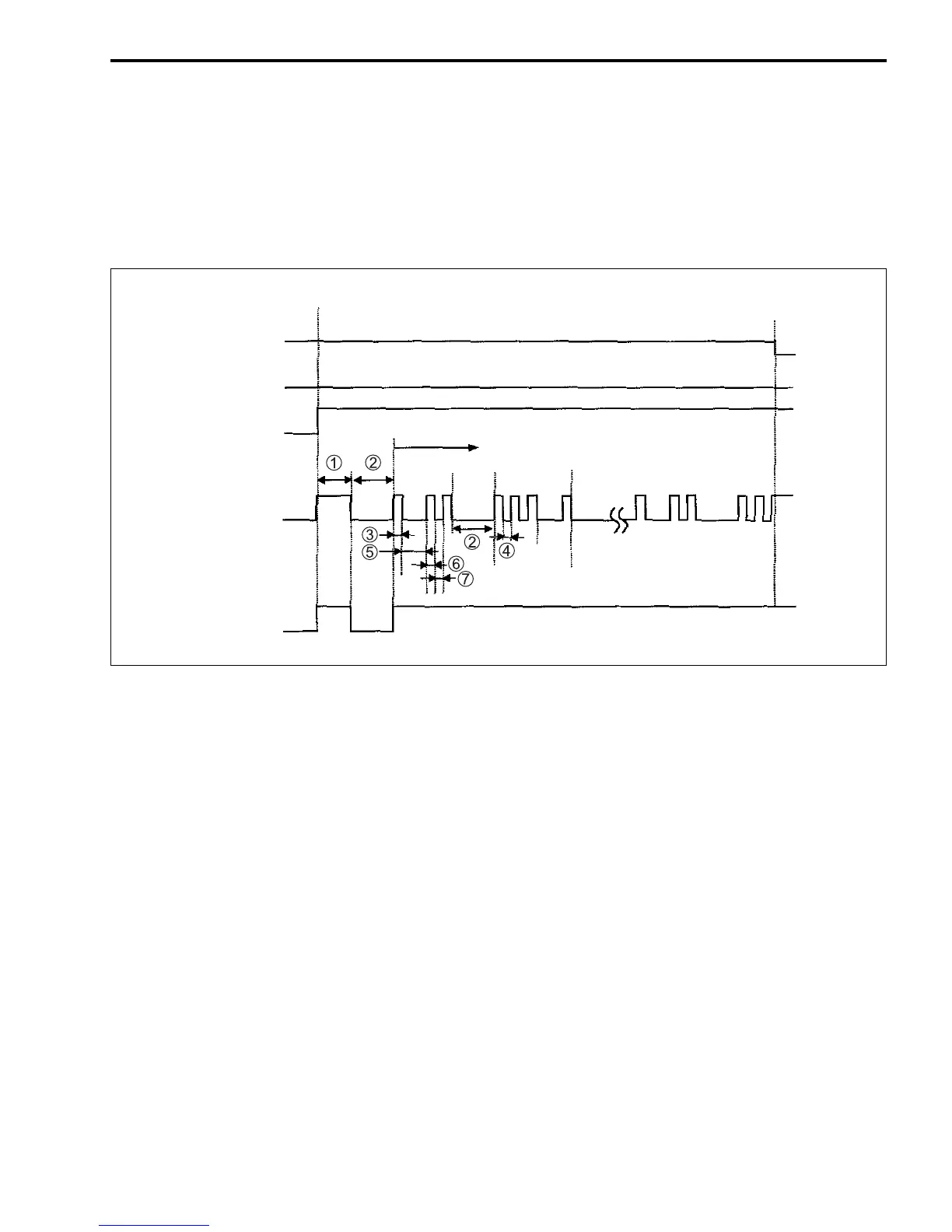

1 Initial minimum light ON time (About 2 seconds)
2 Error code interval (About 3.6 seconds)
3 Main code light ON time (0.4 seconds)
4 Main code light OFF time (0.4 seconds)
5 Main-sub code interval (1.6 seconds)
6 Sub code light ON time (0.4 seconds)
7 Sub code light OFF time (0.4 seconds)
ON
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
Output finish
Output start
Code 12
Code 31
ABS indicator light
(Malfunction exist)
ABS indicator light
(No malfunction exist)
Mode select switch
Brake light switch
Ignition switch
SAMPLE
