Suzuki AN650 Manual

2-8

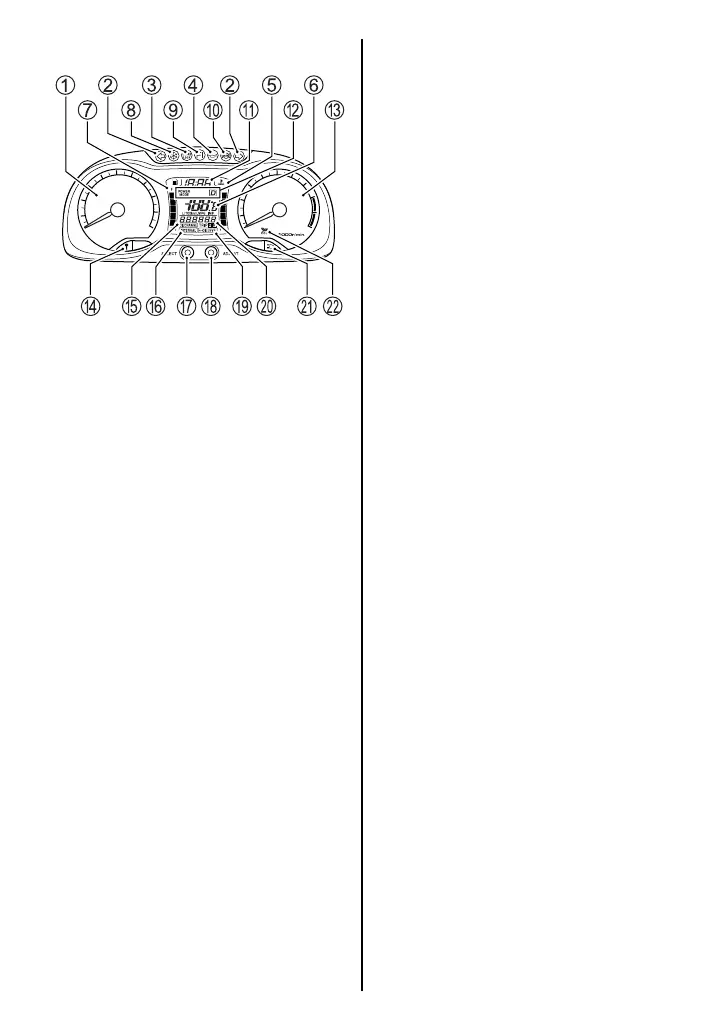

INSTRUMENT PANEL
SPEEDOMETER 1
The speedometer indicates road
speed in km/h or mph.
If the meter needle does not point to
zero, follow the procedure below to
reset the meter.
1. Press and hold the ADJUST but-
ton H and turn on the ignition
switch.
2. Hold the ADJUST button H for 4
seconds.
TURN SIGNAL INDICATOR LIGHT
“” 2
When the turn signals are being oper-
ated either to the right or to the left,
the indicator light will blink intermit-
tently.
NOTE: If a turn signal light is not
operating properly due to bulb fila-
ment or circuit failure, the indicator
will blink quickly to warn the rider of
the existence of a problem.
BRAKE LOCK INDICATOR LIGHT
3
This light comes on when the parking
brake is applied and the ignition
switch is in the “ON” position.

Suzuki AN650 Specifications

General

Manufacturer	Suzuki
Model	AN650
Displacement	638cc
Fuel System	Fuel injection
Maximum Torque	62 Nm (6.3 kgf-m) @ 6, 400 rpm
Fuel Capacity	15 L
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70
Rear Tire	160/60
Overall Length	2, 285 mm
Wheelbase	1, 585 mm
Ground Clearance	125 mm
Transmission	Continuously Variable Transmission (CVT)
