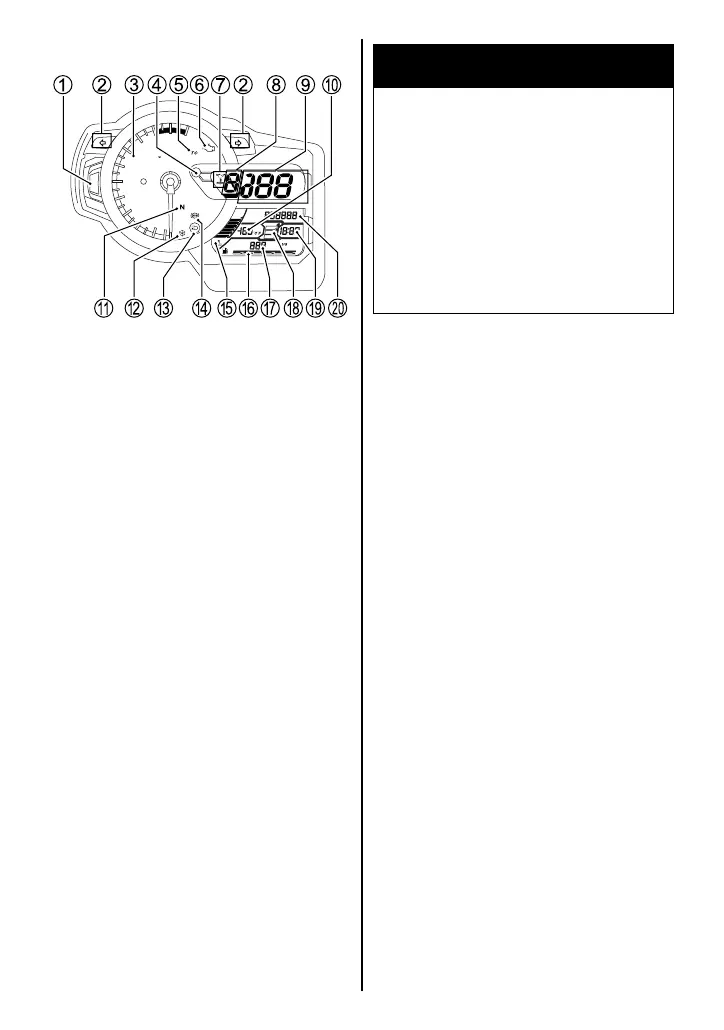

INSTRUMENT PANEL
The malfunction indicator light 6,
freeze indicator light B, coolant
temperature indicator/oil pres-
sure indicator light 4, ABS indi-
cator light D, traction control
system indicator light 5, LCD’s
and tachometer needle work as
follows to confirm their function
when the ignition switch is turned
to the “ON” position.
• The malfunction indicator light
6 and freeze indicator light B
come on for 2 seconds.
• The tachometer needle moves
to the full scale position and
returns to the home position.
• All LCD segments appear and
then show the normal display.
Turn Signal Indicator Light
“
” 2
When the turn signals are being
operated either to the right or to
the left, the indicator light will blink
intermittently.
NOTE: If a turn signal light is not
operating properly due to bulb fila-
ment or circuit failure, the indica-
tor light blinks more quickly to
notify the rider of the existence of
a problem.
H
GEAR
C
EF
mph
TRIP
RANGE
ADJ
MPG
km/L/100km
V
AVG
AIR
12
1
OFF
TC
2
1
2
km/h
2
11
1000 r/min
1210
0
3
4
5
6
7
8
9
1
WARNING
Changing the display while
riding can be hazardous.
Removing a hand from the han-
dlebars can reduce your ability
to control the motorcycle.
Never change the display while
riding. Keep both hands on the
handlebars.
