Suzuki DL1000A 2018 User Manual

7-7

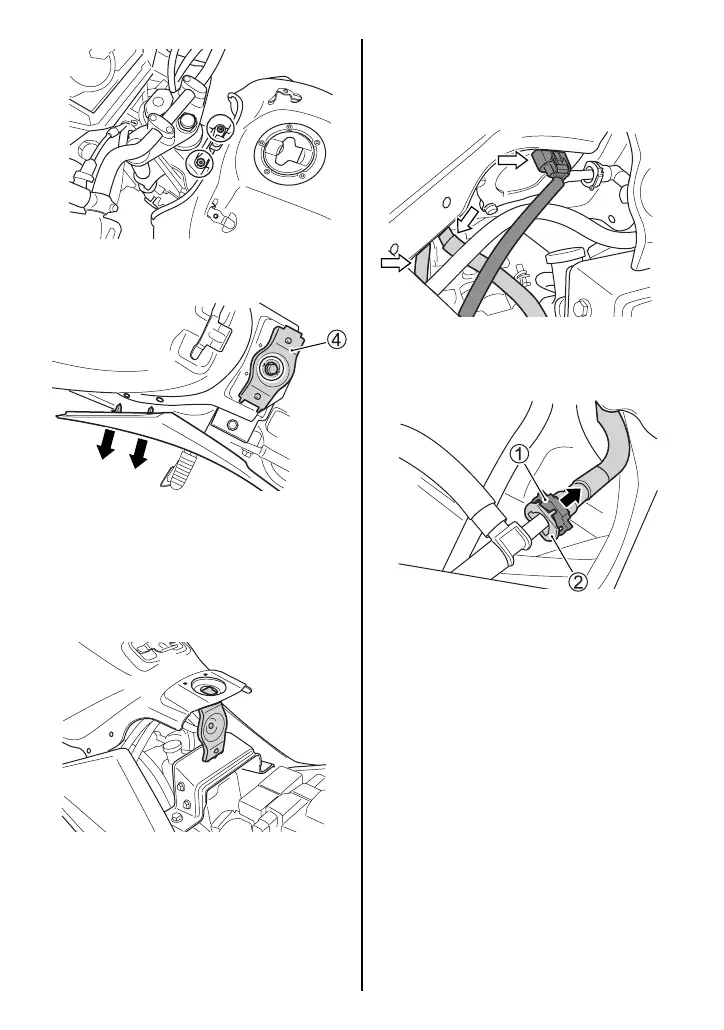

13.Remove the bolts.
14.Remove the hooks and
remove the bolt. Remove the
prop 4 and rubber cushion.
15.Remove the rubber cushion
from the prop 4.
16.Support the fuel tank with the
prop 4.
FUEL TANK REMOVAL
Lift the fuel tank by referring to the
FUEL TANK LIFT section.
1. Disconnect the hoses and
coupler.
2. Pull the retainer 1.
3. Disconnect the fuel feed hose
joint 2 from fuel pipe.
