9-13

INSPECTION AND MAINTENANCE

66J21-03E

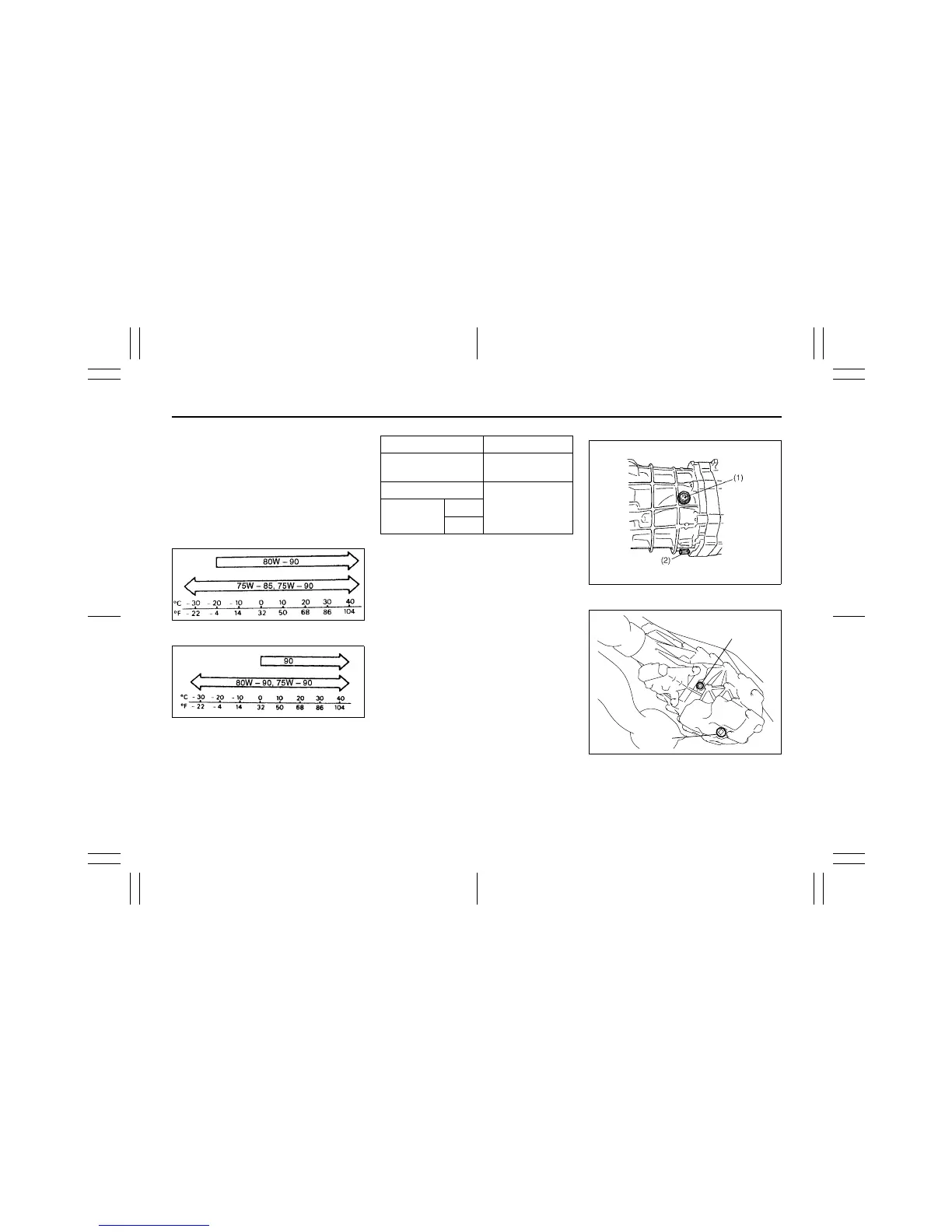

Gear Oil

Specified Gear Oil

When replacing gear oil, use gear oil with

the appropriate viscosity and grade as

shown in the charts below. We highly rec-

ommend you use SAE 75W-90 gear oil

(SAE 80W-90 for front differential oil, rear

differential oil and transfer gear oil).

Transmission/Extension case

54G095

Differential/Transfer case

65D594

Manual transmission

52D087

Transfer case

66J005

(1) Oil filler and level plug

(2) Oil drain plug

API GRADE

Transmission/

Extension case

GL-4

Transfer case

GL-5

(Hypoid gear oil)

Differential

Front

Rear

(1)

(2)

Gear Oil: 6, 10
