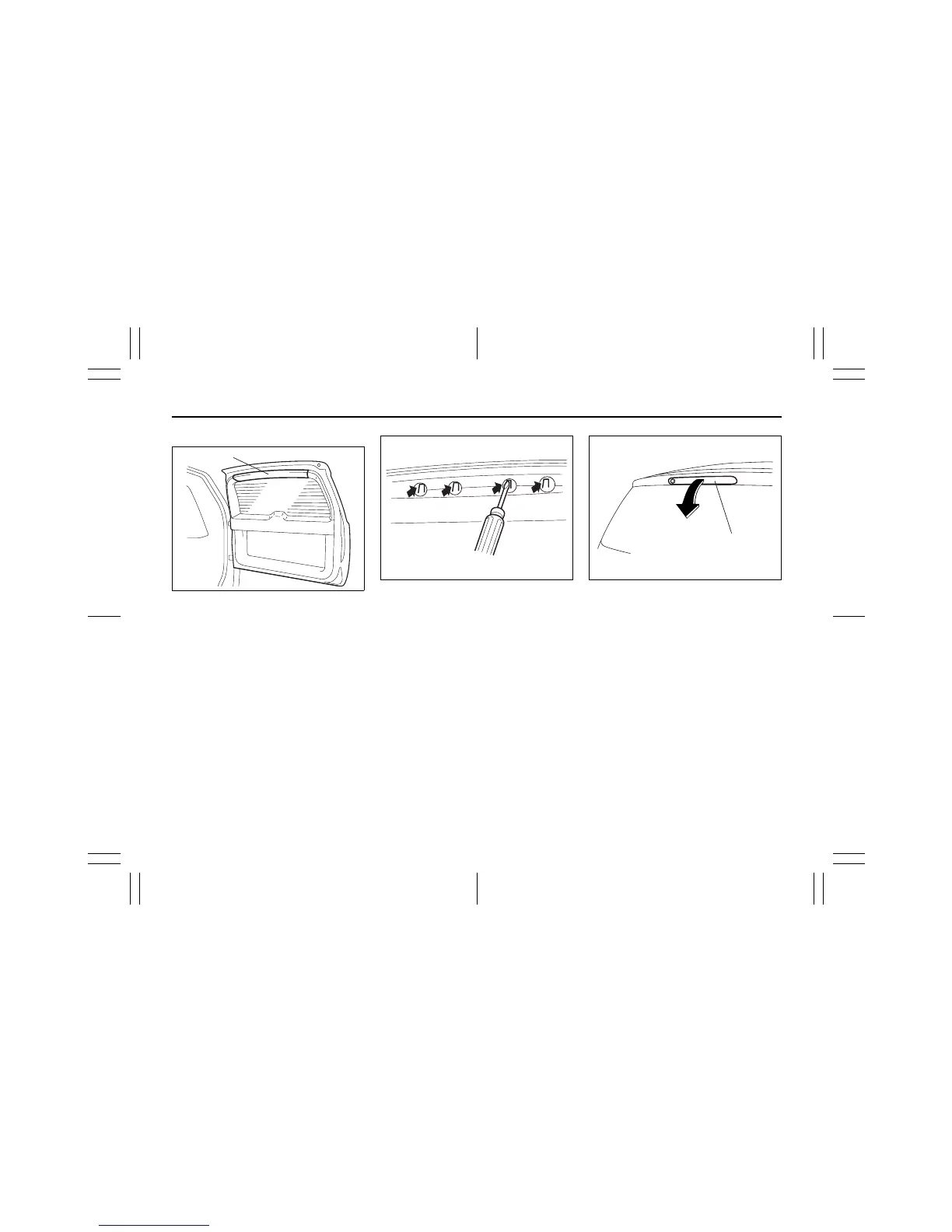

High-mount stop light (if equipped)

64J181

To remove a high-mounted stop light hous-

ing the following procedure:

1) Open the rear door, and remove the

door trim (1) as shown in the illustra-

tion.

64J182

2) Release the claws of the light housing

by the flat head etc. through the service

holes as shown in the illustration.

64J183

3) Close the rear door. Remove a high-

mounted stop light housing (2) from the

rear door.

(1)

(2)
