6-30

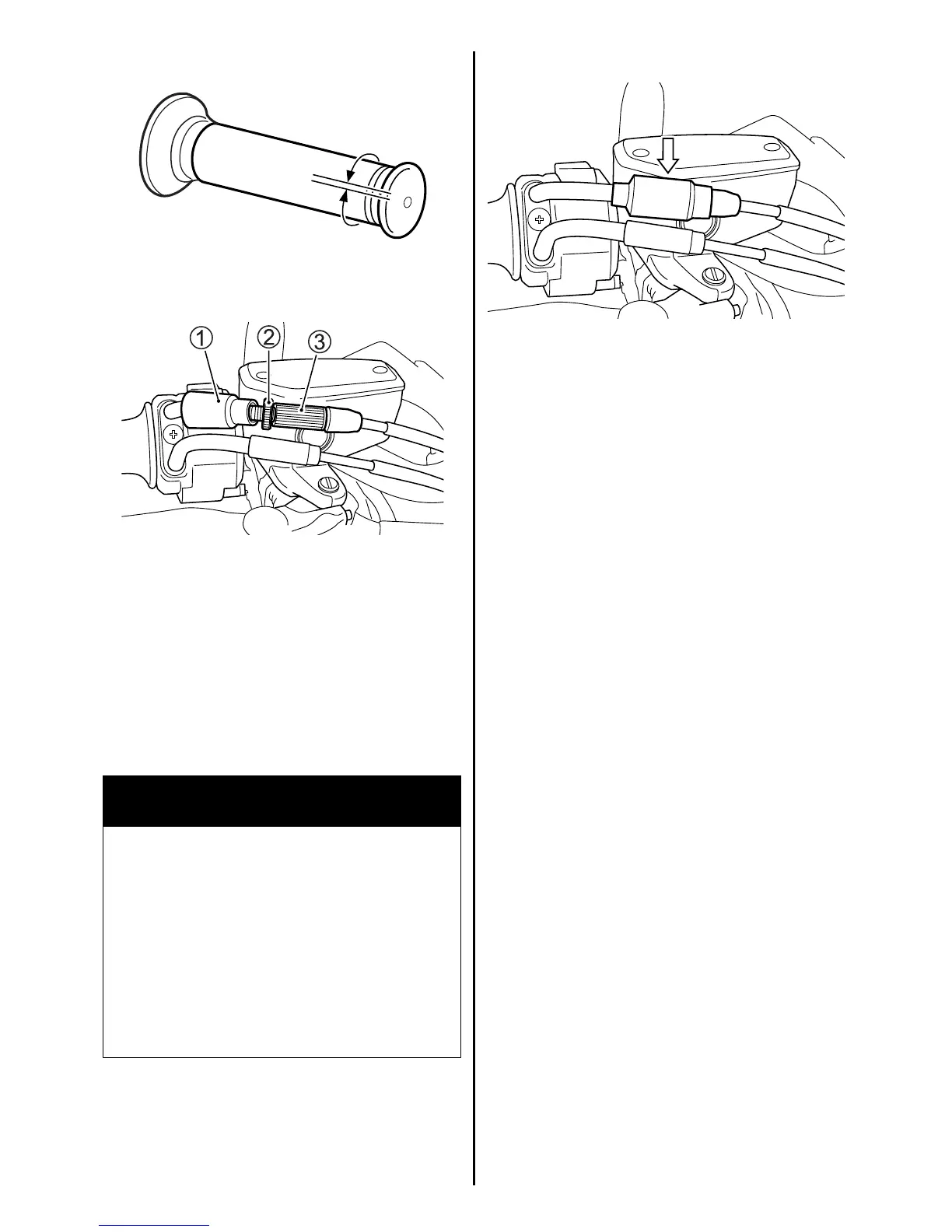

THROTTLE CABLE ADJUSTMENT
2.0 – 4.0 mm
(0.08 – 0.16 in)
To adjust the cable play:
1. Remove the boot 1.
2. Loosen the lock nut 2.
3. Turn the adjuster 3 so that the
throttle grip has 2.0 – 4.0 mm
(0.08 – 0.16 in) play.
4. Tighten the lock nut 2.
5. Reinstall the boot 1.
THROTTLE CABLE BOOTS
The throttle cable has a boots. Check
that the boots are fit securely. Do not
apply water directly to the boots when
washing. Wipe off dirt from the boots
with a wet cloth when the boots are
dirty.
 WARNING
Inadequate throttle cable play can
cause engine speed to rise sud-
denly when you turn the handle-
bars. This can lead to loss of
control and an accident.
Adjust the throttle cable play so
that engine idle speed does not
rise due to handlebar movement.

Suzuki GSX-S1000 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	73.4 mm x 59.0 mm
Compression Ratio	12.2:1
Fuel System	Fuel injection
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	190/50ZR17M/C (73W), tubeless
Displacement	999 cm3
Overall Length	2115 mm
Overall Width	810 mm
Overall Height	1080 mm
Wheelbase	1460 mm
Ground Clearance	140 mm
Seat Height	810 mm
Curb Weight	214 kg
Fuel Tank Capacity	19 L (5.0 US gal)
