Suzuki GSX-S1000 User Manual

6-60
FUSE LIST
• 30A MAIN fuse protects all electri-
cal circuits.
• 10A HEAD-HI fuse protects the
headlight high beam and speed-
ometer.
• 10A HEAD-LO fuse protects the
headlight low beam.
• 10A IGNITION fuse protects the
cooling fan relay, ISC, ignition
coils, starter relay, fuel pump relay,
solenoid, ECM, oxygen sensor,
side stand relay and Immobilizer
(if equipped).
• 10A SIGNAL fuse protects the
horn, turn signal lights, position
lights, taillight, stop lamp, license
light and speedometer.
• 10A FUEL fuse protects the
speedometer, fuel injectors, fuel
pump and ECM.
• 15A FAN fuse protects the cooling
fan motor.
(GSX-S1000A/FA)
• 20A ABS MOT fuse protects ABS
system.
• 15A ABS VALVE fuse protects
ABS system.
HANDLEBAR FITTING

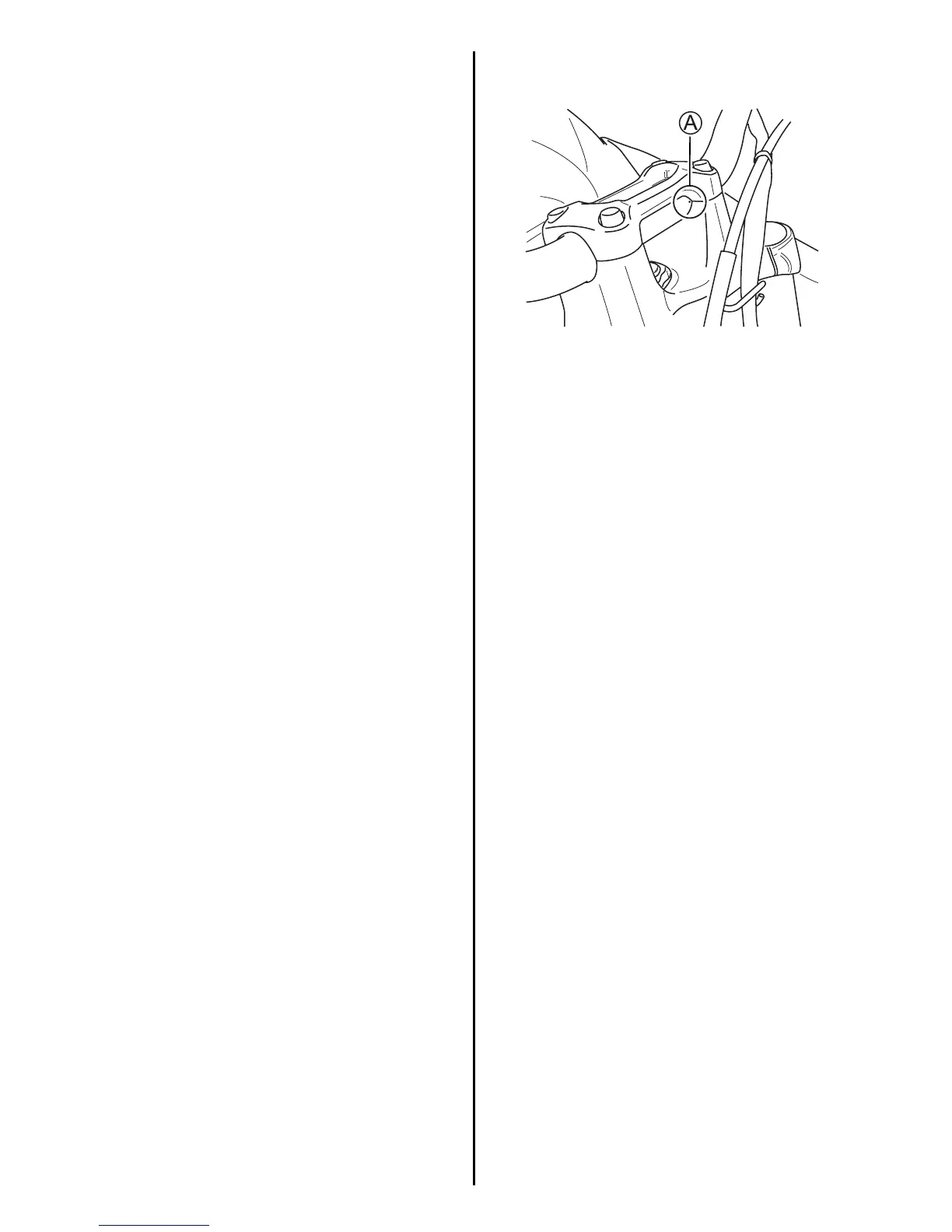

Align the dot mark on the handlebar
with the mating surface A.

Suzuki GSX-S1000 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	73.4 mm x 59.0 mm
Compression Ratio	12.2:1
Fuel System	Fuel injection
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	190/50ZR17M/C (73W), tubeless
Displacement	999 cm3
Overall Length	2115 mm
Overall Width	810 mm
Overall Height	1080 mm
Wheelbase	1460 mm
Ground Clearance	140 mm
Seat Height	810 mm
Curb Weight	214 kg
Fuel Tank Capacity	19 L (5.0 US gal)
