7-23
INSPECTION AND MAINTENANCE
73SB7-01E
Drive belt
Check that the drive belt tension is correct.
If the belt is too loose, insufficient battery
charging, engine overheating, poor power
steering, poor air conditioning, or exces-
sive belt wear can result. When you press
the belt with your thumb midway between
the pulleys, there should be a deflection
according to the following chart.
The belts should also be examined to
ensure that they are not damaged.
If you need to replace or adjust the belt,
have it done by your SUZUKI dealer.
K12C and K12D engine models
The drive belts tension is adjusted auto-
matically.

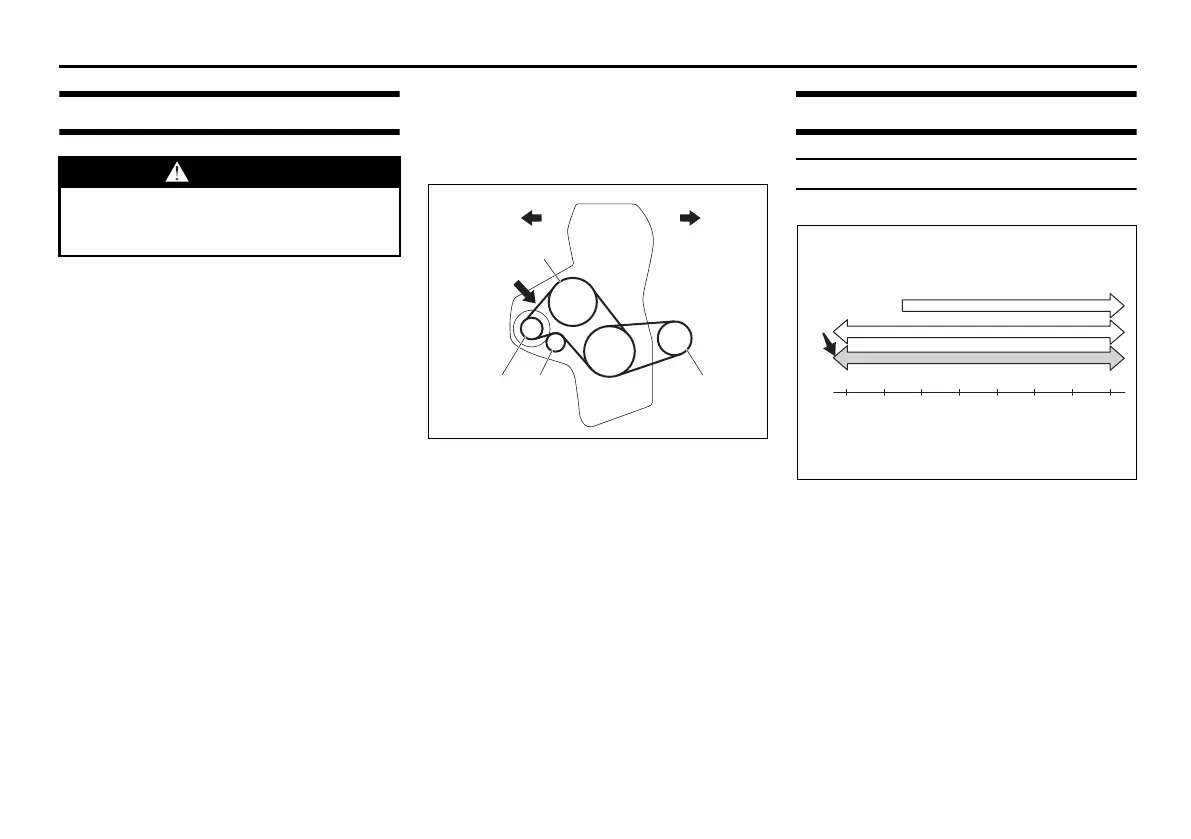

K12M engine models
75RM359
(1) Front
(2) Rear
(3) Generator
(4) Water pump
(5) Air conditioner compressor
(6) Tensioner pulley
Drive belt deflection
(100 N (10 kg, 22 lbs) press)
(a) New:
3.5 – 4.2 mm (0.14 – 0.16 in.)
Readjustment:
5.2 – 6.0 mm (0.20 – 0.24 in.)
Engine oil and filter
Specified oil
K12C engine models
52RS004
(1) Preferred
Check that the engine oil you use comes
under the quality classification as listed
below:
• API SL, SM, SN, SP
• ILSAC GF-3, GF-4, GF-5, GF-6
Select the appropriate oil viscosity accord-
ing to the above chart.
SAE 0W-16 (1) is the best choice for good
fuel economy and good starting in cold
weather.
WARNING
When the engine is running, keep
hands, hair, clothing, tools, etc. away
from the moving fan and drive belts.
(a)
(4)
(2) (1)
(3) (6) (5)
C
F
o
o
-30
-22
-20
-4
-10
14 32 50 68 86 104
010203040
5W-30
(1)
0W-20
0W-16
