7-34
INSPECTION AND MAINTENANCE
73SB7-01E
75RM370

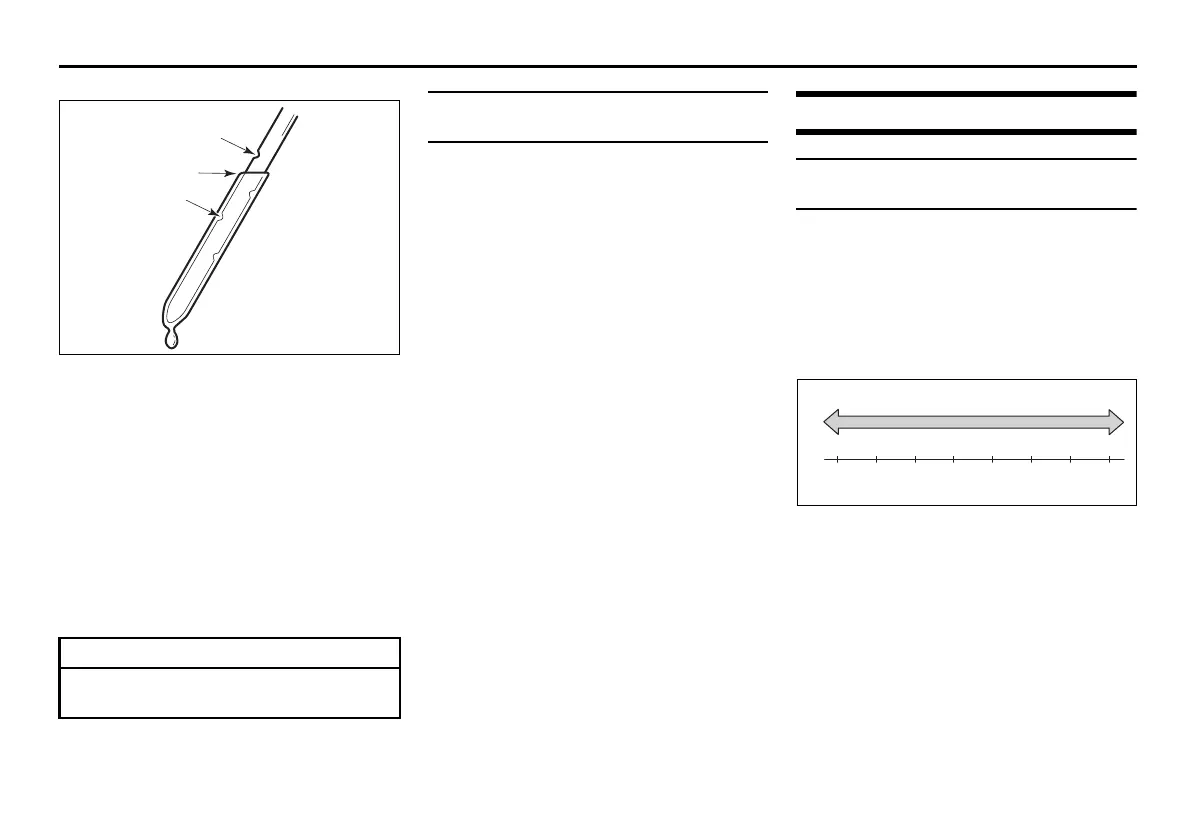

(1) FULL
(2) LOW
(3) The lowest point = Fluid level
5) The handle of the CVT fluid dipstick is
colored orange for easy identification.
Remove the dipstick, clean it and push
it back in until the cap seats. Then pull
out the dipstick.
6) Check both sides of the dipstick, and
read the lowest level. The fluid level
should be between the two marks on
the dipstick.
Deterioration checking or changing
oil
Since special procedures, materials and
tools are required to check the deteriora-
tion of CVT oil or change, it is recom-
mended that you trust this job to your
authorized SUZUKI dealer.
Gear oil
Manual transmission oil / transfer
oil (4WD) / rear differential oil (4WD)
When adding gear oil, use gear oil with the
appropriate viscosity and grade as shown
in the chart below.
We highly recommend you use “SUZUKI
GEAR OIL 75W” for manual transmission.
Manual transmission oil
54P120706
NOTICE
After checking or adding oil, be sure
to insert the dipstick securely.
(3)
(1)
(2)
C
H
C
F
o
o
-30
-22
-20
-4
-10
14 32 50 68 86 104
010203040
75W
