DISASSEMBLY AND ASSEMBLY 4-55

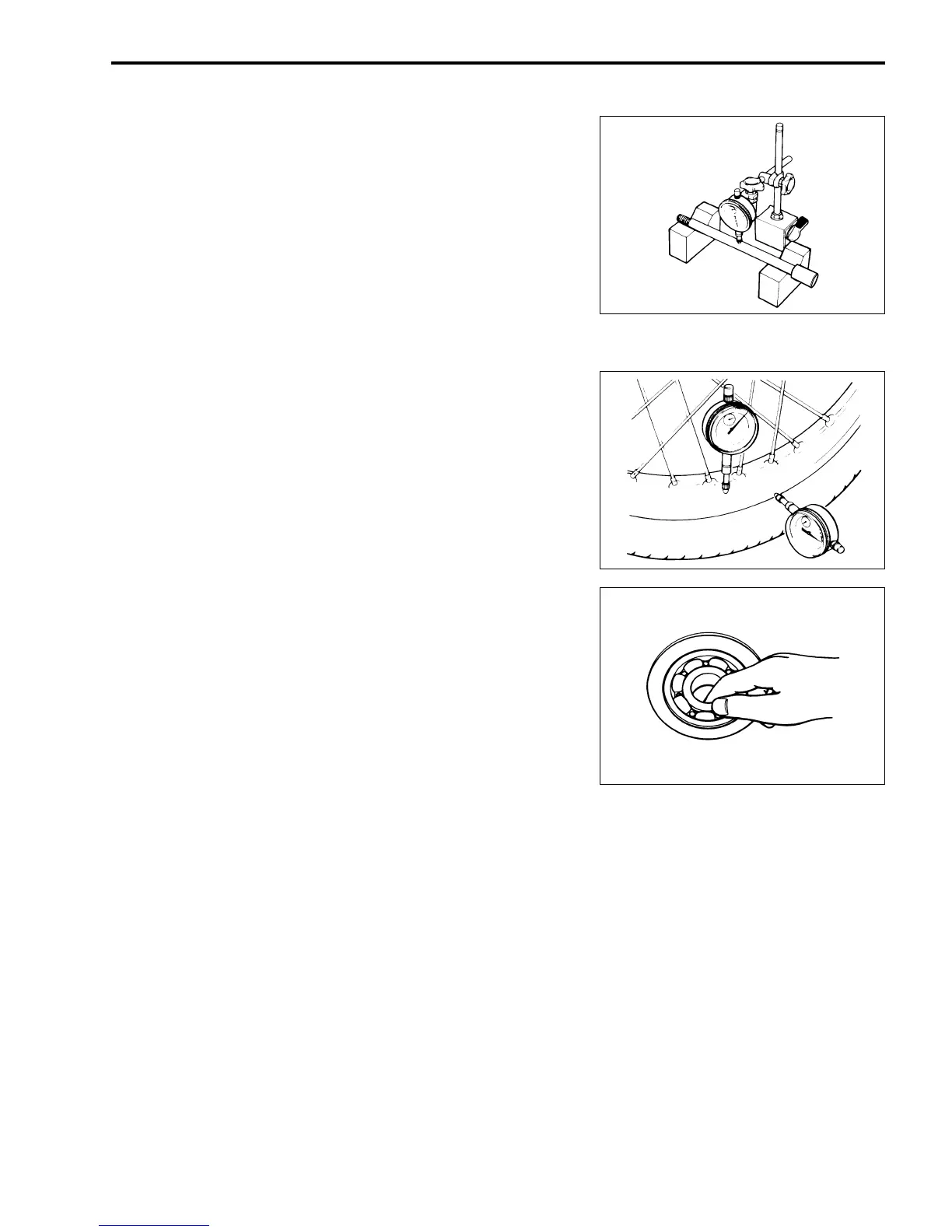

Axle Shaft
• Support the axle shaft with the V blocks and measure the axle
shaft runout.
• If the runout exceeds the limit, replace the axle shaft with a
new one.
Axle runout
Service Limit: 0.25 mm (0.010 in)
09900-20607: Dial gauge
09900-20701: Dial gauge chuck
09900-21304: V blocks
Wheel Rim
• Measure the wheel rim runout with the dial gauge.
• If the runout exceeds the limit, replace the bearings or wheel.
Service Limit: 2.0 mm (0.08 in) ... axial and radial
09900-20607: Dial gauge
09900-20701: Dial gauge chuck
Wheel Bearing
• Turn the inner race by finger and inspect it for smooth move-
ment.
• Inspect for bearing damage.
• If any defects are found, replace the bearing with a new one.
