4-56 DISASSEMBLY AND ASSEMBLY

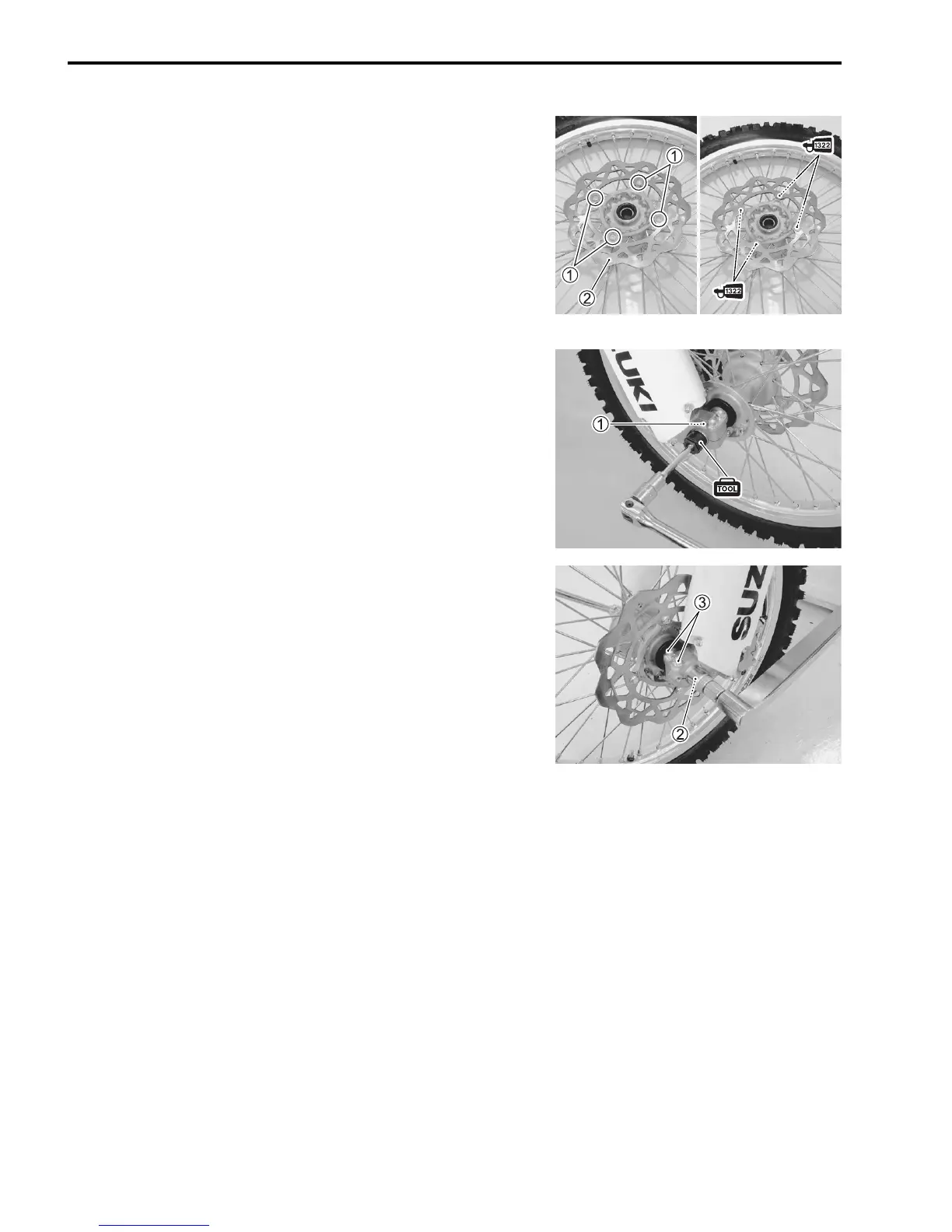

DISK PLATE REPLACEMENT
• Remove the disk plate 2 by removing their bolts 1.
• Apply THREAD LOCK SUPER to the disk plate bolts 1.
99000-32110: THREAD LOCK SUPER “1322”
or equivalent
• Tighten the disk plate bolts 1 to the specified torque.
Disk plate bolt: 11 N·m (1.1 kgf-m, 8.0 lbf-ft)
INSTALLATION
• Hold the front axle shaft 1 with the special tool and tighten
the front axle nut temporarily.
09940-34581: Front fork assembling attachment (F)
• Remove the block from under the chassis tube and move the
front forks up and down several times.
• Tighten the front axle nut 2 to the specified torque.
Front axle nut: 35 N·m (3.5 kgf-m, 25.5 lbf-ft)
• Tighten the left and right axle holder bolts 3 to the specified
torque.
Axle holder bolt: 18 N·m (1.8 kgf-m, 13.0 lbf-ft)
