47
10.6) ADJUSTMENT OF NOISE CONTROLLER FOR PRESSER FOOT

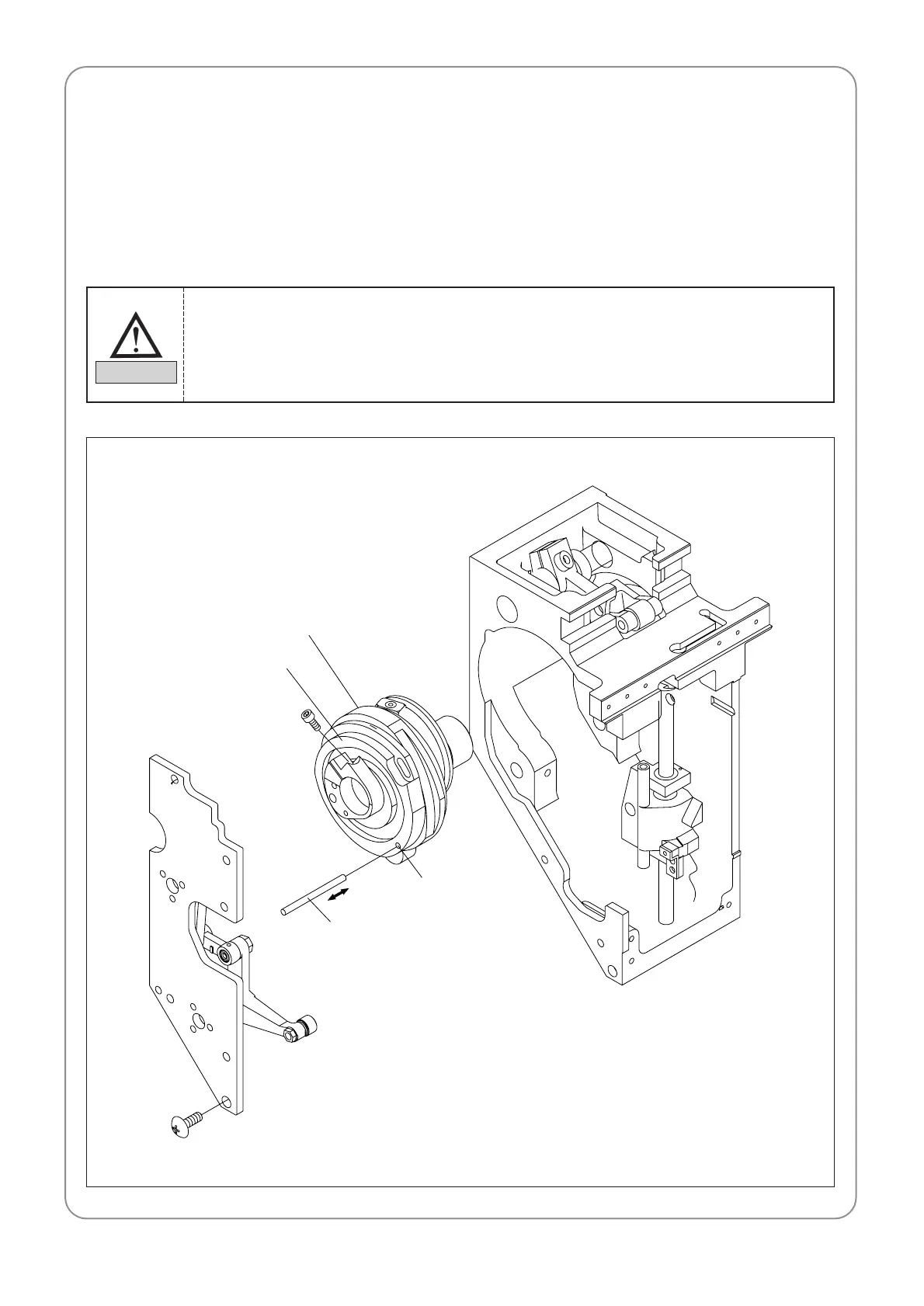

10.6.1) Assembly of Presser Foot Moving Cam
① Set the main shaft at 178° and pass 2 assembly standard pins (ф3) through the assembly standard holes (ф3) of
the presser foot moving cam and insert them into the holes (ф3) of assembly standard holes as in the figure.
② Move the presser foot moving cam to the place where the assembly standard pins can smoothly move left and
right, and tightly fasten three tightening screws (M4×L35).
Thread Take-up Lever Moving Cam
Presser Foot Moving Cam
Pin Hole (ф3)
Assembly Standard Pin (ф3)
1) Even after the three tightening screws are assembled, the assembly standard pins
should be able to smoothly move left or right.
2) The assembly standard pins are not sold to retail consumers.
3 If it is inevitable to change the location of the cam, please contact the nearest
istributor's shop
CAUTION
To Next Page
