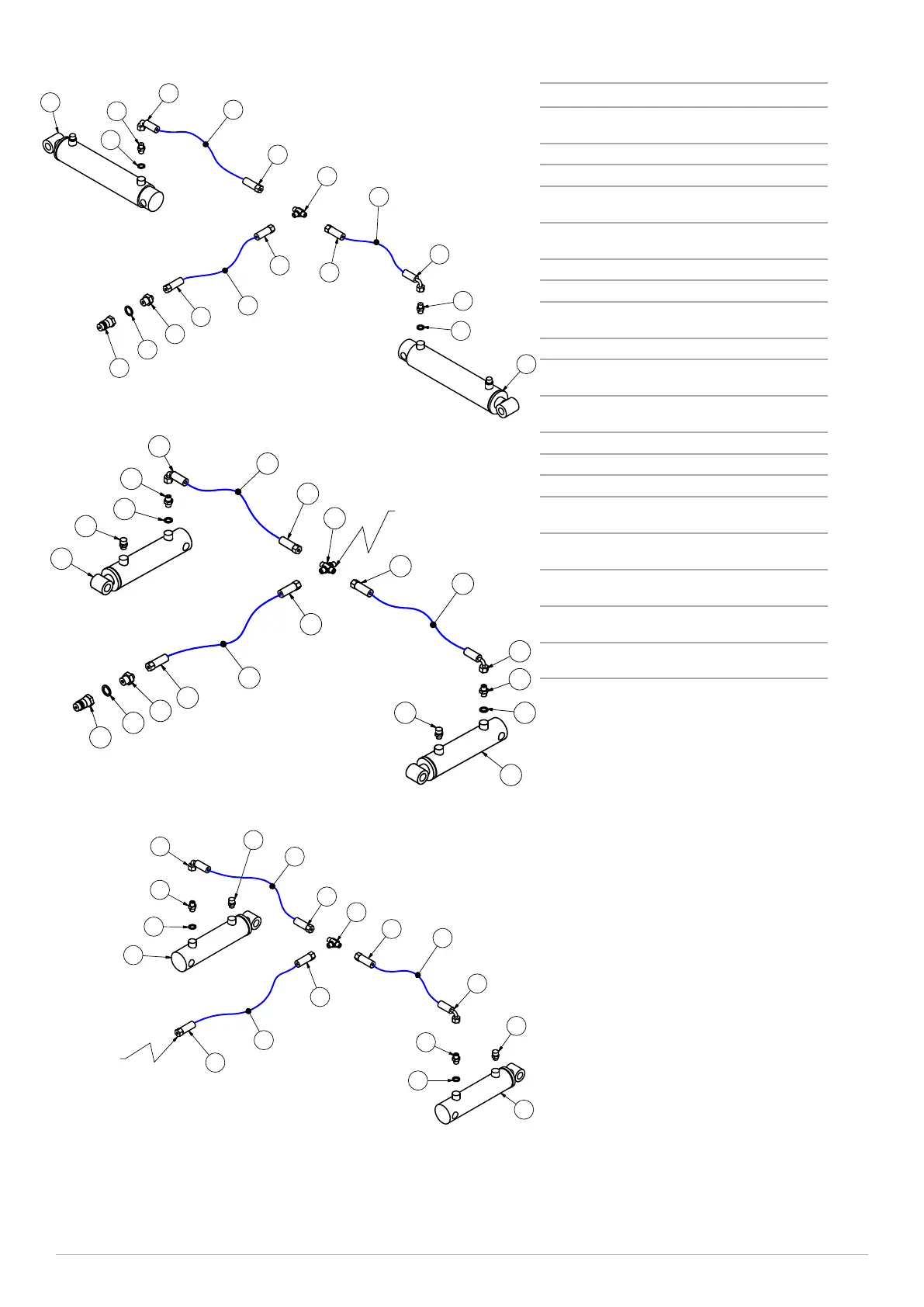

MJ70-410T/550T - Hydraulics - Axle with no brakes
Item Part No. Description Qty
1 14CROSS 1/4" M/M/M/M
CONNECTOR
1
2 19RM-WRAM WING LIFT RAM 2
3 68-1132-00 1/4" VALVE BREATHER 4
4 CRP1400 1/4" CRIMP
(STRAIGHT)
12
5 CRP1490 1/4" CRIMP SWEPT
(90 Deg)
6
6 EDOW12 1/2" DOWTY WASHER 2
7 EDOW14 1/4" DOWTY WASHER 6
8 EMM12-14 1/2-14" M/M
CONNECTOR
2
9 EMM14 1/4" M/M CONNECTOR 4
10 EMM14RV 1/4" M/M RESTRICTOR
(DIA 1mm)
2
11 EMMMT14 1/4" M/M/M
CONNECTOR
2
12 MJ70-TARAM TRAILED AXLE RAM 4
13 MJ70T-HOSE A 1/4"x2550mm Str to Str 2
14 MJ70T-HOSE-B 1/4"x500mm Str to Str
1
15 MJ70T-HOSE-C 1/4"x860mm Str to
Block 90
2
16 MJ70T-HOSE-D 1/4"x560mm Str to
Block 90
2
17 MJ70T-HOSE-E 1/4"x530mm Str to
Block 90
1
18 MJ70T-HOSE-F 1/4"x840mm Str to
Block 90
1
19 QRM12 1/2" QUICK RELEASE
MALE
2
Wings
Drawbar
Axle
www.major-equipment.com 63
13
5
4
4
4
4
5
11
7
10
19
6
8
10
7
RIGHT WING "UP"
LEFT WING "UP"
15
15
2
2
LEFT DRAWBAR
"LIFT"
RIGHT DRAWBAR
"LIFT"
19
6
8
4
1
4
4
4
5
9
73
3
7
9
5
16
16
13
12
12
TO 'AXLE' RAMS.
RIGHT AXLE "LIFT"
LEFT AXLE "LIFT"
4
4
11
4
4
5
9
7
3
5
9
7
3
14
17
18
12
12
FROM 'DRAWBAR'
CROSS FITTING.
