SYMEO LPR-1D24 User Manual

SYMEO Local Positioning Radar System
LPR®-1D24
LPR®-1D24 Station – Overview and Mounting
Specification of the Connectors
Copyright © SYMEO GmbH 2015
LPR-1D24_Users_Manual_FCC-IC-Edition_EN.docx Page 13 of 34
5 Specification of the Connectors
5.1 Overview of Connections

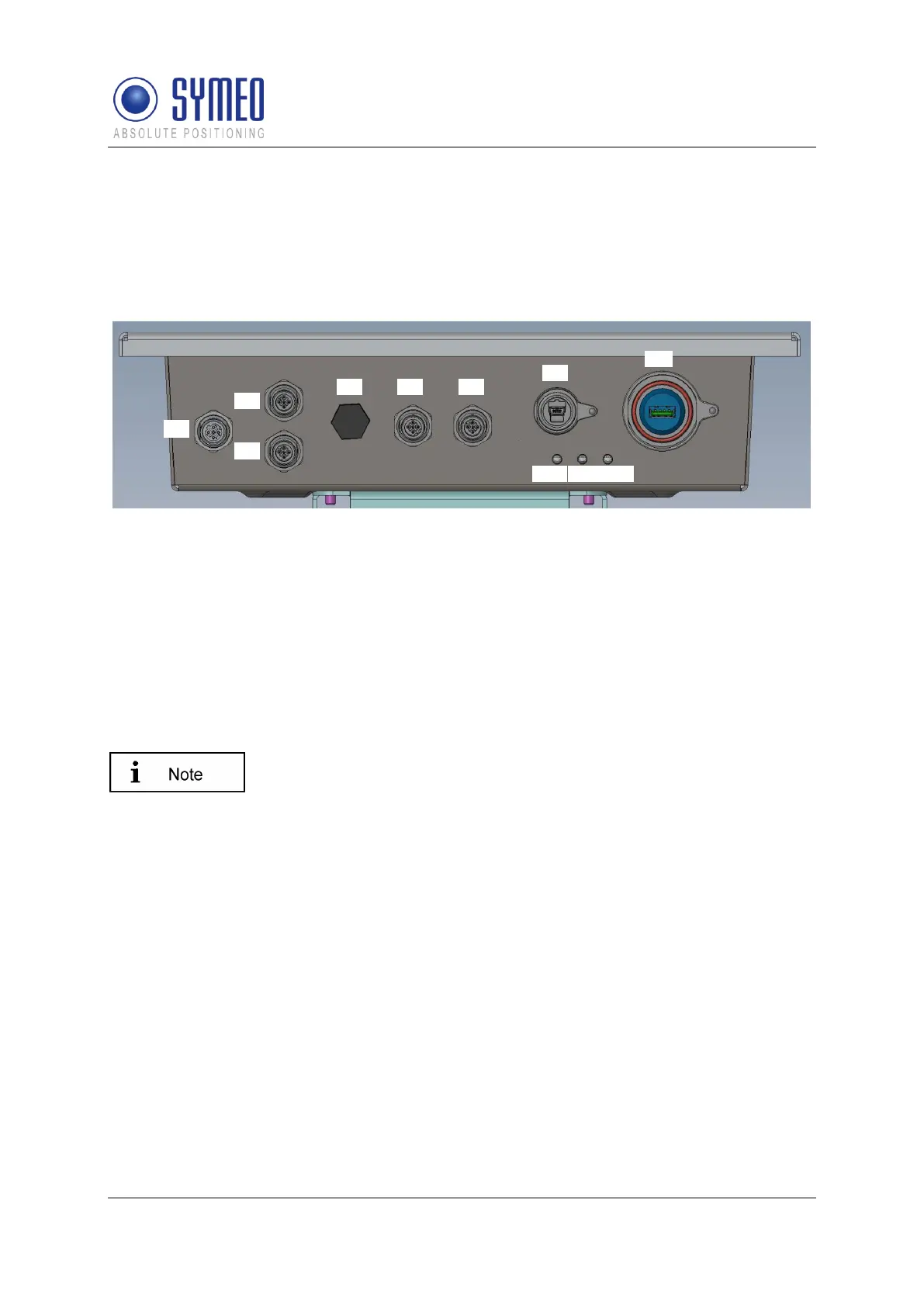

All connectors are fixed externally to the housing. Figure 4 shows the connections in detail.
B1
B2
B5
B7
B6
B4
B3
B9
B1
B2
B5
B7
B6
B4
B3
B11B10B9
B8
Figure 4: LPR
®
-1D24 Connectors
B1: Ethernet
B2: Can-Bus IN/ Profibus IN
B3: Can-Bus OUT/ Profibus OUT/ Termination (optional)
B4: Pressure equalization membrane
B5: Serial interface RS422/RS485 / Relays (optional)
B6: Power supply
B7: Mini-USB
B8: USB – A (Logging)
B9 – B11: Status LEDs
On the following pages you will find the connector type, the pin
assignment, the product code and the Symeo order number. For more
information, please see the data sheets on the attached data carrier.
