SYMEO LPR-1D24 User Manual

SYMEO Local Positioning Radar System
LPR®-1D24
LPR®-1D24 Station – Overview and Mounting
Specification of the Connectors
Copyright © SYMEO GmbH 2015
LPR-1D24_Users_Manual_FCC-IC-Edition_EN.docx Page 15 of 34
5.3.1 Plugs
Recommended connector:
 Connector Ethernet M12
o SACC-M12MSD-4CON-PG 7-SH – 1521258
Cable diameter: 4 – 6 mm (PG7)
Symeo order number: MTE101768

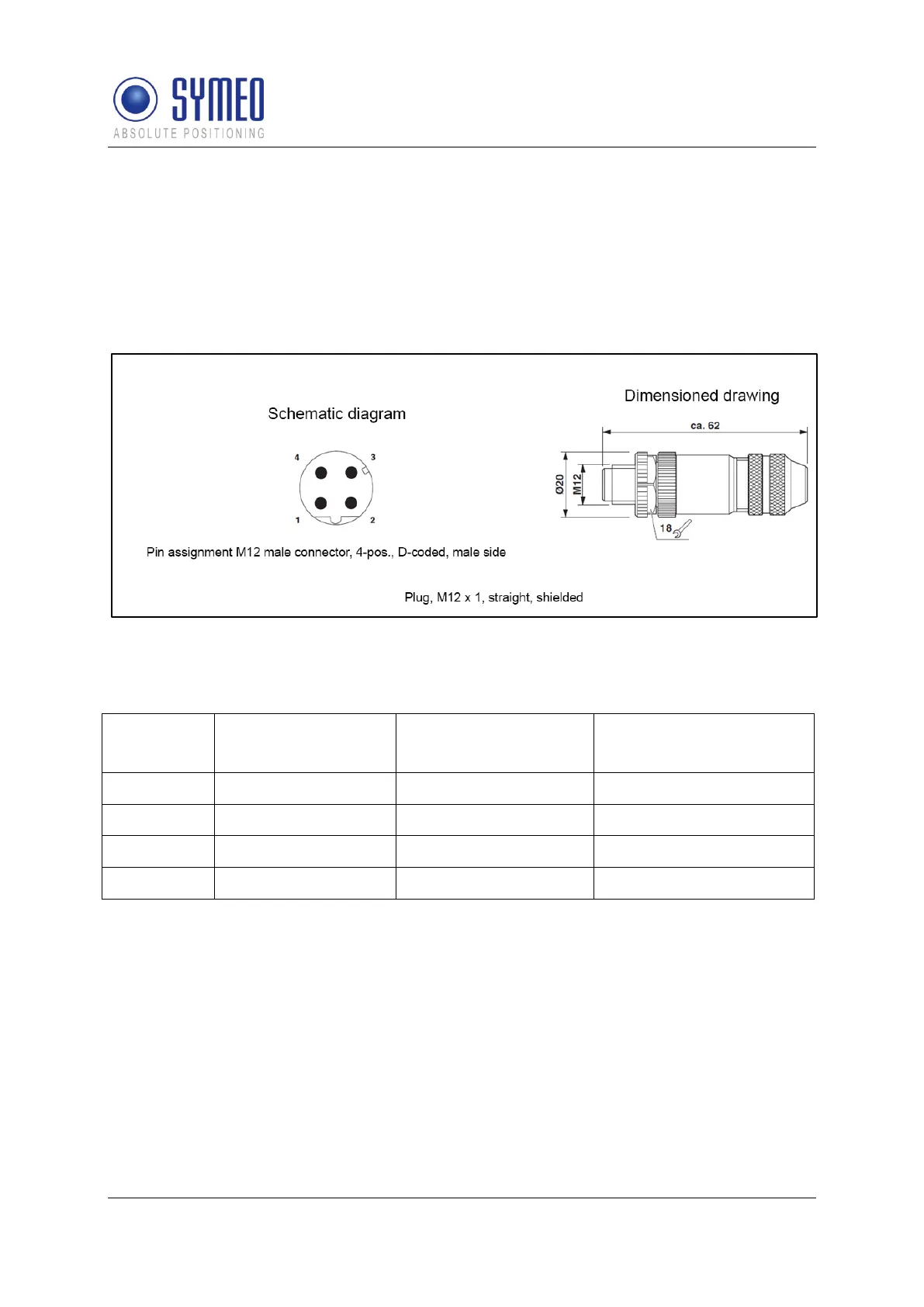

Figure 6: M12 Ethernet M12
5.3.2 Pin Assignment
Table 6: Pin assignment for Ethernet M12
5.3.3 Connector Cable M12 – RJ45
The connector cable M12 – RJ45 is required for the Ethernet-connection for configuration of
the LPR
®
-1D24 units with M12 plug and RJ 45 connector.
o Symeo order number: MTE102007
5.4 USB – mini
The LPR
®
-1D24 units are equipped with a USB mini connector externally (Figure 4 –
Connector B7). This port is only for service use.
Signal
Color of Conductor
PROFInet®
Color of Conductor
EIA/TIA 568B
Pin Assignment
TD+
Yellow
White/Orange
1
TD-
Orange
Orange
3
RD+
White
White/Green
2
RD-
Blue
Green
4
