Web User Interface for LPR®-1D24
Copyright © SYMEO GmbH 2015
LPR-1D24_Users_Manual_FCC-IC-Edition_EN.docx Page 28 of 34
Measurement mode
o Measuring mode for the LPR
®
-1D24 unit. Any measuring pair of LPR
®
-1D24 units has
to consist of one Master and one Slave Unit.
FSK communication channel
o Data communication channel number. Has to be the same on all units needing to
communicate with each other.
o The lowest usable communication channel is channel 16, the highest usable channel
is channel 95, depending on the configuration of the device. A set of 20, 40 or 80
usable channels can be configured.
Measurement channel
o Changes ramp slope of measurements. Has to be configured identically on Master
and Slave Unit of one pair. Can be changed to separate interfering pairs when other
pairs are close by.

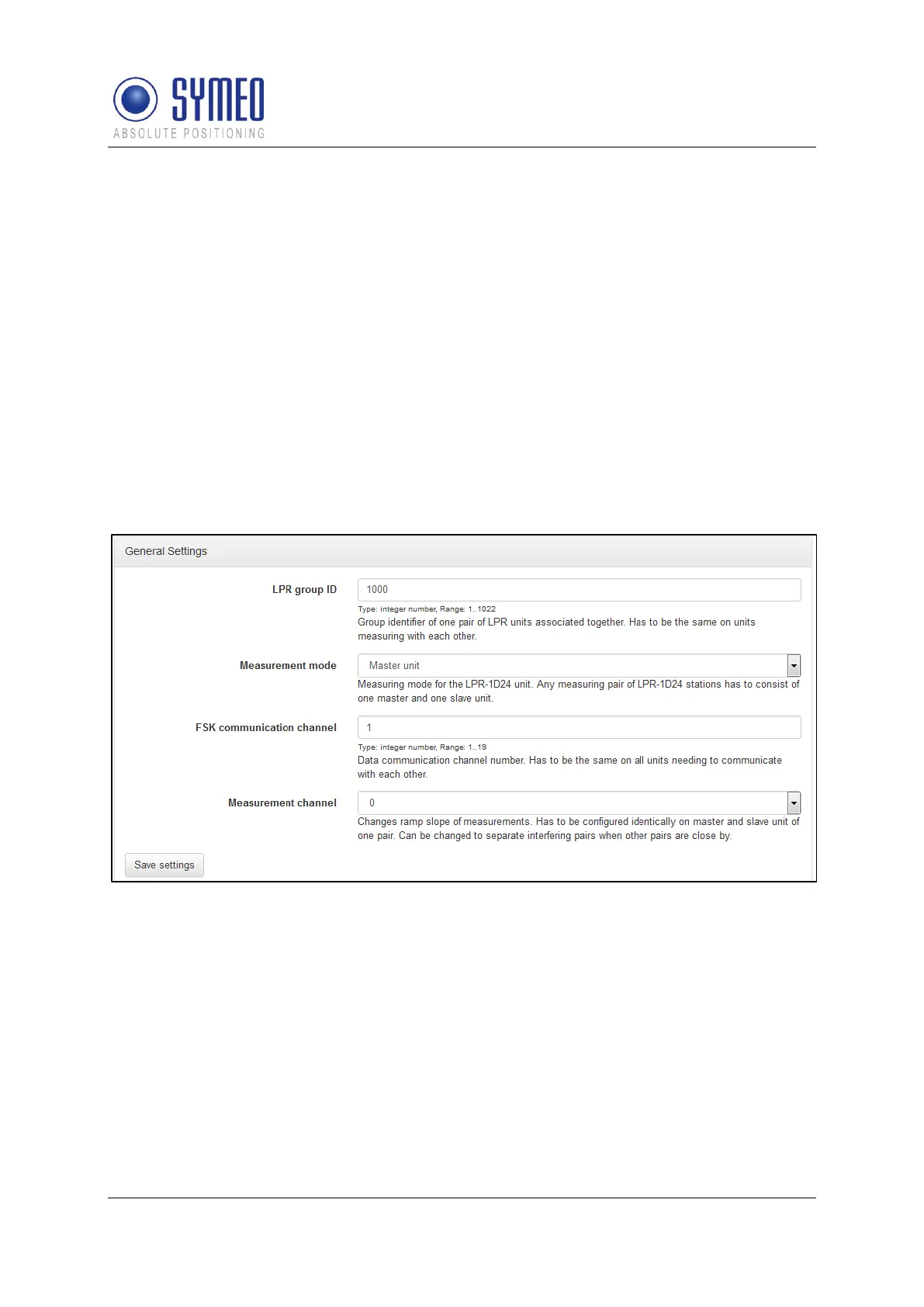

Figure 21 – Device: Application Settings – General Settings
Example Configuration of one pair of LPR
®
units:
