SystemAir DVS series User Manual

Description
|
5

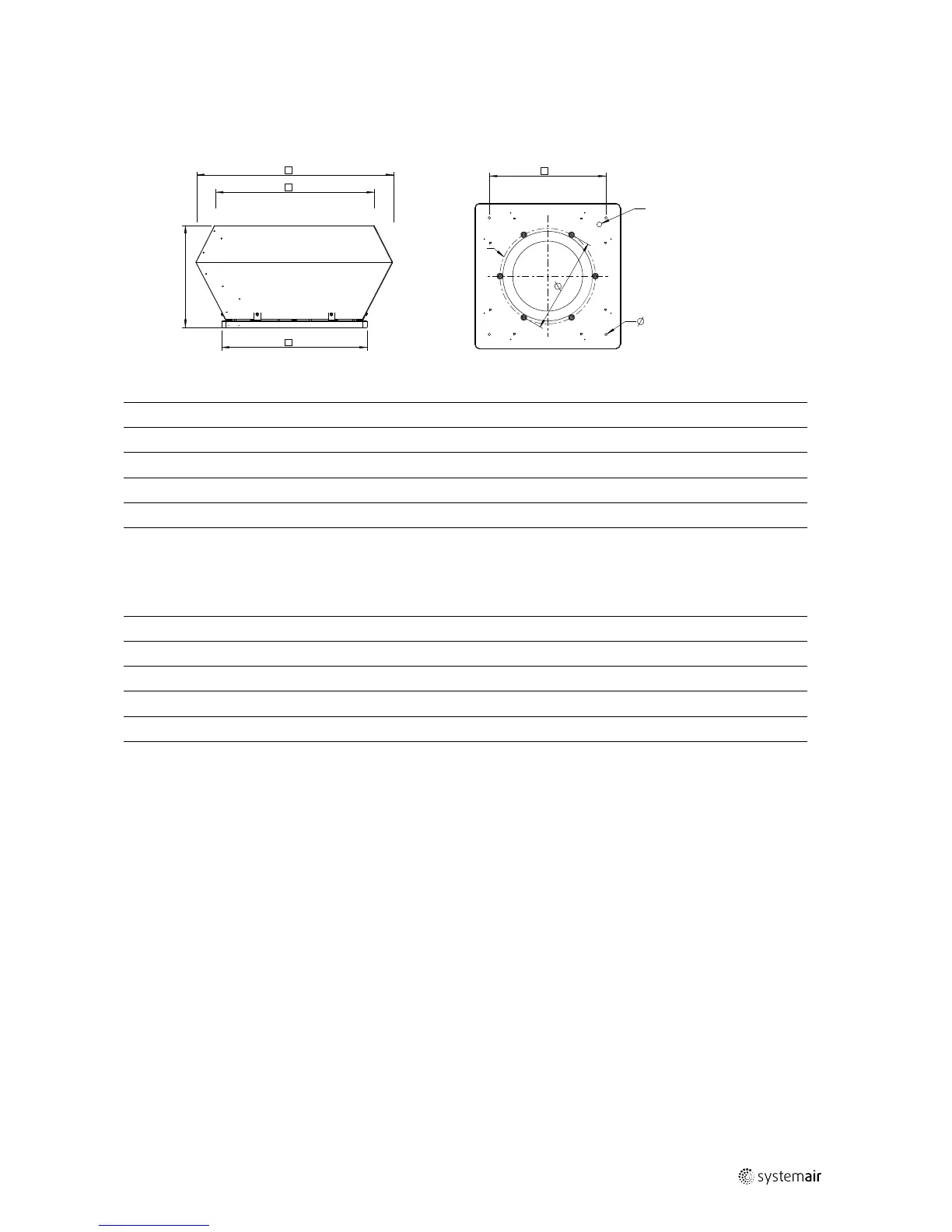

5.2 Description DVS/DVSI
Table 4 Dimensions DVS
H
M20x1,5
I
K
F
E
C
B
A
[mm]
A B C E F H K I
190–225 370 320 175 335 245 6xM6 213
10(4x)
310–311 560 470 330 435 330 6xM8 285
10(4x)
355–400 723 623 390 595 450 6xM8 438
12(4x)
450–500 900 730 465 665 535 6xM8 438
12(4x)
560–630 1150 960 565 939 750 8xM8 605
14(4x)
710 1350 1185 660 1035 840 8xM8 674
14(4x)
Table 5 Dimensions DVSI
[mm]
A B C E F H K I
190–225 498 438 210 335 245 6xM6 213
10(4x)
310–311 695 584 370 435 330 6xM8 285
10(4x)
355–400 877 745 440 595 450 6xM8 438
12(4x)
450–500 970 825 479 665 535 6xM8 438
12(4x)
560–630 1315 1130 600 939 750 8xM8 605
14(4x)
710 1483 1185 729 1035 840 8xM8 674
14(4x)
| 005
