Installing the microphone

A microphone and microphone clip are only used for radios

with a user interface.

Connecting the microphone

Caution: The microphone grommet must be installed when-

ever the microphone is plugged into the micro-

phone socket. When installed, the grommet has

two functions:

■ to prevent damage to the microphone socket when there

is movement of the microphone cord, and

■ to ensure that the control head is sealed against water,

dust and other environmental hazards.

To install the microphone:

1 Plug the microphone into the microphone socket.

2 Slide the microphone grommet along the microphone

cord and push two adjacent corners of the grommet into

the microphone socket cavity.

3 Squeeze the grommet and push the remaining corners

into position.

4 Check that the grommet is seated correctly in the cavity.

Installing the microphone clip

Caution: Only install the microphone clip provided. If a non-

standard microphone clip is used, the correct oper-

ation of the microphone hookswitch cannot

be guaranteed.

Install the microphone clip in the most convenient location

for the radio user. It must be installed:

■ within easy reach of the user, and

■ in such a position that the microphone PTT key cannot be

inadvertently activated or jammed on.

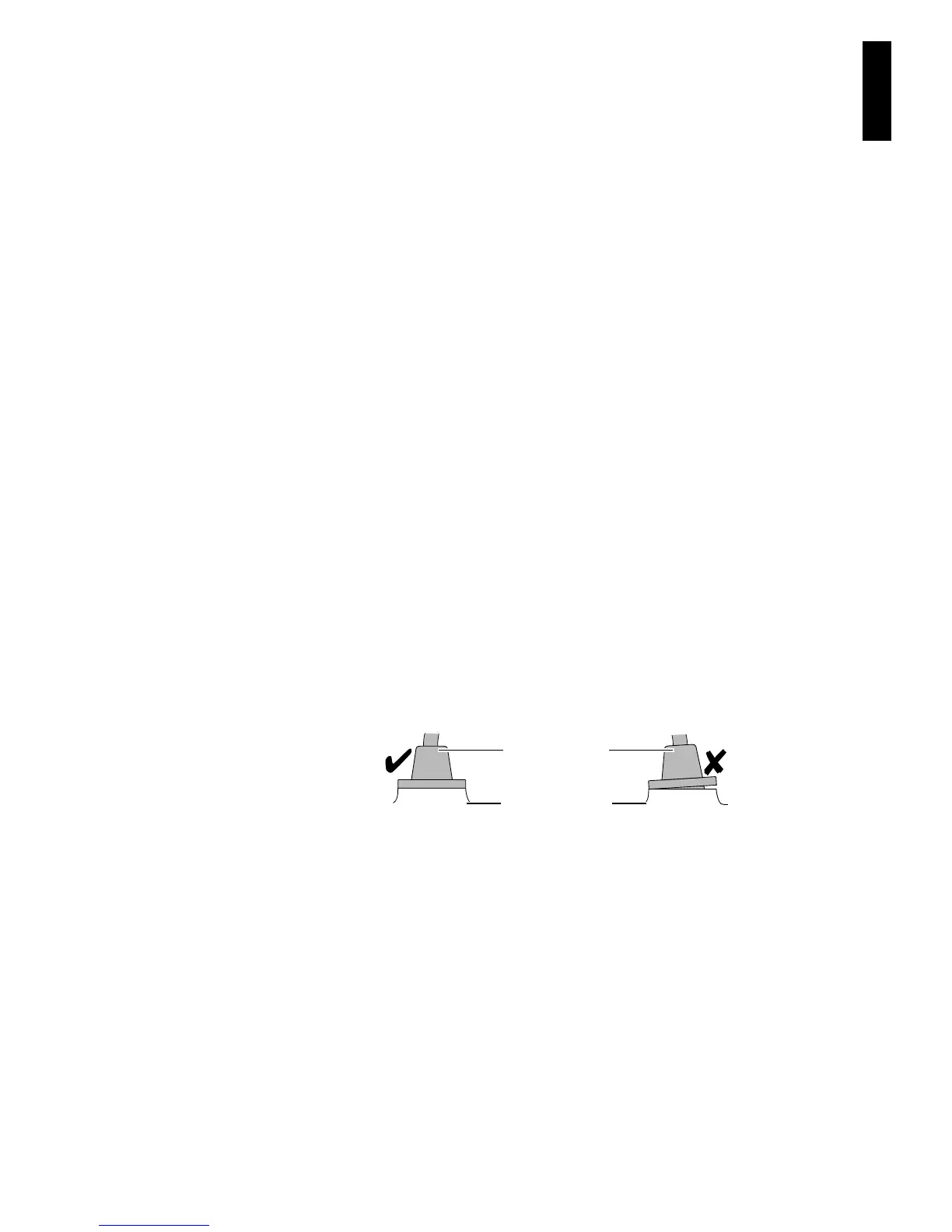

microphone

grommet

control head

Tait TM8115 User Guide
