36 Radio installation
English
the self-drilling screws. Reduce the hole size in metal that
is less than 1mm (1/32 inch) thick.

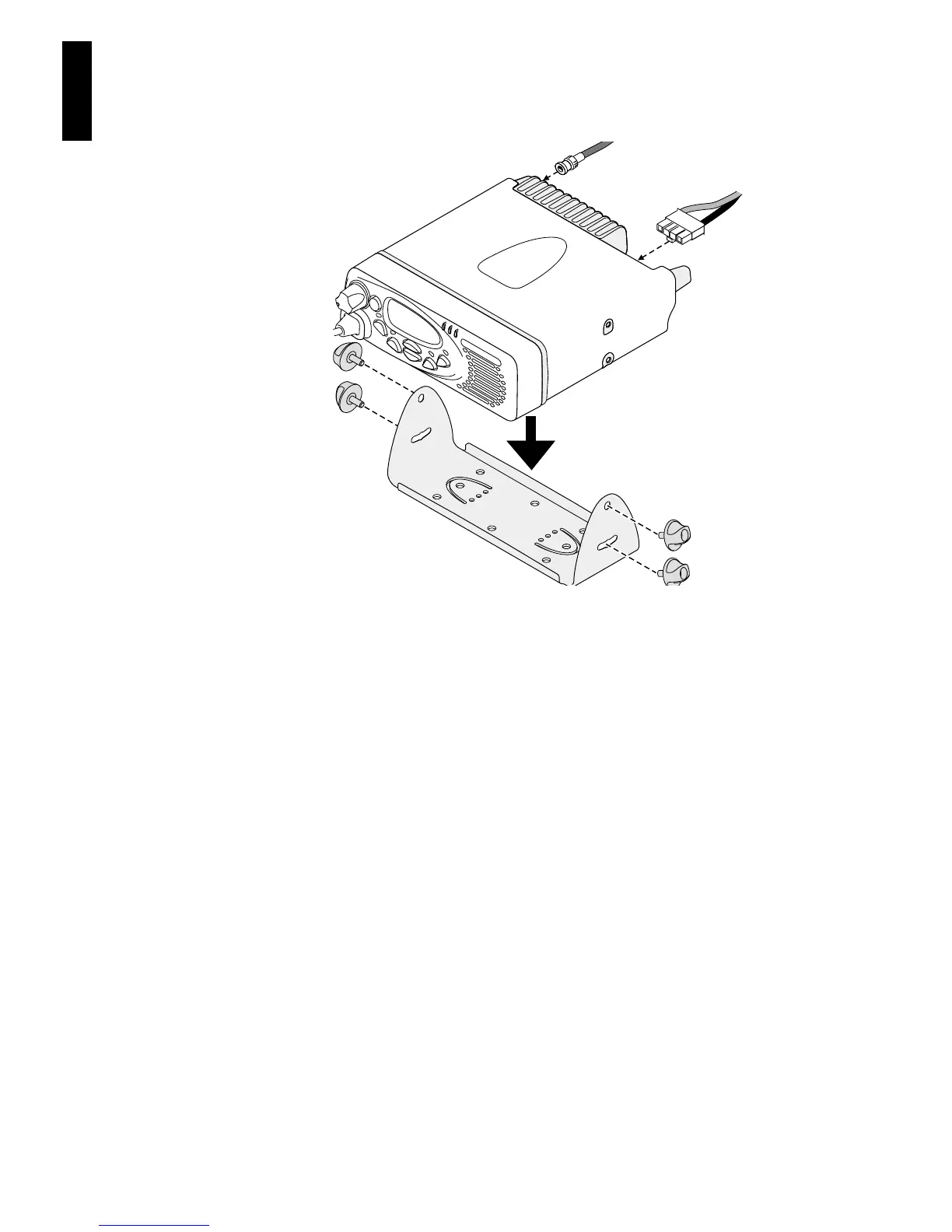

Installing the radio in the U-bracket
1 Connect the antenna and power cables to the rear of
the radio.
2 Position the radio in the U-bracket so that the holes in the
U-bracket line up with the holes in the radio chassis.
3 Screw the radio into position using the four thumb screws
but without fully tightening the screws.
4 Position the radio in the U-bracket for best viewing angle,
then tighten the thumb screws.
