Section 4
4-1
Model C706
Operator Parts Identification
4
Operator Parts Identification

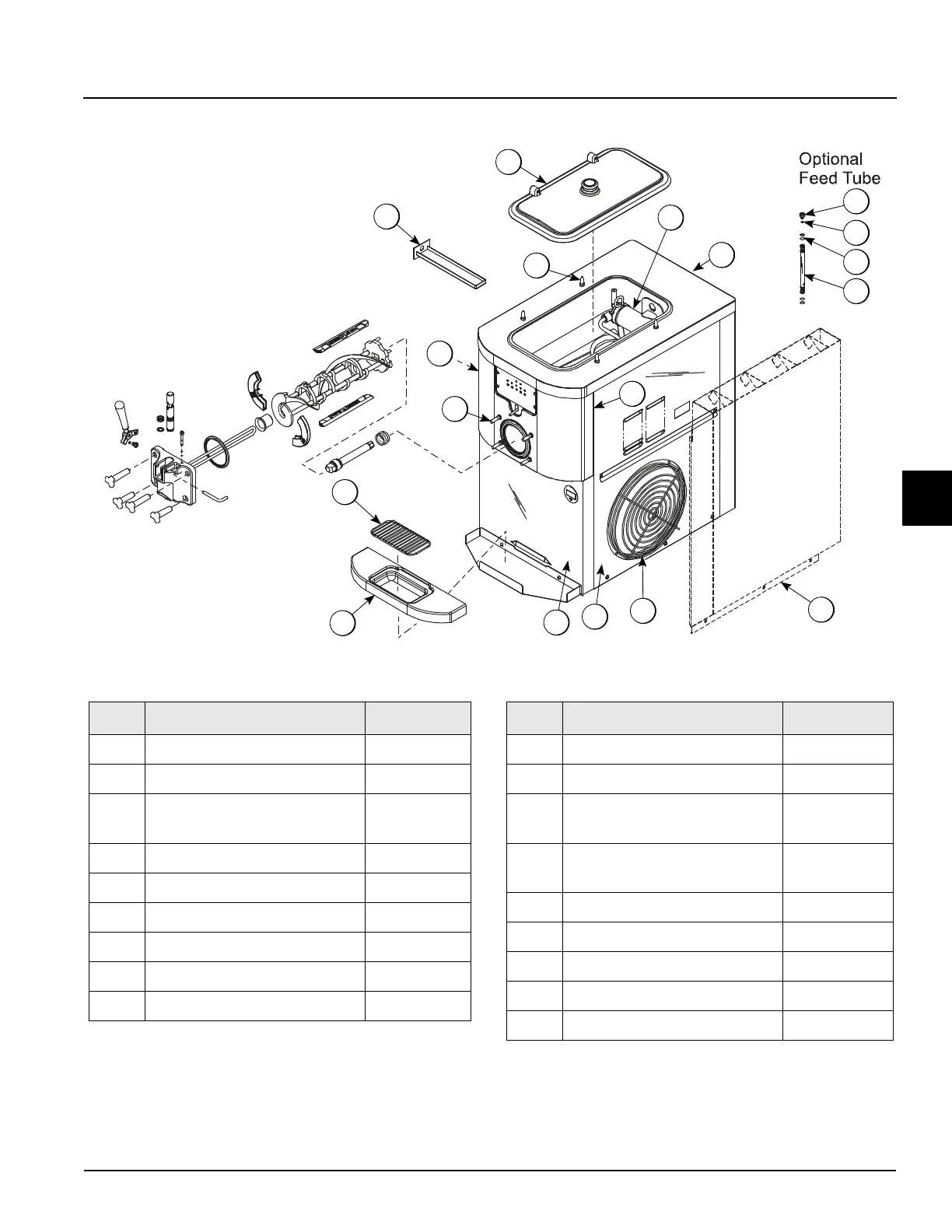

Figure 4-1
*Optional feed tube.
13
14
10
8
7
6
5
4
2
1
3
12
9
16
17
18
15
11
Item Description Part No.
1 Kit A.-Cover-Hopper X65368-SP
2 Pan-Drip 11-5/8” Long 027503
3 Pin-Retaining-Hopper
Cover
043934
4 Panel-Side-Left 066722-SP2
5 Stud-Nose Cone 055987
6 Shield-Splash 049203
7 Tray-Drip *Black 056858
8 Panel-Front-Lower 058942
9 Panel A.-Front-Upper X58950
Item Description Part No.
10 Panel A.-Side-Right*AC X64151
11 Panel-Rear 056077
12 Pump A.-Mix Simplified S.S.
(See page 4-3)
X57029-14
13 Panel A.-Side-Right *TAD
(Optional)
X81369-SER
14 Guard-Fan 028534-1
*15 Orifice 022465-100
*16 O-ring-3/8 OD X 0.070W 016137
*17 O-ring-.643 OD X 0.077W 018572
*18 Tube A.-Feed-SS-5/32 Hole X29429-2
To Next Page
