Taylor C706 Operator's Manual

4-2
OPERATOR PARTS IDENTIFICATION
Model C706
Operator Parts Identification
4

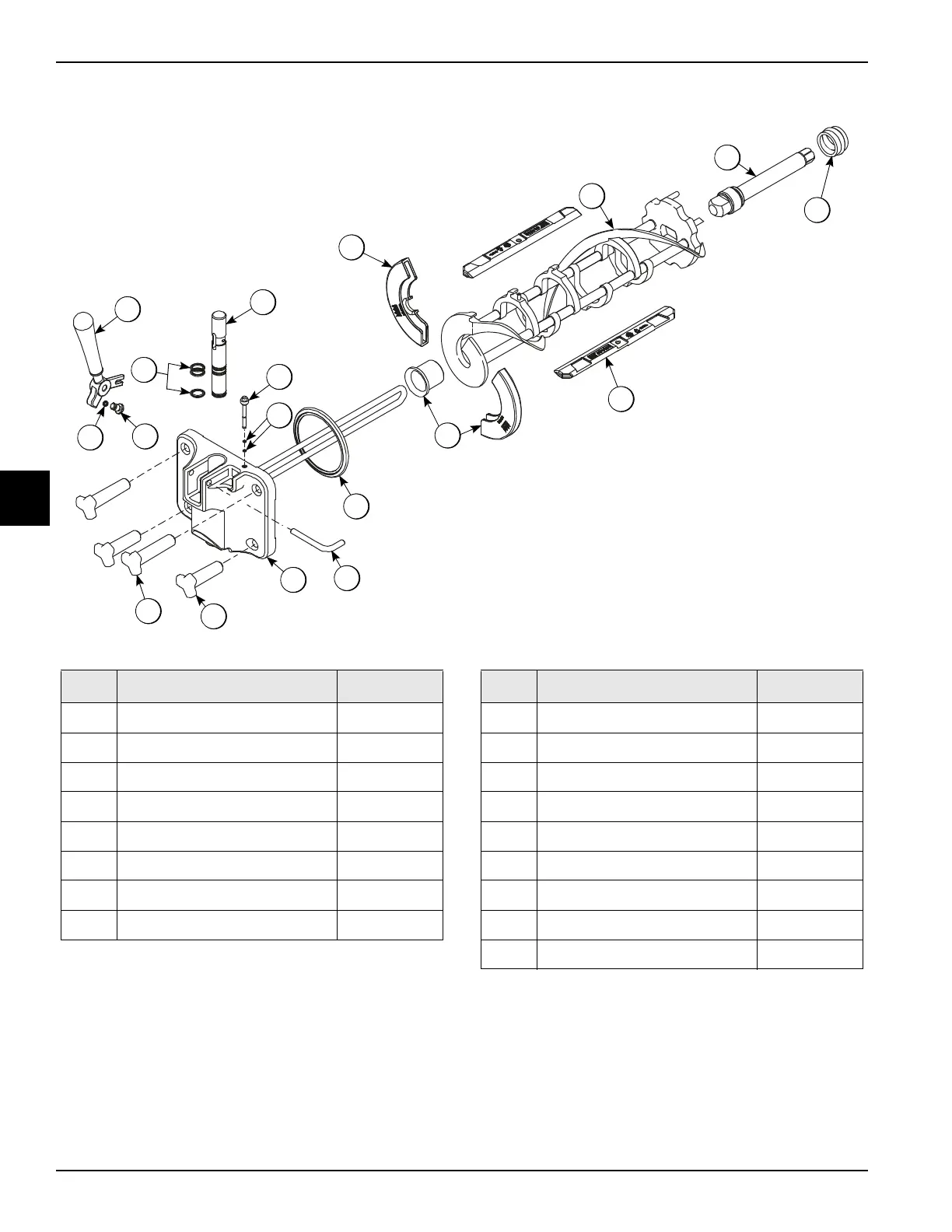

Model C706 Single Spout Door and Beater Assembly
Figure 4-2
2
8
6
7
3
4
13
13
12
5
1
10
15
14
16
17
9
11
Item Description Part No.
1 Door A.-w/ Baffle X56071-SER
2 Handle A.-Draw-Welded X56246
3 Screw-Adjustment-5/16-24 056332
4 O-ring-1/4 OD X 0.070W 50 015872
5 Pin-Handle-S.S. 055819
6 Plug-Prime 028805
7 O-ring-3/8 OD X .070W 016137
8 Valve A.-Draw X56072
Item Description Part No.
9 O-ring -7/8 OD X 0.103 W 014402
10 Nut-Stud Black-3.25 Long 058765
11 Nut-Stud Black-2.56 Long 058764
12 Gasket-Door HT 4" DBL 048926
13 Kit A.-Beater Front Shoe X50350
14 Beater A.-3.4 qt. - 1 Pin X46231
15 Blade-Scraper-Plastic 8-1/8L 084350
16 Shaft-Beater 056078
17 Seal-Drive Shaft 032560
