Taylor C706 Operator's Manual

OPERATOR PARTS IDENTIFICATION
4-3
Model C706
Operator Parts Identification
4

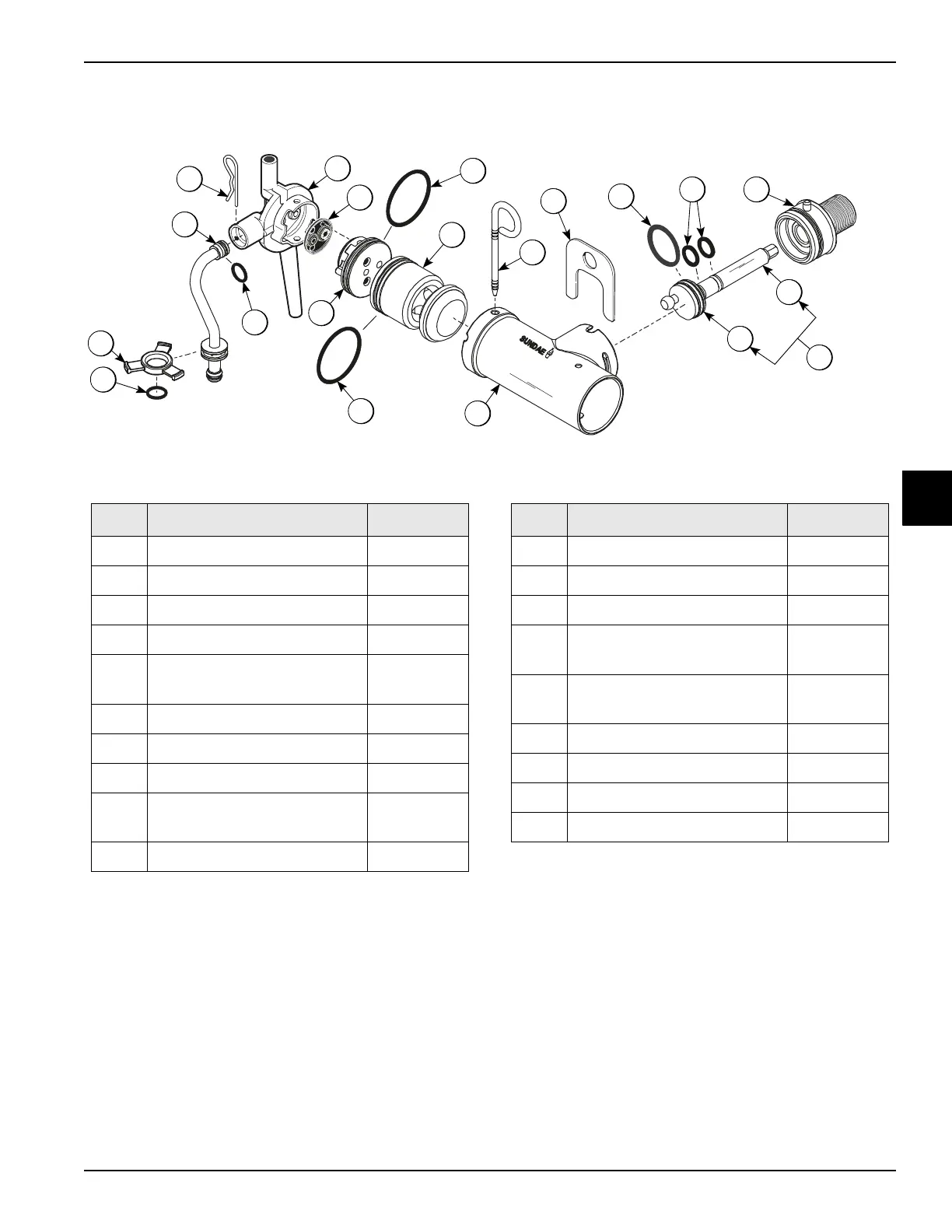

X57029-XX Pump A.—Mix Simplified
Figure 4-3
9
12
7
6
4
3
2
11
1
4
5
8
13
8
10d 14
10a
10b
10c
10
Item Description Part No.
1-7 Pump A.-Mix Simplified S.S. X57029-14
1 Cylinder-Pump Hopper Soft Serve 057943
2 Pin-Retaining X55450
3 Piston-Pump-Simplified 053526
4 O-ring-2-1/8 OD X
0.139W-#225 *(50 to Bag)*
020051
5 Cap-Valve Body SS 056874-14
6 Gasket-Simplified Pump Valve 086097
7 Adaptor-Mix Inlet-SS-Red 054825
8 O-ring-11/16ODX0.103W-Red
*50 To Bag*
016132
9 Pin-Cotter-Hairpin-1/8DIA 044731
Item Description Part No.
10 Shaft A.-Drive-Mix
Pump-Hopper X41947
10a Crank-Drive-Hopper Mix
Pump 039235
10b Shaft-Drive-Mix
Pump-Hopper 041948
10c O-ring-1-3/4 OD X
0.139W-Crank *(25 to Bag)*
008904
10d O-ring 1/2 ID X 0.139W-Shaft
*(25 to Bag)*
048632
11 Clip-Retainer-Mix Pump 044641
12 Tube A.-Feed-Hopper S.S. X56521
13 Ring-Check-Feed-Tube 056524
14 Sleeve A.-Mix Pump *HT X44761
