Optional Feed Tube (Backup Option)
If the air/mix pump has become inoperable because of a
missing or damaged part, the operator can temporarily
operate the machine using the feed tube. The product
ejection rate will be slower when the feed tube is used
instead of the air/mix pump.

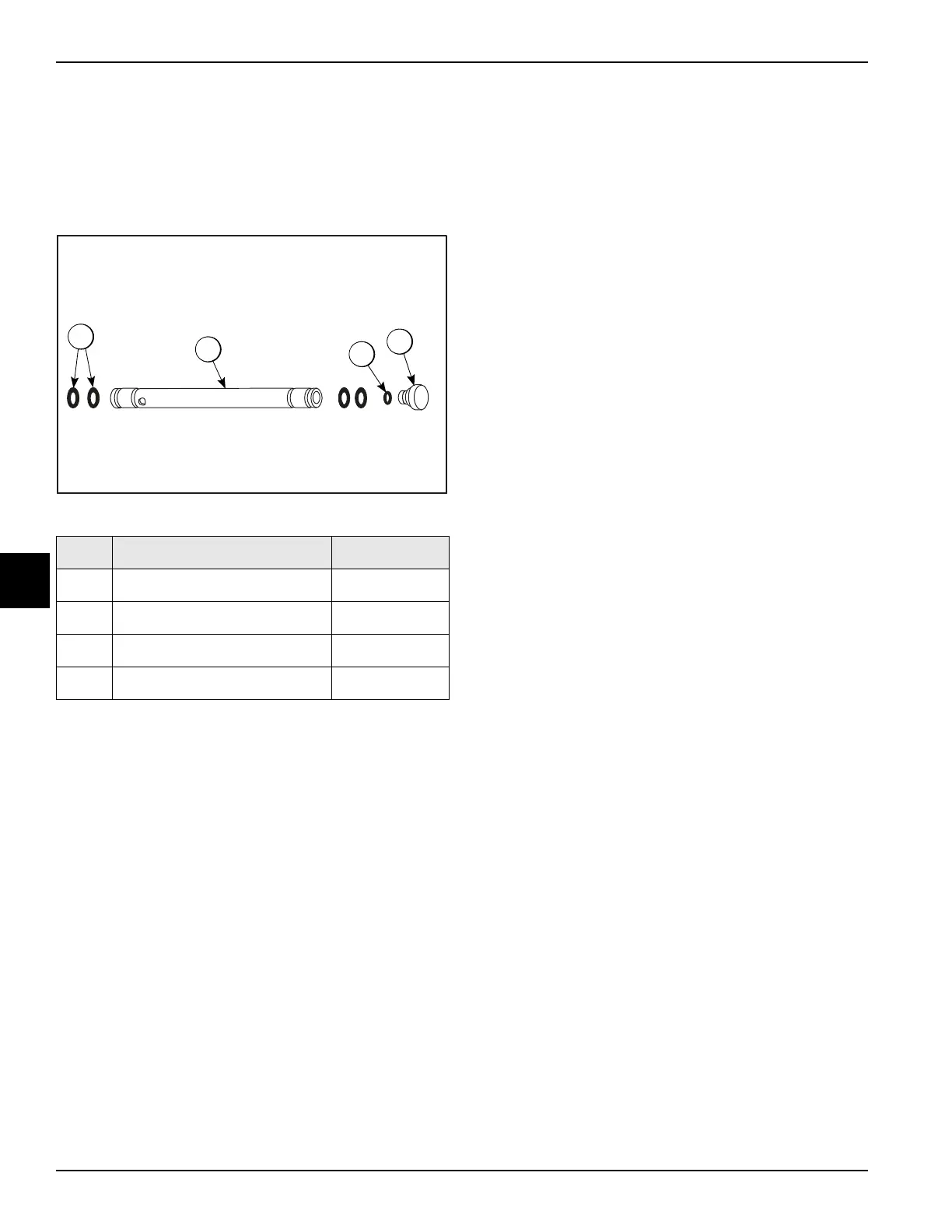

Figure 5-3
The feed tube serves two purposes. One end of the tube
has a hole in the side and the other end does not.
Normal Operation
During normal operation, the end of the feed tube with
the hole in the side is placed into the mix inlet hole. Every
time the draw handle is raised, new mix and air from the
hopper flow into the freezing cylinder. This keeps the
freezing cylinder properly loaded and maintains overrun.
Long No Sale Periods
During long no sale periods, the machine can be placed
in the Standby mode. This mode maintains product
temperatures below 40°F (4.4°C) in both the hopper and
the freezing cylinder and helps prevent overbeating and
product breakdown.
To place the machine in the Standby mode, press the
STANDBY key. Remove the air orifice. Lubricate the
O-rings located on the end of the feed tube without the
hole. Place that end of the tube into the mix inlet hole.
This prevents any mix from entering the freezing cylinder.
Note: The air orifice meters a certain amount of air into
the freezing cylinder. The air orifice maintains overrun
and allows enough mix to enter the freezing cylinder after
a draw.
Item Description Part No.
1
Orifice
022465-100
2
O-ring-3/8” OD X 0.070 W
016137
3
Tube A.-Feed-SS 5/32” Hole
X29429-2
4
O-ring-0.643 OD X 0.077 W
018572
