Model C706 Operator Parts Identification

050617

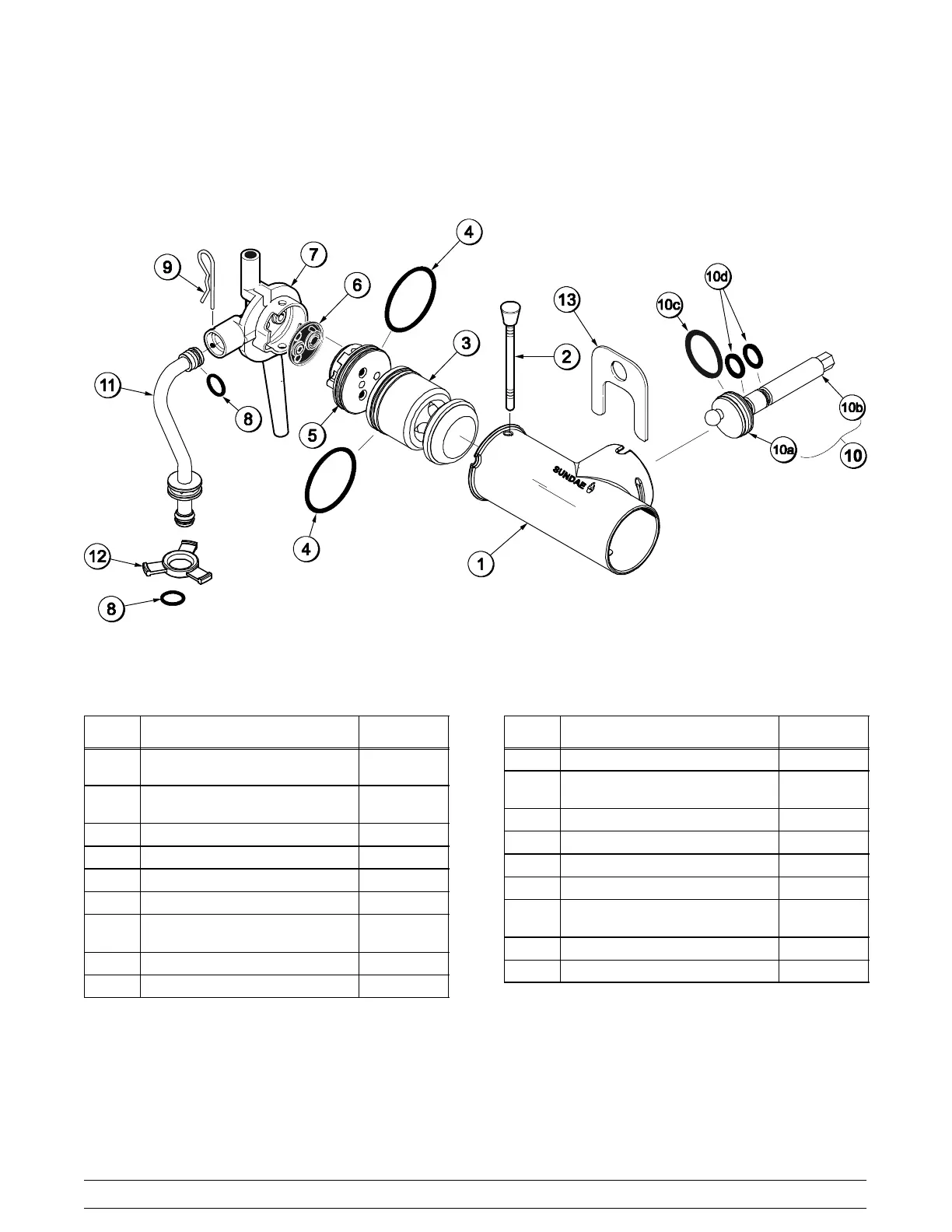

X57029--XX Pump A. -- Mix Simplified

Figure 1

ITEM

DESCRIPTION PART NO.

1-7 PUMP ASSEMBLY - MIX

SIMPLIFIED SOFT SERVE

X57029-XX

1 CYLINDER A.-PUMP-HOPPER-

SOFT SERVE

X57025

2 PIN A.-COAX PUMP X55450

3 PISTON 053526

4 O-RING 2-1/8” OD - RED 020051

5 CAP-VALVE 056874-12

6 GASKET - SIMPLIF IED PUMP

VALVE

053527

7 ADAPTOR - MIX INLET 054825

8 O-RING - 11/16 OD - RED 016132

ITEM DESCRIPTION PART NO.

9 PIN - COTTER 044731

10 SHAFT A.-DRIVE-MIX PUMP-

HOPPER

X39084

10a CRANK-DRIVE 039235

10b SHAFT-DRIVE 039106

10c O-RING - DRIVE SHAFT 048632

10d O-RING 1-3/4 008904

11 TUBE A.-FEED HOPPER

SOFT SERVE

X56521

12 RING-CHECK .120 OD 056524

13 CLIP-MIX PUMP RETAINER 044641
