18
Model C706Operating Procedures
041118

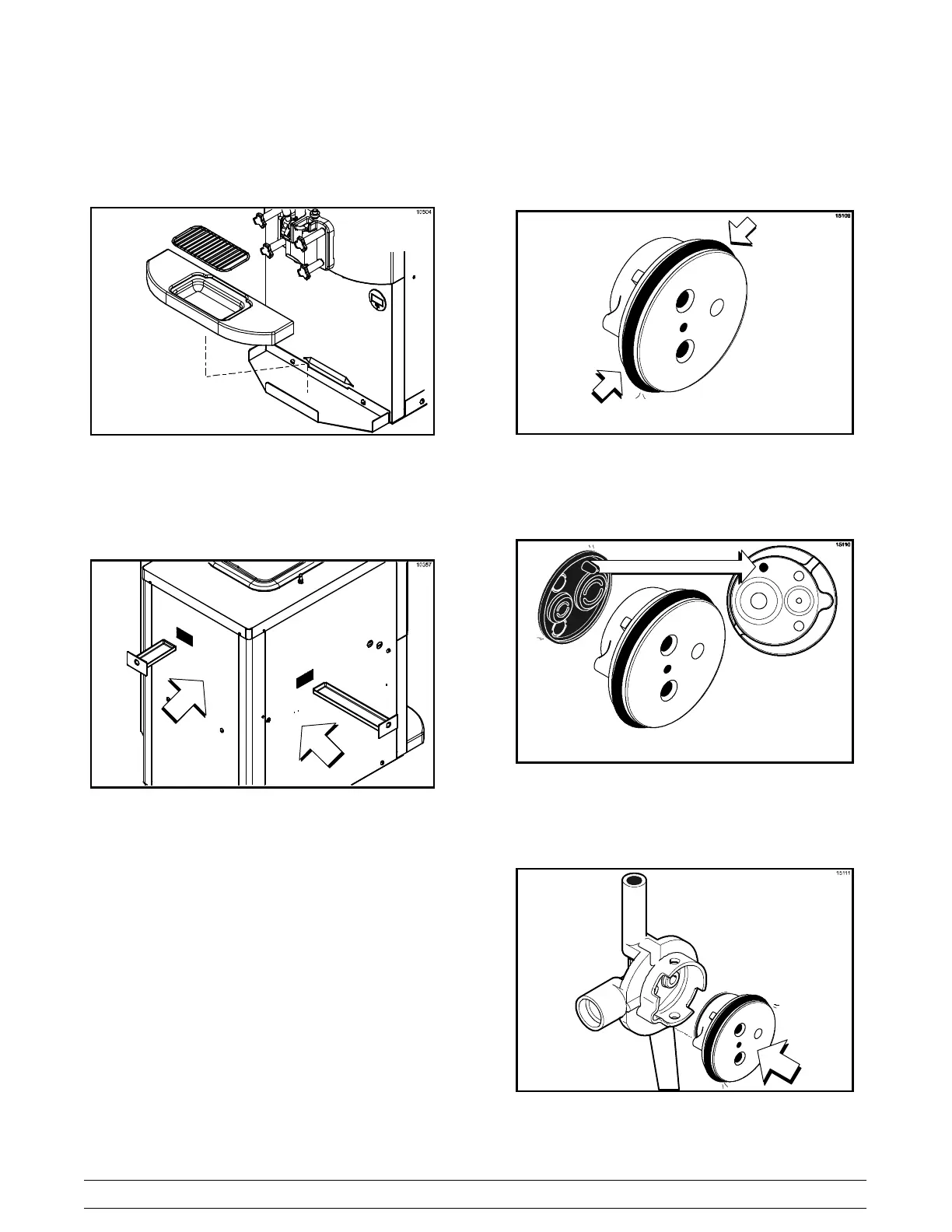

Step 8
Install the front drip tray and the splash shield under
the door spout.
Figure 16
Step 9
Slide the rear drip pan into the hole in the side panel.
Slide the pump drip pan into the hole in the back panel.
Figure 17
Mix Hopper Assembly
Step 1
Inspect the rubber pump parts. O--rings and gasket
must be in 100% good condition for the pump and
entire machine to operate properly. The o--rings and
gasket cannot properly serve their intended function if
nicks, cuts, or holes in the material are present.
Replace any defective parts immediately and discard
the old.
Step 2
Assemble the mix inlet assembly. Slide the o--ring into
the groove of the valve body cap. DO NOT lubricate
the o--ring.
Figure 18
Step 3
Slide the pump valve gasket into the holes on the cap.
DO NOT lubricate the gasket.
Figure 19
Step 4
Insert the valve body cap into the hole in the mix inlet
adapter.
Figure 20
To Next Page
