TC-Helicon VoiceTone Harmony-G User Manual

7

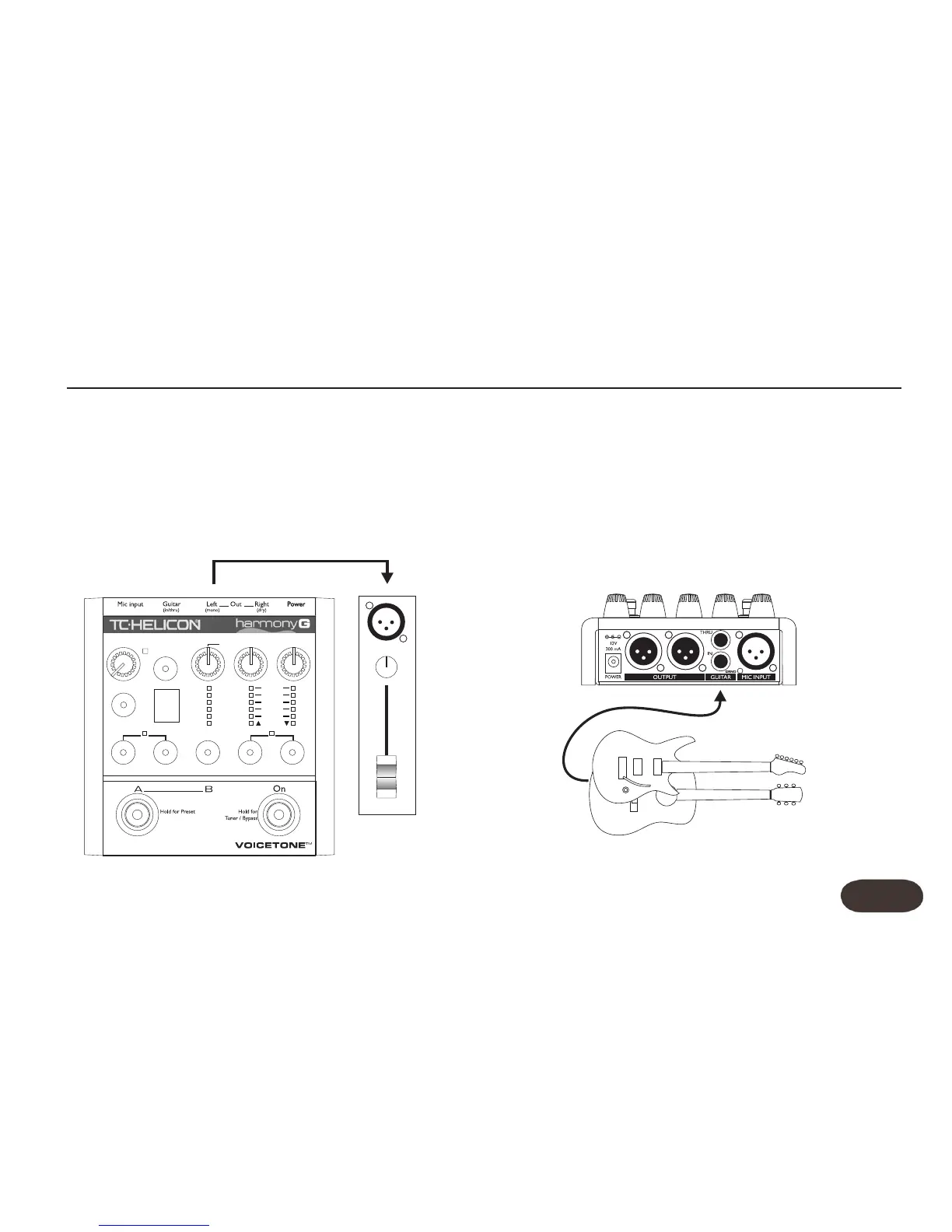

Step 3:
While you’re connecting and setting up, lower the fader
on your mixer channel to off. Connect a mic cable from
the Left/(mono) Out to a mic input on your sound
system.
Step 4:
Connect a 1/4” guitar cable from your electric or
acoustic guitar to the Guitar IN. For now, we won’t use
the Guitar THRU so the guitar sound will be mixed with
your voice and effects. It will come out of the Left
(mono) main output.
Quick Start
Input
Tone
Guitar FX Harmony
Preset
Manual Double FX Voice 1 Voice 2
Hall
Room
Echo
Slap
Combi
SFX
Higher
High
Low
Lower
Bass
Octave
48V Stereo
3
Auto
#
Pan

TC-Helicon VoiceTone Harmony-G Specifications

Analog Inputs

mic input impedance	1 kOhm
mic input sensitivity at 0dBFS	-44 dBu to +2 dBu
mic input sensitivity at 12dB headroom	-56 dBu to -10 dBu
guitar input impedance	1 MOhm
guitar input sensitivity	+15 dBu at 0dBFS
equivalent input noise	-126 dBu at max. mic amp gain, Rg = 150 Ohm

Analog Outputs

main output impedance	40 Ohm
main output level	+2 dBu at 0dBFS
guitar thru output impedance	270 Ohm

Input to Output Analog Audio Performance

dynamic range, mic at min gain	>108 dB, 20 Hz - 20 kHz A-weighted
dynamic range, mic at -18 dBu sensitivity	>104 dB, 20 Hz - 20 kHz
thd+ noise, mic at min gain	<-90 dB
frequency response at max gain	-1.5 dB at 40 Hz, +0/-0.3 dB (200 Hz to 20 kHz)
guitar in to thru dynamic range	>119 dB
tuning mute attenuation	>100 dB

Conversion Characteristics

sample rate	48 kHz
converter	AKM AK4620B
ad / da conversion	24 bit, 128x oversampling

Operating Environment

operating temperature	32 °F to 122 °F (0 °C to 50 °C)
storage temperature	-22 °F to 167 °F (-30 °C to 70 °C)
humidity	Max. 90 % non-condensing

Weight and Dimensions

dimensions	130 mm x 132 mm x 41 mm (5" x 5.25" x 1.5")
weight	1.5 lb (0.72 kg)
