33
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL

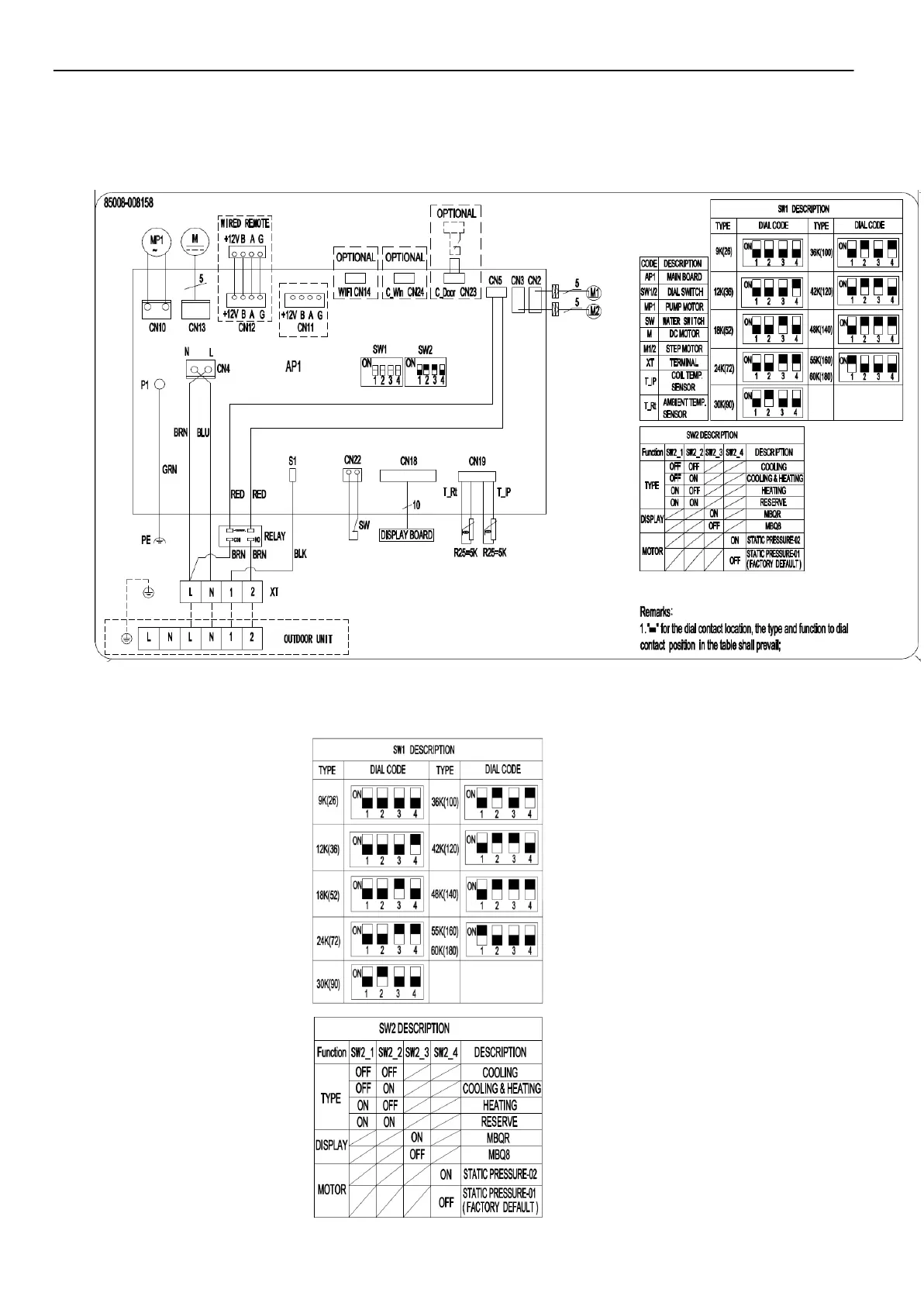

3.6 Wiring Diagram
3.7.1 INDOOR UNITCassette Type
MODEL12k/18K/24/30K
Micro-Switch Introduce:
Sw1 is for selection of type, sw2 is for selection of function, check the below table.
