44
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL

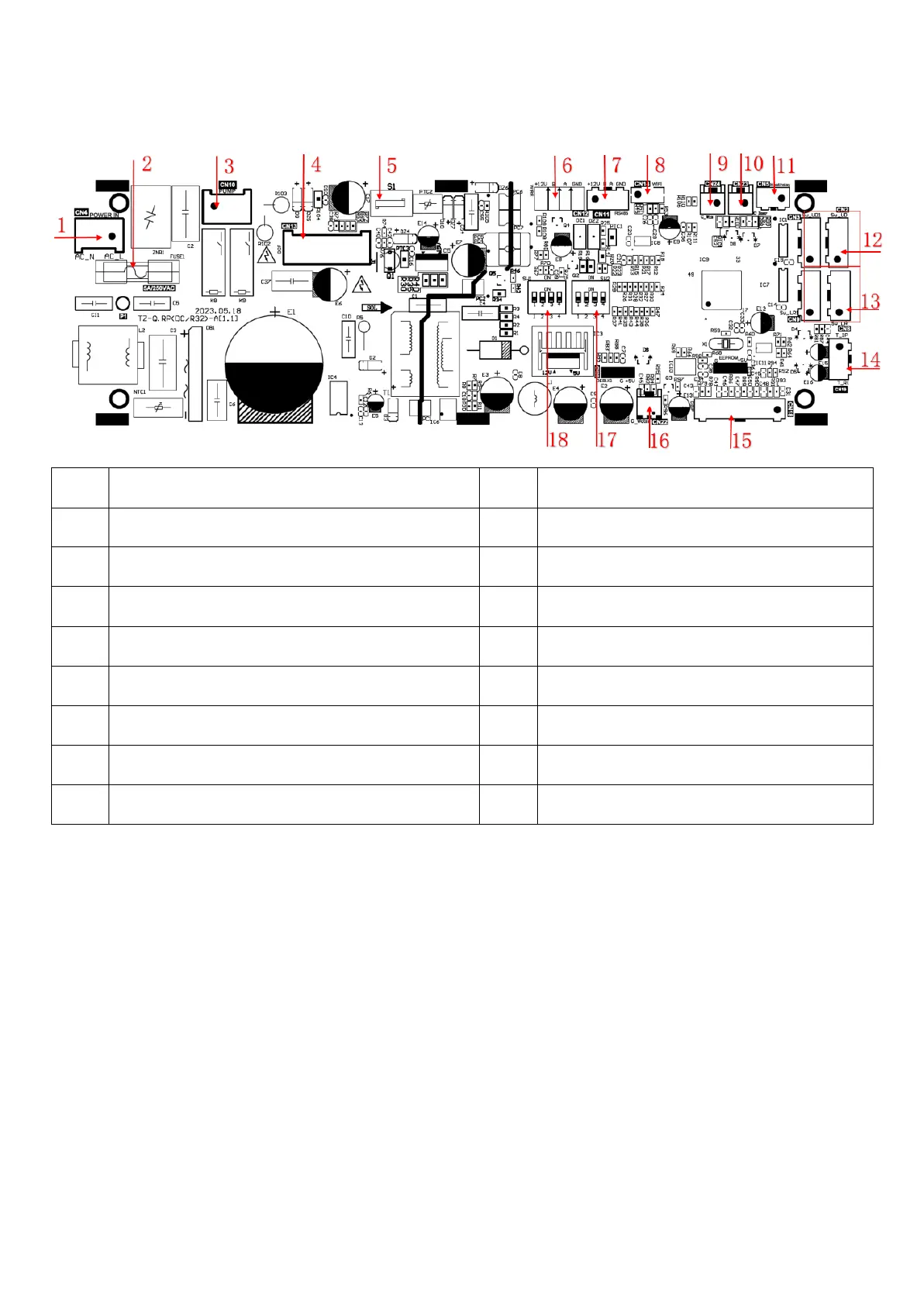

3.8 PCB Layout
3.8.1 Indoor Units：
Cassette Type
1
Power supply input
10
Access control switch connector
2
Fuse
11
Heat connector
3
Water pump
12
Up-Down swing motor connector
4
DC motor connector
13
Left-Right swing motor connector
5
Communication connector
14
Temperature sensor connector
6
485 communication connector
15
Display board connector
7
485 communication connector
16
Water level switch connector
8
WIFI connector
17
Dial code switch 2
9
Window ban switch connector
18
Dial code switch 1
