TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL

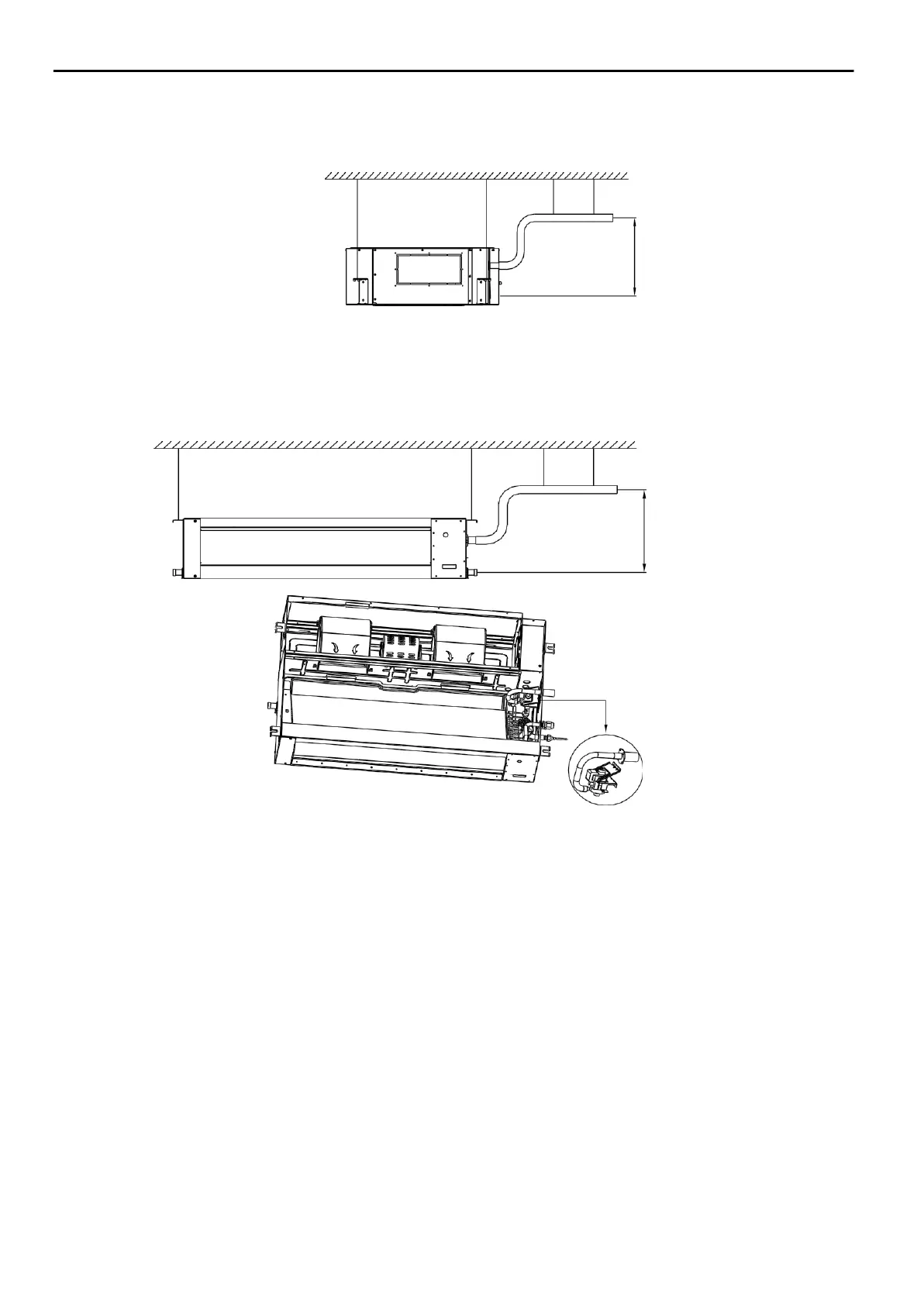

3.9 Built-in Draining Pump
3.9.1 Cassette Type
➢ Built-in draining pump to make sure condensed water drain out reliably. Built-in drain pump can lift the water
to 1200mm upmost, which widens the drainage piping range.
3.9.2 Duct Type (Optional)
➢ Built-in draining pump to make sure condensed water drain out reliably. Built-in drain pump can lift the water to
1200mm upmost, which widens the drainage piping range.
In the elevation section be
sure to drain to avoid the
water full protection
because of converse
flow.
1
2
0
0
m
m
