‘Caution for AC mains lead
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text carefully.
moulded three pin
a wee et et ee pean
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that
itis approved by ASTA or BSI to BS1362.
Check for the ASTA mark ¢ or the BS] mark ¥Y on the
body of the fuse.
This annliancre is sunnliead with a
a i oh sa 5 i en ee eee wWwsers
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
CAUTION! |
IF THE FITTED MOULDED PLUG IS UNSUIT-
ABLE FOR THE SOCKET OUTLET JN YOUR
HOME THEN THE FUSE SHOULD BE RE-
MOVED AND THE PLUG CUT OFF AND DijS-
POSED OF SAFELY.
THERE JS A DANGER OF SEVERE ELECTRI-
CA) SUOCK [EF THE Clit OFE Di II 1& INL
MJP AL, WIP ENSUES OTE Jtik., We] wid LNA It FIN
SERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe ithe wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which jis coloured Blue must be connected to
the terminal which is marked with the letter N or col-
oured Biack or Biue.
The wire which is coloured Brown must be connected
to the terminal which is marked with the letter L or
coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL —L OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.

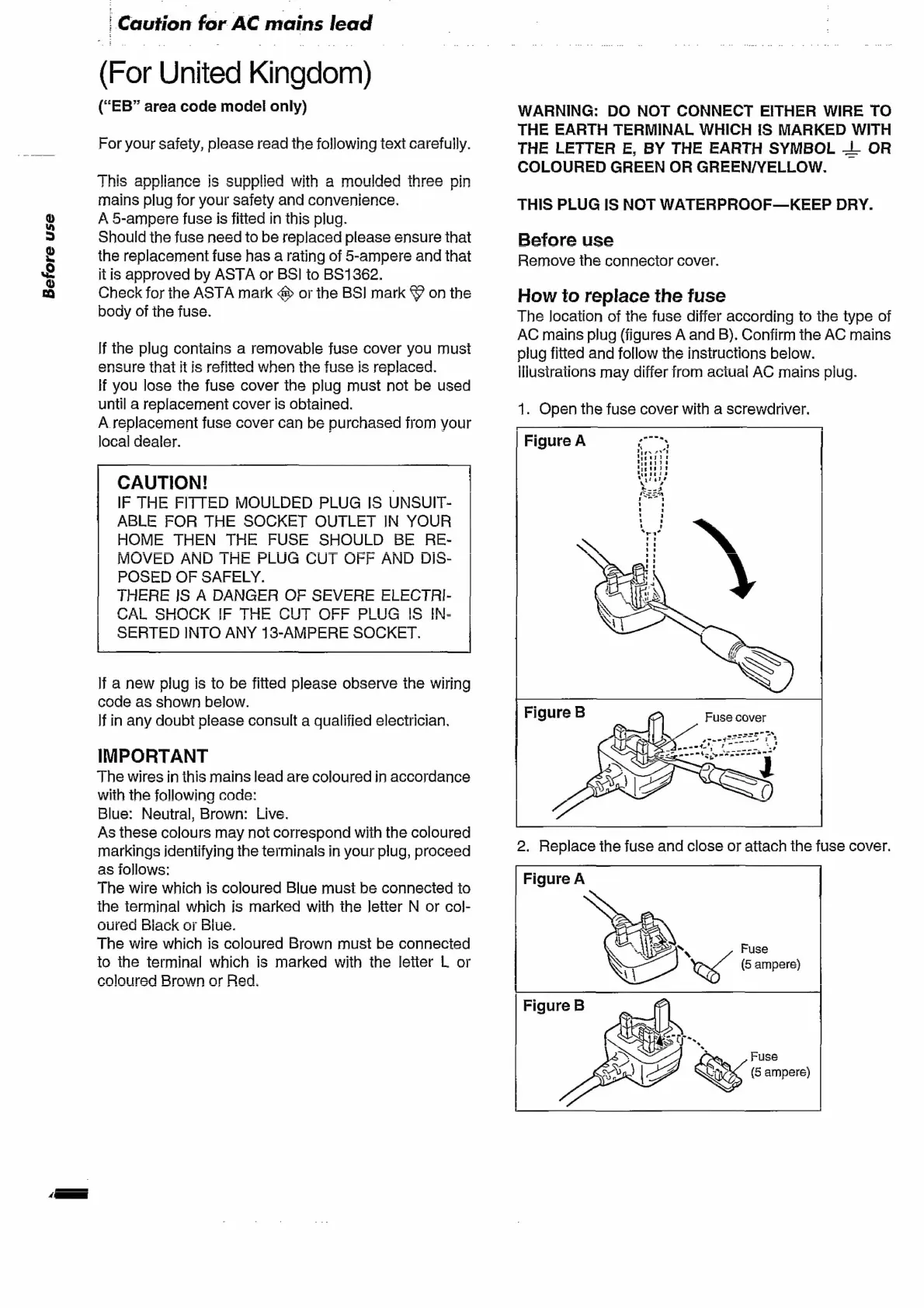

Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC mains
plug fitted and follow the instructions below.
iilustrations may differ from actuai AC mains piug.
1. Open the fuse cover with a screwdriver.
Figure A
Fuse cover
weer re,
Figure B
eflL-
Figure B
Fuseé
RO (5 ampere)
‘alg
