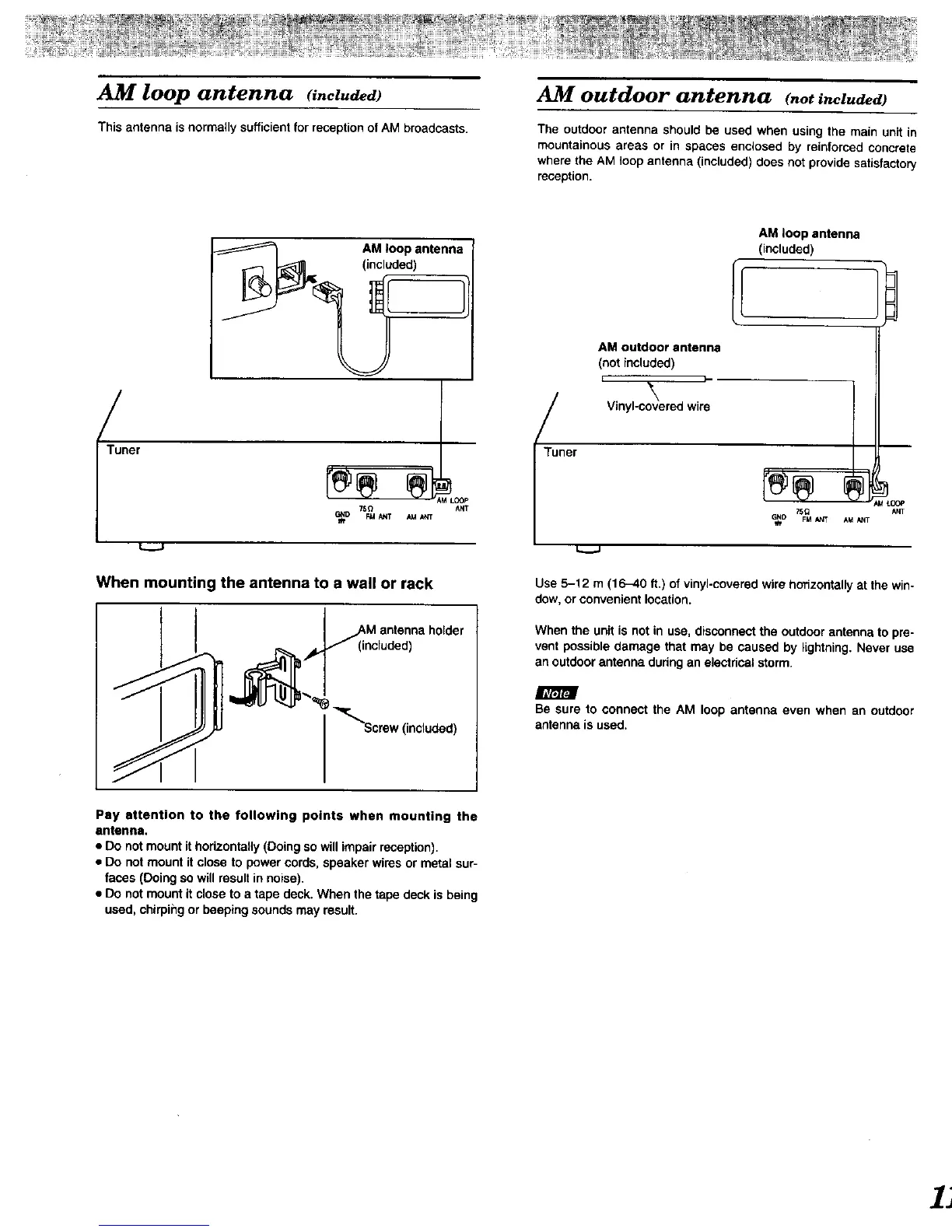

AM loop antenna (included)
This antenna is normally sufficient for reception of AM broadcasts.
AM outdoor antenna (notincluded)
The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the AM _oop antenna (included) does r_t provide satiefac_o_
reception.
/
Tuner
_ AM loop antenna
(included)
75Q ANT
FA4ANT AMMIT
L._.J
When mounting the antenna to a wail or rack
|ivtT]t_
"_Screw (included)
/
tuner
AM loop antenna
(included)
IE
AM outdoor antenna
(not included)
\
Vinyl-covered wire
751_
GND FM _ AM ANT
ANI
L,._.J
Use 5-12 m (16-40 ft.} of vinyl-covered wire ho_zm'_tattyat the win-
dow, or convenient location.
When the unit is not in use, disconnect the outdoor antenna to pre-
vent possible damage that may be caused by lightning. Never use
an outdoor antenna dudng an electrical storm.
Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
Pay attention to the following points when mounting the
antenna,
• Do not mount it hodzentally (Doing so will impair reception).
• DO not mount it close to power cords, speaker wires or metal sur-
faces (Doing so will result in noise).
• DO not mount it close to a tape deck. When the tape deck is being
used, chirping or beeping sounds may result.
