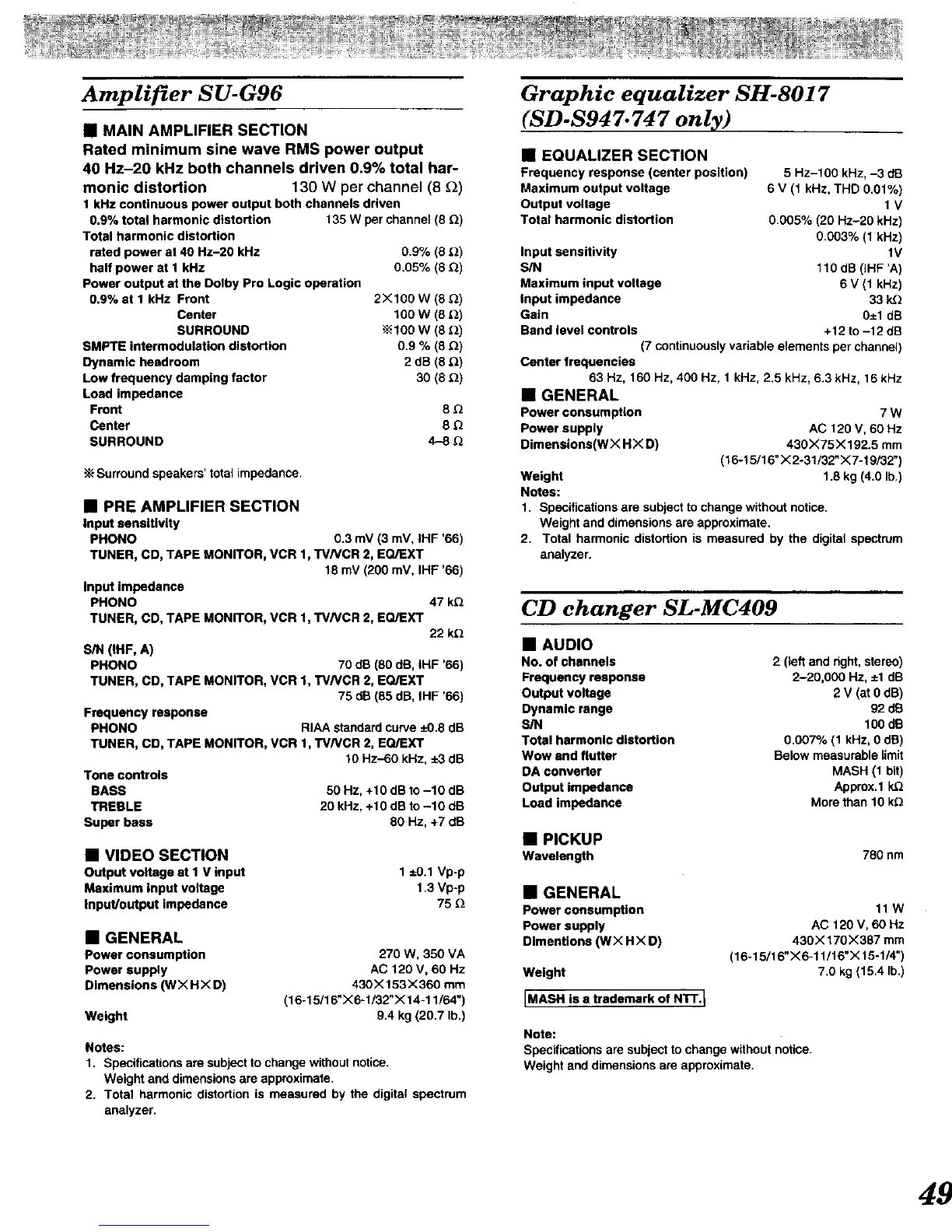

Amplifier SU-G96
II MAIN AMPLIFIER SECTION
Rated minimum sine wave RMS power output
40 Hz-20 kHz both channels driven 0,9% total har-
monic distortion 130 W per channel (8 _)
1 kHz continuous power output both channels driven
0.9% total harmonic distortion 135 W perchannel(8 Q)
Total harmonic distortion
rated power at 40 Hz-20 kHz 0.9% (8 _)
half power at t kHz 0.05% (8 _)
Power output at the Dolby Pro Logic operation
0.9% at 1 kHz Front 2X100 W (8 _)
Center 100 W (8 L_)
SURROUND "_100 W (8 _)
SMPTE intermodulation distortion 0.9 % (8 _)
Dynamic headroom 2 dB (8 _)
LOW frequency damping factor 30 (8 _)
Load impedance
Front 8
Center 8
SURROUND 4-8
Surround speakers' total impedance.
• PRE AMPLIFIER SECTION
Input sensitivity
PHONO 0.3 mV (3 mV, IHF '66)
TUNER, CD, TAPE MONITOR, VCR 1, TVNCR 2, EQ/EXT
18 mV (200 mV, IHF '66)
Input impedance
PHONO 47 k_
TUNER, CD, TAPE MONITOR, VCR 1, TVNCR 2, EQ/EX'r
22 k_
S/N (IHF, A)
PHONO 70 dB (80 dS, IHF '66)
TUNER, CD, TAPE MONITOR, VCR 1, TV/VCR 2, EO/EXT
75 dB (85 dB, IHF '66)
Frequency response
PHONO RIAA standard curve _0.8 dB
TUNER, CD, TAPE MONITOR, VCR 1, TVNCR 2, EQ/EXT
10 Hz-60 kHz, ±3 dB
Tone controls
BASS 50 Hz, +10 dB to -10 dB
TREBLE 20 kHz, +10 dB to -10 dB
Super bass 80 Hz, +7 dB
• VIDEO SECTION
Output voltage at 1 v input
Maximum input voltage
Input/output impedance
1 _0.1 Vp-p
1.3 Vp-p
75
• GENERAL
Power consumption
Power supply
Dimensions (W X HX D)
Weight
270 W, 350 VA
AC 120 V, 60 Hz
430X153X360 mm
(16-15/16"X6-1/32"X 14-11/64")
9.4 kg (20.7 lb.)
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Graphic equalizer SH-8017
(SD-$947.747 only)
• EQUALIZER SECTION
Frequency response (center position)
Maximum output voltage
Output voltage
Total harmonic distortion
Input sensitivity
S/N
Maximum input voltage
input impedance
Gain
Band level controls
5 Hz-100 kHz, -3dB
6 V (1 kHz, THD 0.01%)
lV
0005% (20 Hz-20 kHz)
0.003% (1 kHz)
tV
110 dB (IHF 'A)
6 V (1 kHz)
33 k.Q
0±1 dB
+12 to-12 dB
(7 continuously variable elements per channel)
Center frequencies
63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, 16 kHz
• GENERAL
Power consumption
Power supply
Dimensions(WX HX D)
WeigM
Notes:
7W
AC 120 V, 60 Hz
430X75X192.5 mm
(16-15/16" X2-31/32" X7-19/32")
1.8 kg (4.0 lb.)
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
CD changer SL-MC409
• AUDIO
No. of channels
Frequency response
Output voltage
Dynamic range
S/N
Total harmonic distortion
Wow and flutter
DA converter
Output impedance
Load impedance
2 (left and right, stereo)
2-20,000 Hz, ±1 dB
2V (at 0dB)
92 dB
100 dE
0.007°/o (1 kHz, 0 dB)
Below measurable limit
MASH (1 bit)
Approx.1 k.Q
More than 10 k_
• PICKUP
Wavelength
780 nm
• GENERAL
Power consumption
Power supply
DImentions (WX HX D)
Weight
[MASH is • trademark NI-F. I
of
11W
AC 120 V, 60 Hz
430X 170X387 mm
(16-15/16" X6-11/16"X 15-1/4")
7.0 kg (15.4 Ib.)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
