Interfaces
®
Serial
Communications
(RS-232-C)
Interface
Connector
(Option
12)

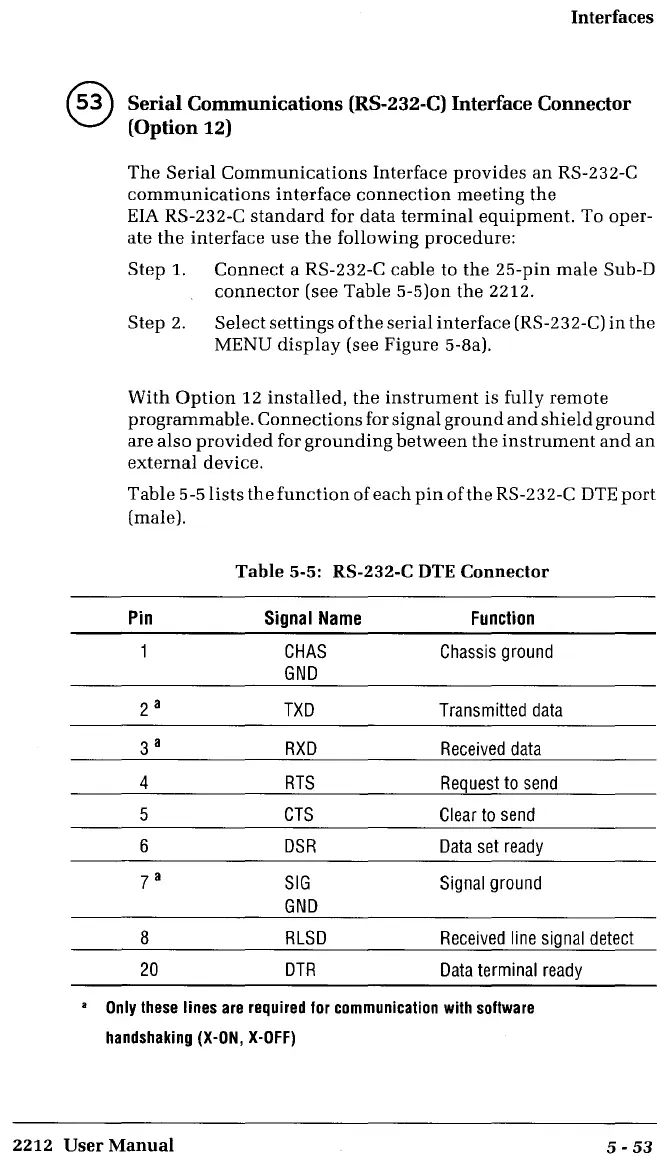

The
Serial
Communications
Interface
provides
an
RS-232-C
communications
interface
connection
meeting
the
EIA
RS-232-C
standard
for
data
terminal
equipment.
To
oper-
ate
the
interface
use
the
following
procedure:
Step
1.
Connect
a
RS-232-C
cable
to
the
25-pin
male
Sub-D
connector
(see
Table
5-5)on
the
2212.
Step
2.
Select
settings
of
the
serial
interface
(RS-232-C)
in
the
MENU
display
(see
Figure
5-8a).
With
Option
12
installed,
the
instrument
is
fully
remote
programmable.
Connections
for
signal
ground
and
shield
ground
are
also
provided
for
grounding
between
the
instrument
and
an
external
device.
Table
5-5
lists
the
function
of
each
pin
of
the
RS-232-C
DTE
port
(male).
Table
5-5:
RS-232-C
DTE
Connector
Pin
Signal
Name
Function
CHAS
Chassis
ground
GND
TXD
Transmitted
data
RXD
Received
data
4
RTS
Request
to
send
5
CTS
Clear
to
send
6
DSR
Data
set
ready
SIG
Signal
ground
GND
8
RLSD
Received
line
signal
detect
20
DTR
Data
terminal
ready
•
Only
these
lines
are
required
for
communication
with
software
handshaking
(X-ON,
X-OFF)
2212
User
Manual
5
-
53
138
140
