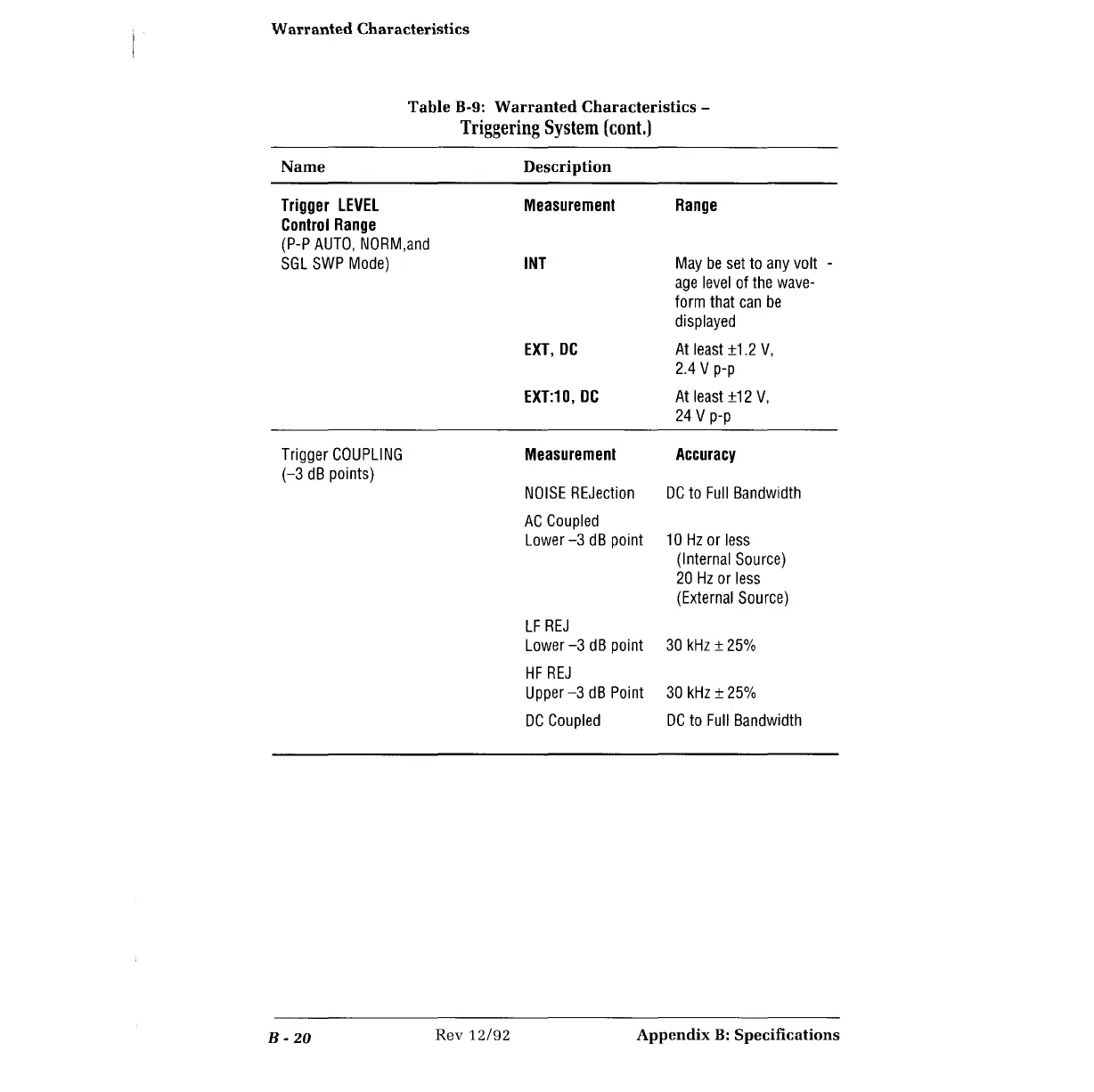

Warranted Characteristics
Table B-9: Warranted Characteristics -
Triggering System (cont.)
Name
Trigger LEVEL
Control Range
(P-P AUTO, NORM.and
SGL SWP Mode)
Trigger COUPLING
(-3 dB points)
B-20
Rev 12/92
Description
Measurement
INT
EXT, DC
EXT:10, DC
Measurement
NOISE REJection
AC Coupled
Lower -3 dB point
LF REJ
Range
May be set to any volt -
age level of the wave-
form that can be
displayed
At least ±1.2 V,
2.4 V p-p
At least ±12 V,
24 V p-p
Accuracy
DC to Full Bandwidth
10 Hz or less
(Internal Source)
20 Hz or less
(External Source)
Lower -3 dB point 30 kHz± 25%
HF REJ
Upper -3 dB Point 30 kHz± 25%
DC Coupled DC to Full Bandwidth
Appendix B: Specifications
