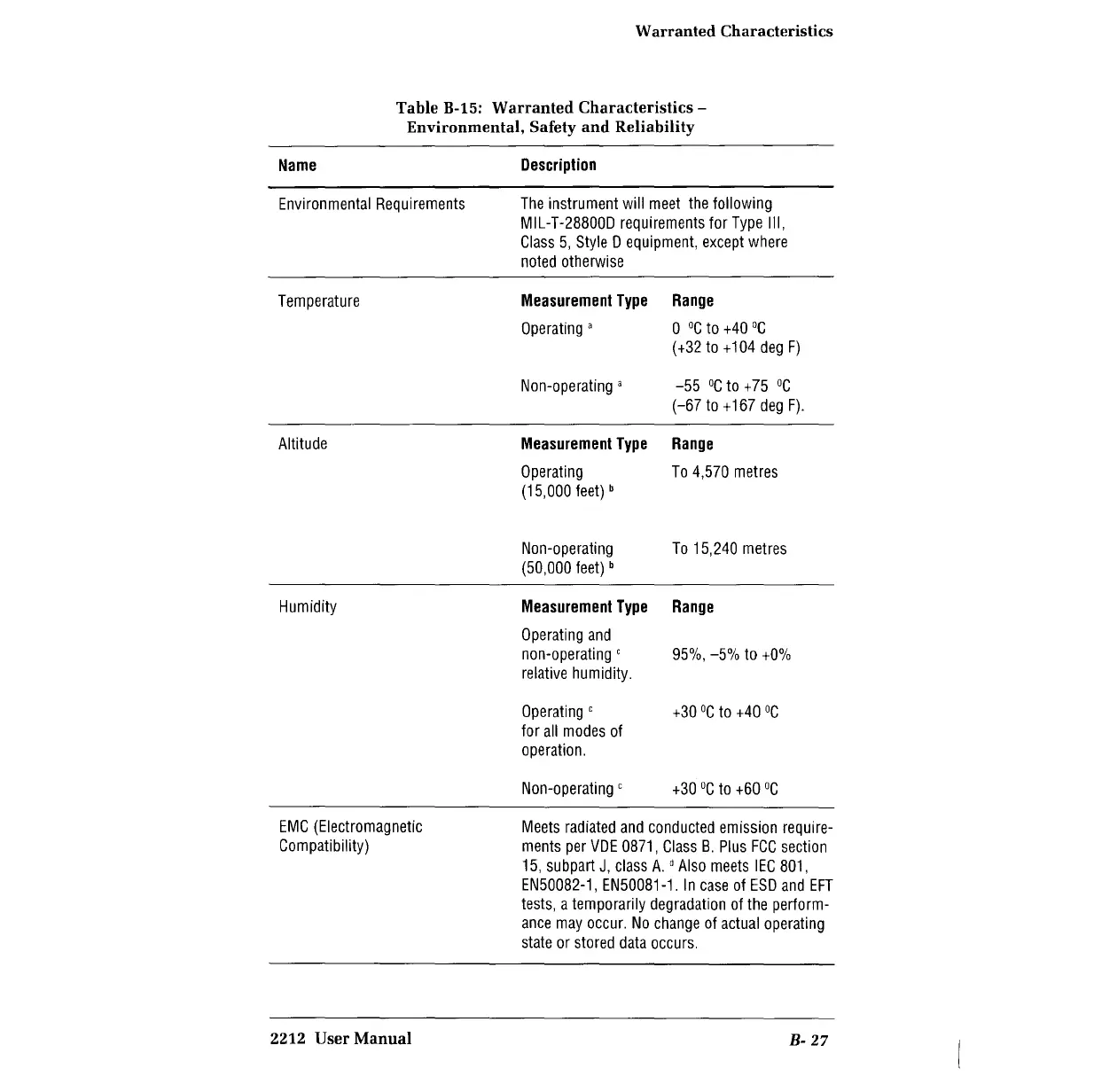

Warranted
Characteristics
Table
B-15:
Warranted
Characteristics
-
Environmental,
Safety
and
Reliability
Name
Environmental
Requirements
Temperature
Altitude
Humidity
EMC
(Electromagnetic
Compatibility)
2212
User
Manual
Description
The
instrument
will
meet
the
following
MIL-T-288000
requirements
for
Type
Ill,
Class
5,
Style
D
equipment,
except
where
noted
otherwise
Measurement
Type
Range
Operating
'
O
°C
to
+40
°C
(
+32
to
+
104
deg
F)
Non-operating
a
-55
°C
to
+75
°C
(-67
to+
167
deg
F).
Measurement
Type
Range
Operating
To
4,570
metres
(15,000
feet)
b
Non-operating
To
15,240
metres
(50,000
feet)
b
Measurement
Type
Range
Operating
and
non-operating
c
95%,
-5%
to
+0%
relative
humidity.
Operating
'
+30
°C
to
+40
°C
for
all
modes
of
operation.
Non-operating
'
+30
°C
to
+60
°C
Meets
radiated
and
conducted
emission
require-
ments
per
VOE
0871,
Class
B.
Plus
FCC
section
15,
subpart
J,
class
A.
d
Also
meets
IEC
801,
EN50082-1,
EN50081-1.
In
case
of
ESD
and
EFT
tests,
a
temporarily
degradation
of
the
perform-
ance
may
occur.
No
change
of
actual
operating
state
or
stored
data
occurs.
B-27
194
196
