016-0357-01
016-0799-01
K212
346-0058-00
Part Number
070-4917-00
010-6407-01
Service manual
Word Recognizer probe
Oscilloscope camera
C-5C Option 01 or
C7 Option 03 with Option 30
SCOPE-MOBILE cart
Carrying strap
The following optional accessories are recommendec.
for use with the 2430 Digital Oscilloscope.
016-0096-00
Part Number
016-0825-00
OPTIONAL ACCESSORIES
Rackmounting conversion kit
Rackmounting rear-support kit
(included in the conversion kit)
The following accessories are available to rackmount an
instrument that is not purchased as a 1R option.
RACKMOUNTING ACCESSORIES
P6133
016-0692-0f
016-0537-00
070-4918-00
070-5705-00
070-5497-00
159-0014-00
378-0199-03
378-0208-00
200-2742-00
378-0199-00
378-0199-05
Part Number
2 Probes, 10X, 1.3 meter,
with accessories
1 Accessory pouch, snap
1 Accessory pouch, ziploc
1 Operators manual
1 Instrument Interfacing guide
1 User Reference guide
1 Fuse, 5 A, 250 V, AGC/3AG
1 Crt filter, blue plastic (installed)
1 Crt filter, clear plastic
1 Front cover
1 CCIR graticule (with Video option)
1 NTSC graticule (with Video option)
7-2
The following standard accessories are provided with
each instrument.
STANDARD ACCESSORIES
The Word Recognizer Probe optional accessory is used
to obtain triggering on a selected parallel TTL data word.
A word length of 16-bits plus a 17th qualifier bit is recog-
nizable, with each bit selectable as 0, 1, or X (don't care).
Recognition may be either synchronous with an external
clock signal (rising or falling edge) or asynchronous. All the
required hardware and firmware for using the Word
Recognizer Probe is included in the standard 2430 Digital
Oscilloscope; it is only necessary to purchase the Word
Recognizer Probe optional accessory. More specific infor-
mation on the Word Recognizer Probe, including electrical
specification, is provided in the Instruction Sheet supplied
with the probe. Operating instructions for use of the word
recognition capabilities of the 2430 are included in the
2430 Operators Manual in both Section 3 (Controls, Con-
nectors, and Indicators) and Section 7 (Options and
Accessories).
OPTIONAL WORD RECOGNIZER
PROBE ACCESSORY
Option 11 provides two probe-power connectors on the
rear panel of the instrument. Voltages supplied at the
PROBE POWER connectors meet the power requirements
of standard Tektronix active oscilloscope probes.
OPTION 11
PROBE POWER

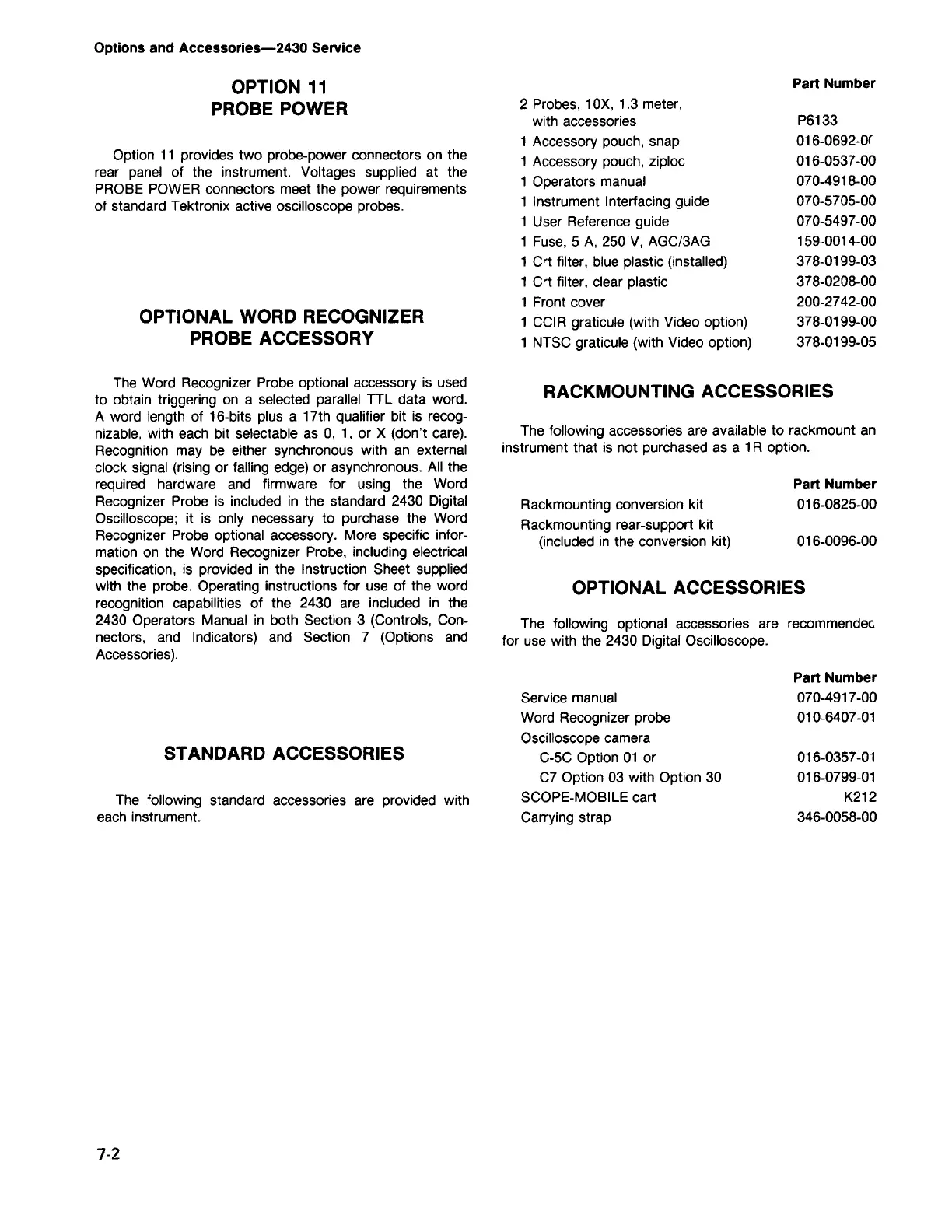

Options and Accessories-2430 Service
