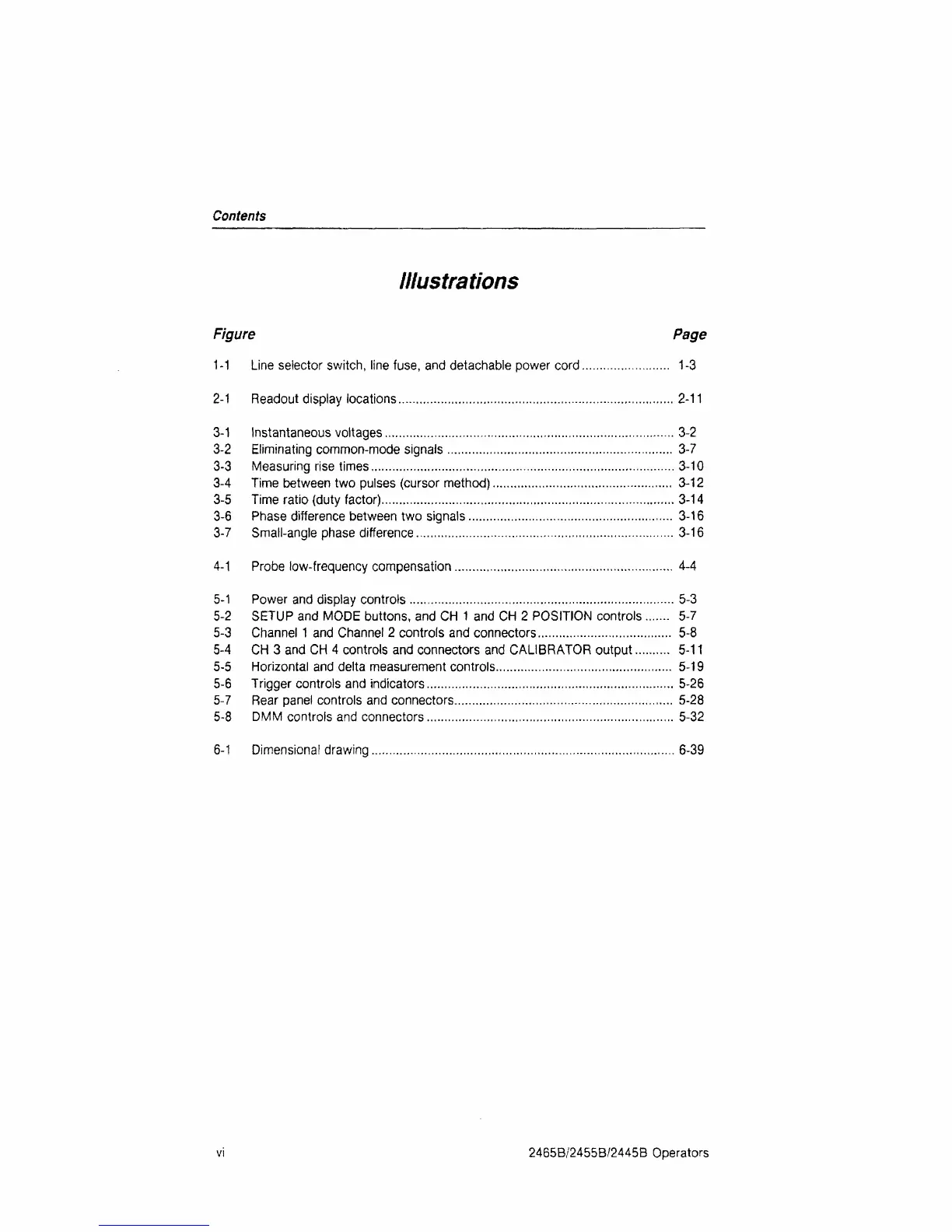

Contents
Illustrations
Figure Page
1-1 Line selector switch, line fuse, and detachable power cord 1-3
2-1 Readout display locations 2-11
3-1 Instantaneous voltages 3-2
3-2 Eliminating common-mode signals 3-7
3-3 Measuring rise times 3-10
3-4 Time between two pulses (cursor method) 3-12
3-5 Time ratio (duty factor) 3-14
3-6 Phase difference between two signals 3-16
3-7 Small-angle phase difference 3-16
4-1 Probe low-frequency compensation 4-4
5-1 Power and display controls 5-3
5-2 SETUP and MODE buttons, and CH 1 and CH 2 POSITION controls 5-7
5-3 Channel 1 and Channel 2 controls and connectors 5-8
5-4 CH 3 and CH 4 controls and connectors and CALIBRATOR output 5-11
5-5 Horizontal and delta measurement controls 5-19
5-6 Trigger controls and indicators 5-26
5-7 Rear panel controls and connectors 5-28
5-8 DMM controls and connectors 5-32
6-1 Dimensional drawing 6-39
VI
2465B/2455B/2445B Operators
