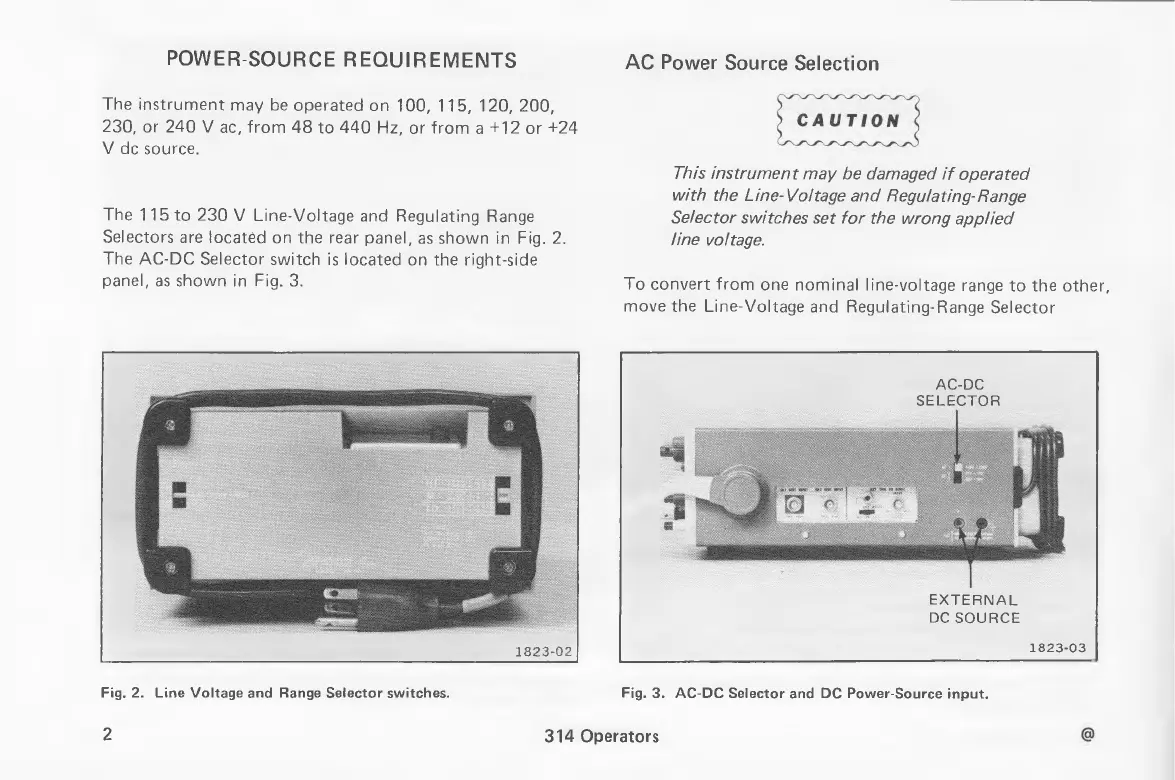

POWER-SOURCE REQUIREMENTS
AC Power Source Selection
The instrument may be operated on 100, 115, 120, 200,
230, or 240 V ac, from 48 to 440 Hz, or from a +12 or +24
V de source.
The 115 to 230 V Line-Voltage and Regulating Range
Selectors are located on the rear panel, as shown in Fig. 2.
The AC-DC Selector switch is located on the right-side
panel, as shown in Fig. 3.
This instrument may be damaged if operated
with the Line-Voltage and Regulating-Range
Selector switches set for the wrong applied
line voltage.
To convert from one nominal line-voltage range to the other,
move the Line-Voltage and Regulating-Range Selector
1823-02
Fig. 2. Line Voltage and Range Selector switches.
AC-DC
SELECTOR
EXTERNAL
DC SOURCE
1823-03
Fig. 3. AC-DC Selector and DC Power-Source input.
2
314 Operators
