CH
1
and
CH
2
VERT
INPUT.
Signal
input
connec
tor
for
channels
1
and
2.
Chassis
Ground.
Provides
a
common-signal
ground
return
to
the
signal
source.
Operating
the
314
un
grounded
on
+12
V
or
+24
V
d
c
isolates
the
instrument
from
ground-loop
currents
and
conducted
radio
fre
quency
interference
(rfi).
However,
this
ungrounded
operation
permits
the
instrument
case
to
rise
to
the
signal
source
potential.
DISPLAY
(jP)
FOCUS,
INTENSITY.
Adjust
for
a
sharp,
bright
display.
CHOP.
Displays
signals
from
both
channels
simul
taneously
(dual
trace).
Display
is
switched
between
channels
at
a
100
kHz
rate.
See
NOTE
following
ALT.
ALT.
Signals
from
both
vertical
channels
are
displayed
alternately
(dual
trace).
Display
is
switched
after
each
sweep.
See
NOTE.
NOTE
When
both
CHOP
and
ALT
buttons
are
pushed
in,
display
is
the
algebraic
sum
of
the
vertical
channel
input
signals.

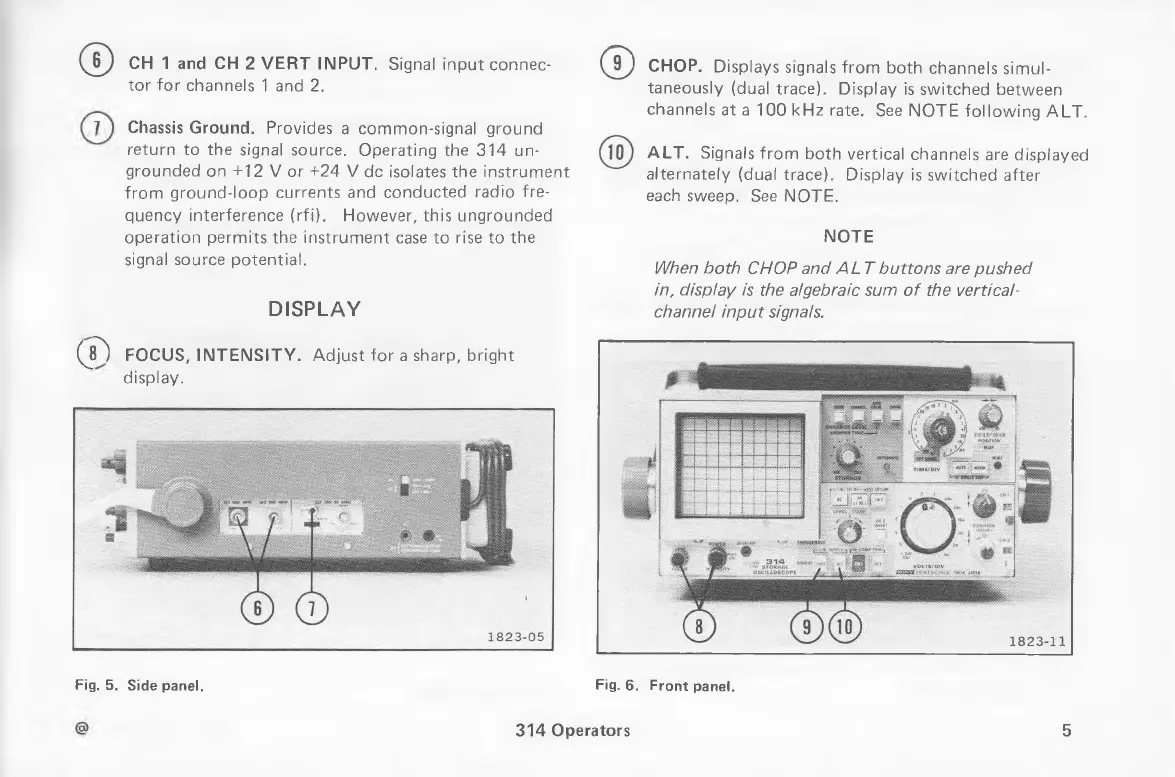

Fig.
5.
Side
panel.
Fig.
6.
Front
panel.
314
Operators
5
