Tektronix AFG3000C Series User Manual

Operating basics
Quick Tip
The AFG3000 ser
ies instruments generate a phase continuous FSK signal.
To Output a PWM
Waveform
Follow these steps to output a PWM waveform.

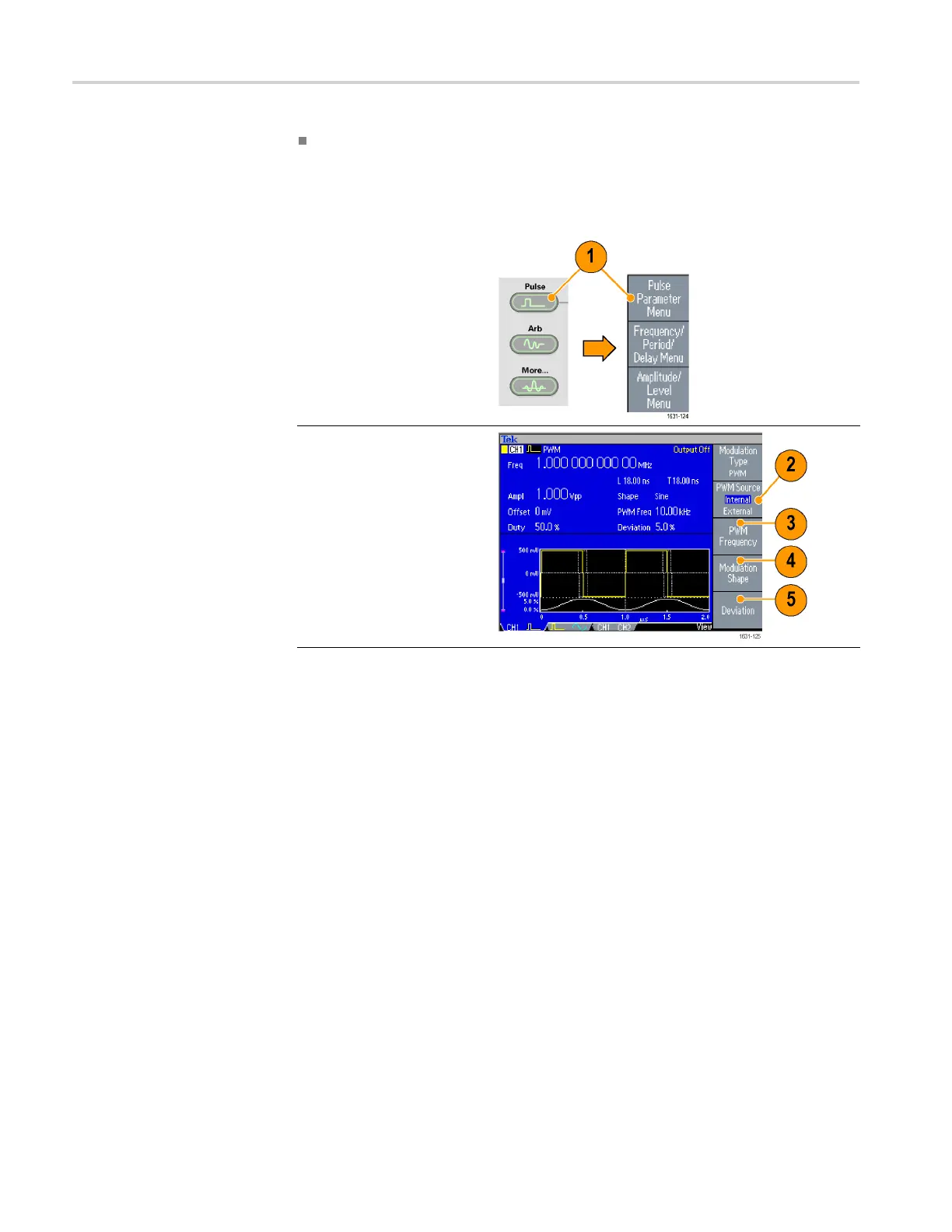

1. Push the front-panel
Pulse button, and
then push the Pulse
Parameter Menu bezel
button to display the
pulse parameter setting
screen.
2. Push the front-panel
Modulation button
to display
the PWM
parameter setting screen.
Select the PWM source.
3. Set the PW
M frequency.
4. Select the Modulation
Shape.
5. Set the D
eviation (pulse
width deviation).
62 AFG3000 and AFG3000C Series User Manual
