Tektronix AFG310 User Manual

Installation Introductions
016-1674-50 Rackmount Kit
9
Procedure for Attaching Bracket to two Instruments
1. Set the two instruments side by side with the top down on the work surface
and the front facing you.
2. Put the bracket on the two instruments and align the bracket screw holes
with the instruments screw holes. See Figure 6.
3. Attach the bracket to the instruments with eight screws (four M3 6 mm
screws per one instrument) using a #2 phillips tip screwdriver.
M3X6mm
M3X6mm
Bracket
Screw
Screw

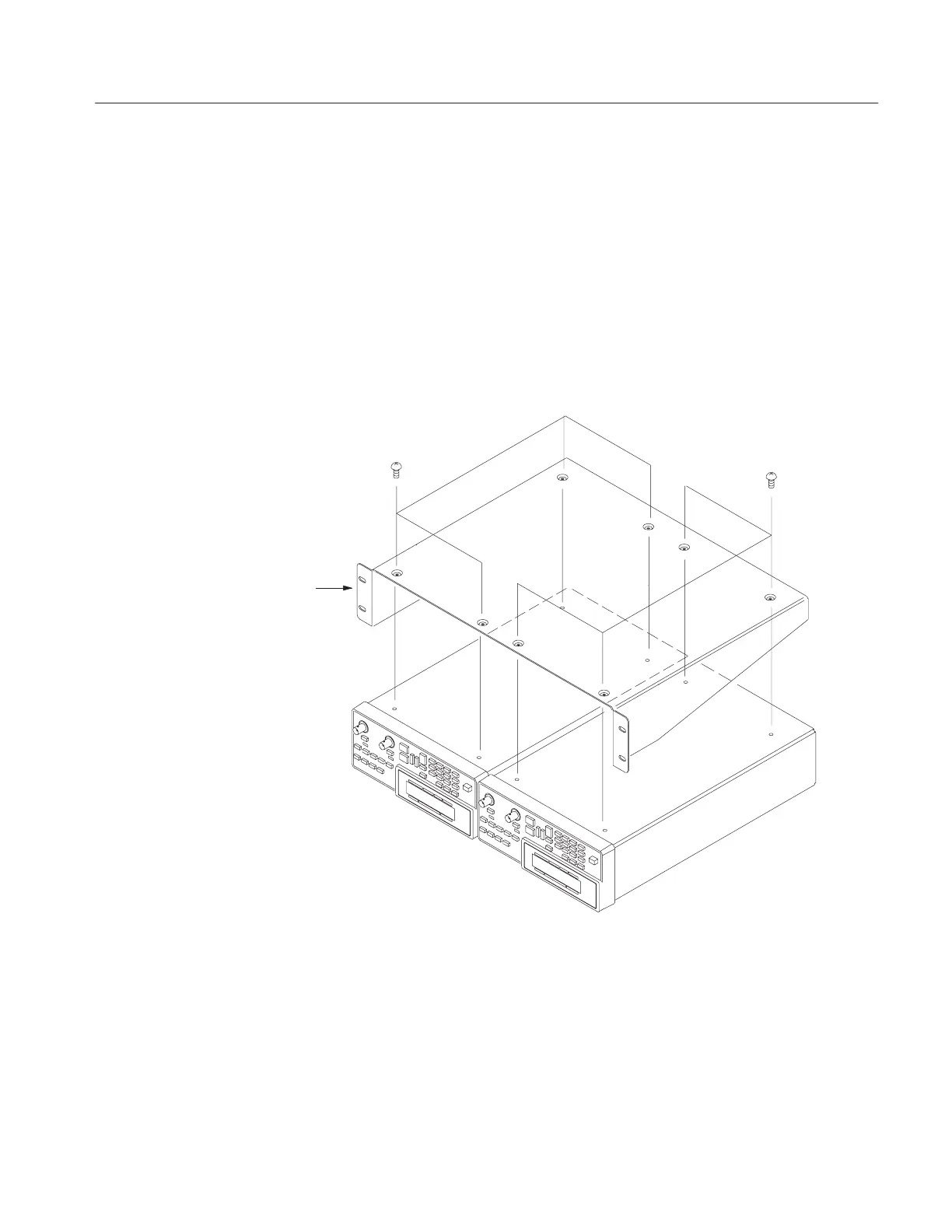

Figure 6: Attaching bracket to two instruments

Tektronix AFG310 Specifications

General

Output Voltage Range	±5 V into 50 Ω
Vertical Resolution	14 bits
Sweep	Linear, Logarithmic
Type	Arbitrary Function Generator
Waveforms	Sine, Square, Pulse, Ramp, Noise, Arbitrary
Modulation	AM, FM, PM, PWM, FSK
Interface	USB
Display	3.5" LCD
Power Supply	100 to 240 V, 50/60 Hz
Weight	2.6 kg (5.7 lb)
