Power on the instrument

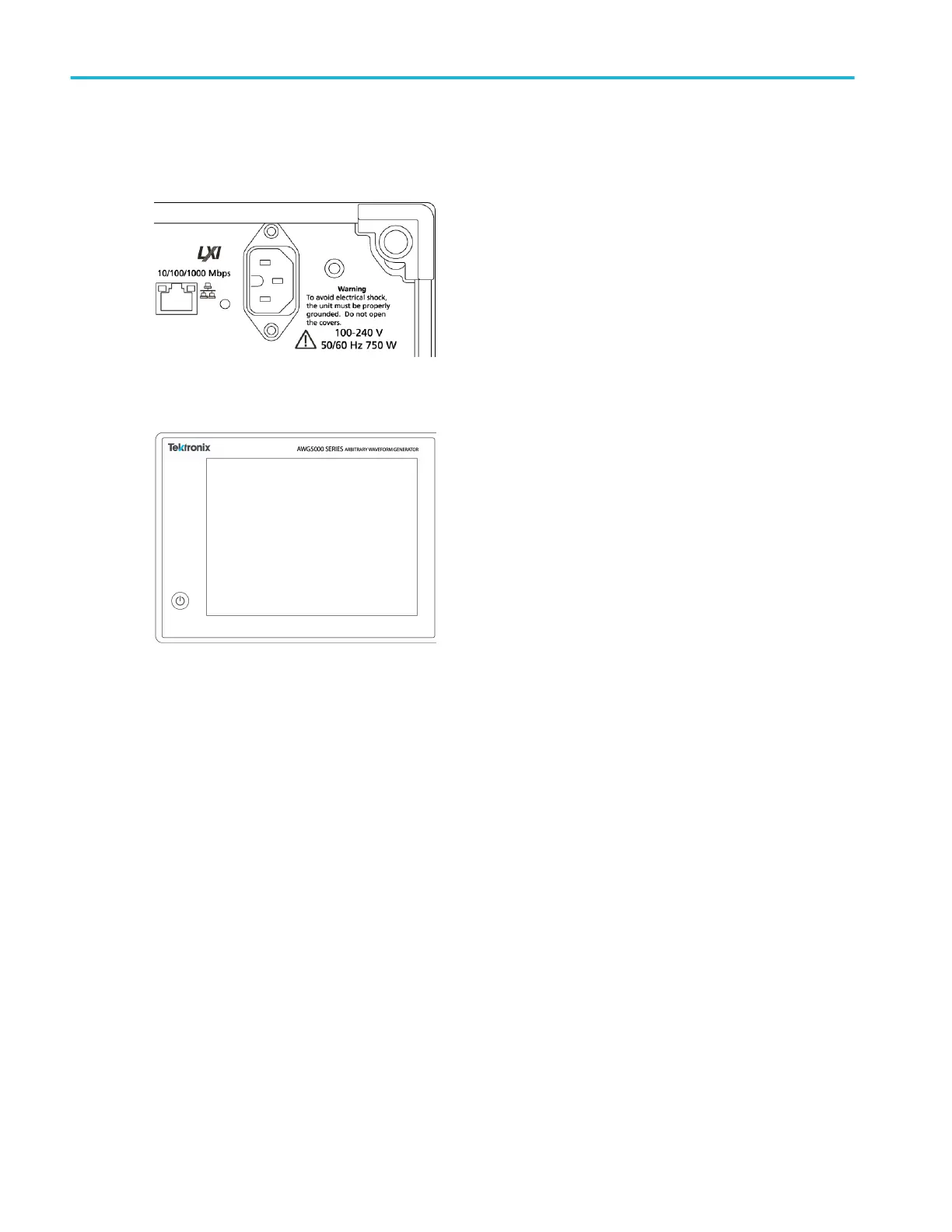

1. Connect the AC power cord to the rear of the instrument.

2. Use the front-panel power button to switch the instrument on.

The power button indicates four instrument power states:

■

No light – no power applied

■

Yellow – standby mode

■

Green – powered on

■

Flashing Red – over heat condition (instrument shuts down and cannot restart until internal temperature returns to a

safe level)

Install the instrument

8 AWG5200 Series Installation and Safety Instructions
