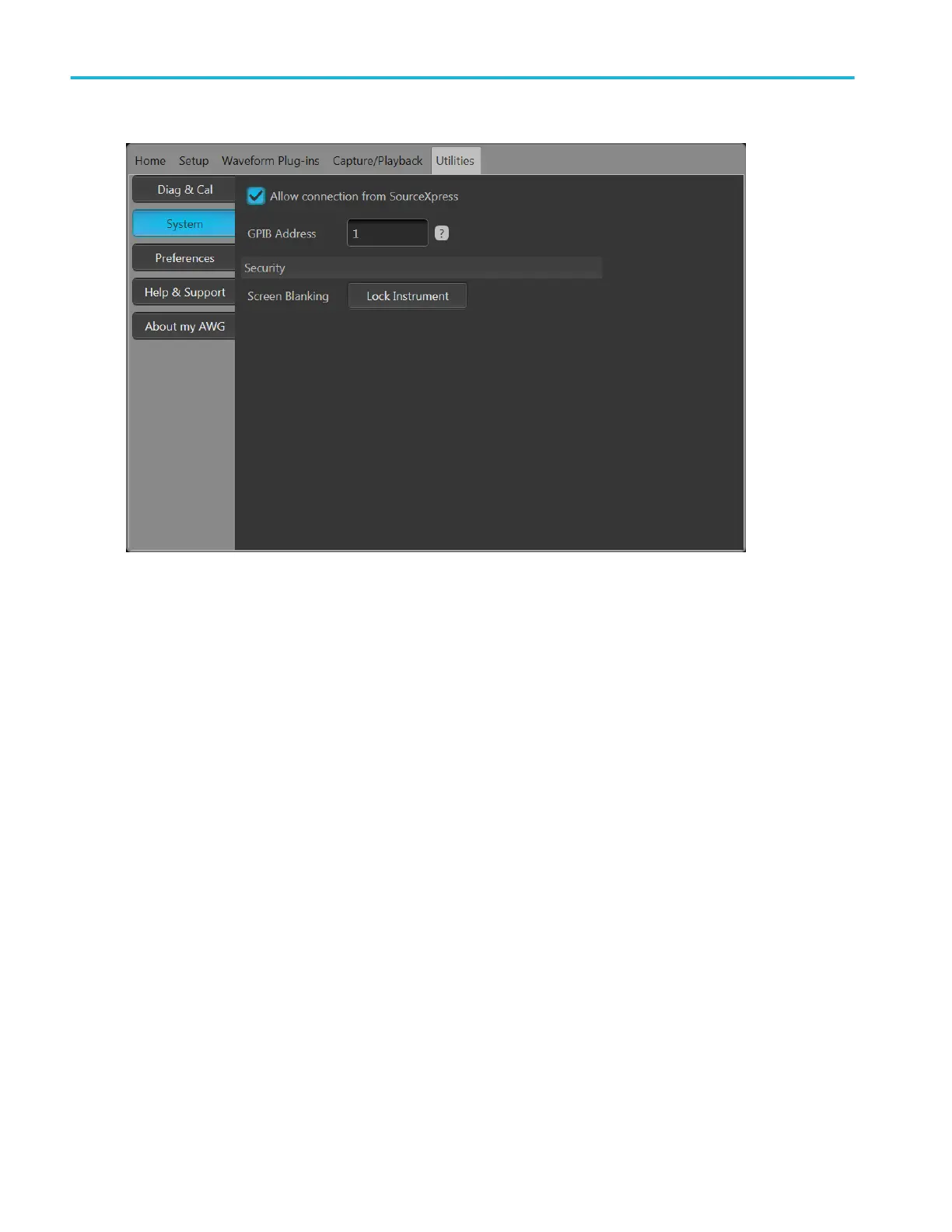

SourceXpress connection. You can choose to disable the ability of the external SourceXpress application to connect to the
instrument. SourceXpress has the ability to connect to, and control, the instrument directly from it's interface. This setting is
retained for subsequent power on cycles.
GPIB. You can enter a unique GPIB address here. If changing the address, you must disconnect and reconnect the external
USB-to-GPIB converter.
Security. Press the Lock Instrument button to lock the user interface screen and controls. When locked, all front-panel controls
are disabled except for the power button.
Basic guidelines to play a waveform
The Arbitrary Waveform Generator provides many controls and options that you can use when preparing to play a waveform.
Here are some basic guidelines and tips to help obtain your goal of playing a waveform. Refer to the instrument’s help system for
more detail about instrument controls and functions.
■
Load a waveform (or waveforms) into the waveform list.
■
Assign a waveform (from the waveform list) to a channel.
■
Set the Run mode, see Run mode on page 26. If using a triggered run mode, supply the necessary trigger event.
■
Enable the channel output.
■
Make sure All Channels Off control is not active.
■
Press the Play button (front-panel or screen).
■
To deal with problems or errors, refer to the instrument help system.
Operation basics
28 AWG5200 Series Installation and Safety Instructions
