3. Select the license file and select Open.

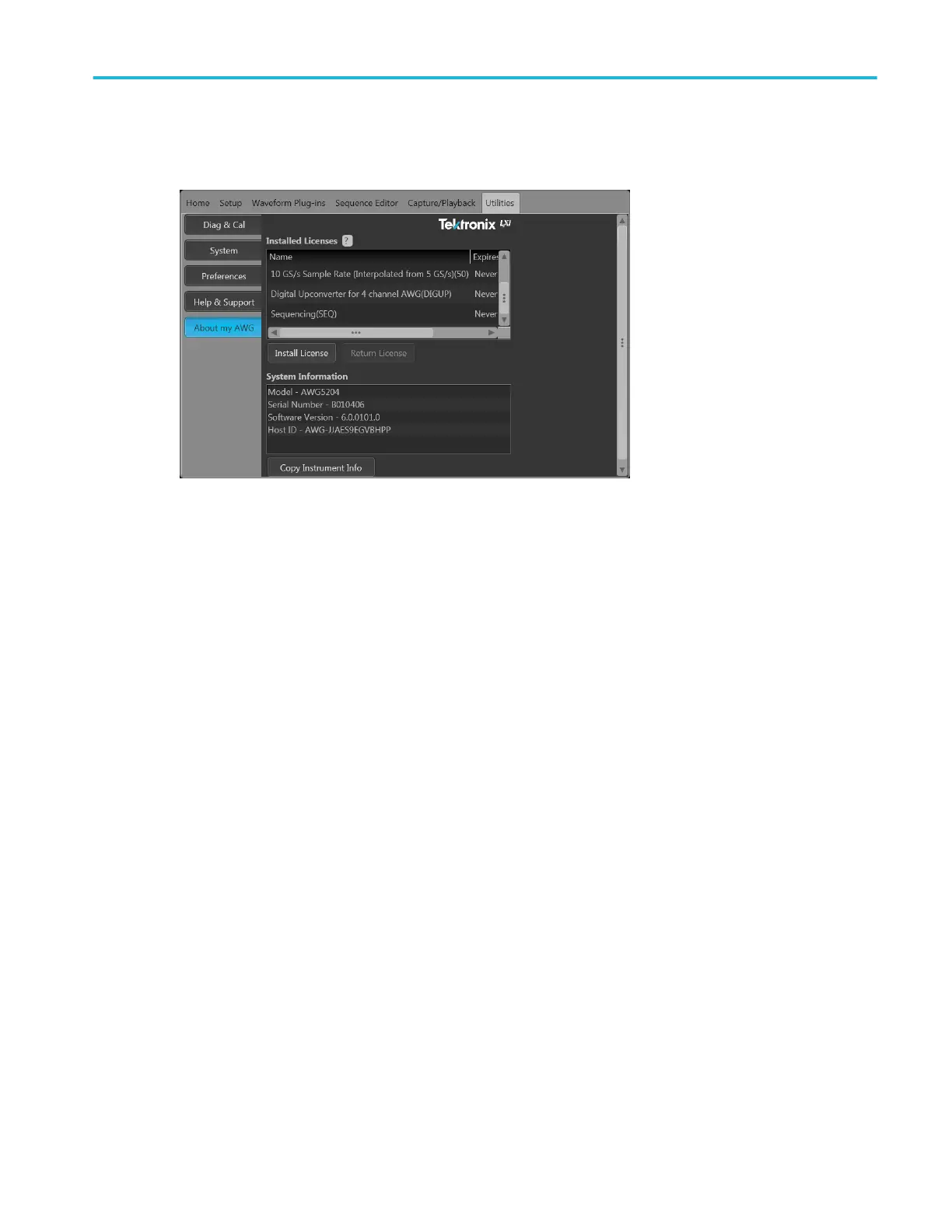

4. After the successful installation is finished, the name of the licensed feature is listed along with the expiration date and time.
Floating licenses display the expiration date for that application. The expiration date for a floating license is defined when the
license is checked out from the Tektronix Asset Management system. After the license expires, the application is automatically
disabled and the license on the TekAMS is free to be assigned to a different host.
Node locked license have no expiration date.
Windows interface guidelines
Because the instrument uses the Microsoft Windows interface, you have open access to the Windows operating system. You can
access the Windows desktop to load and run other Windows-based applications such as Microsoft Excel.
Follow these guidelines to avoid making operating system changes that might cause problems while using the instrument:
■
Be careful when making changes in the Control Panel. Avoid making changes to any controls with which you are unfamiliar.
■
Do not delete or change any system fonts; this can affect the quality of the display.
■
Be careful when making changes to the system Display properties. Changing settings such as resolution, text size, fonts,
and orientation affects the usability of the display and the touchscreen.
■
Do not change the contents of the Windows folder or the Program Files\Tektronix\AWG5200\ folder.
■
Do not change the BIOS settings; this can affect the overall operation of the instrument.
Install the instrument
AWG5200 Series Installation and Safety Instructions 15
