Display a Wavefo
rm

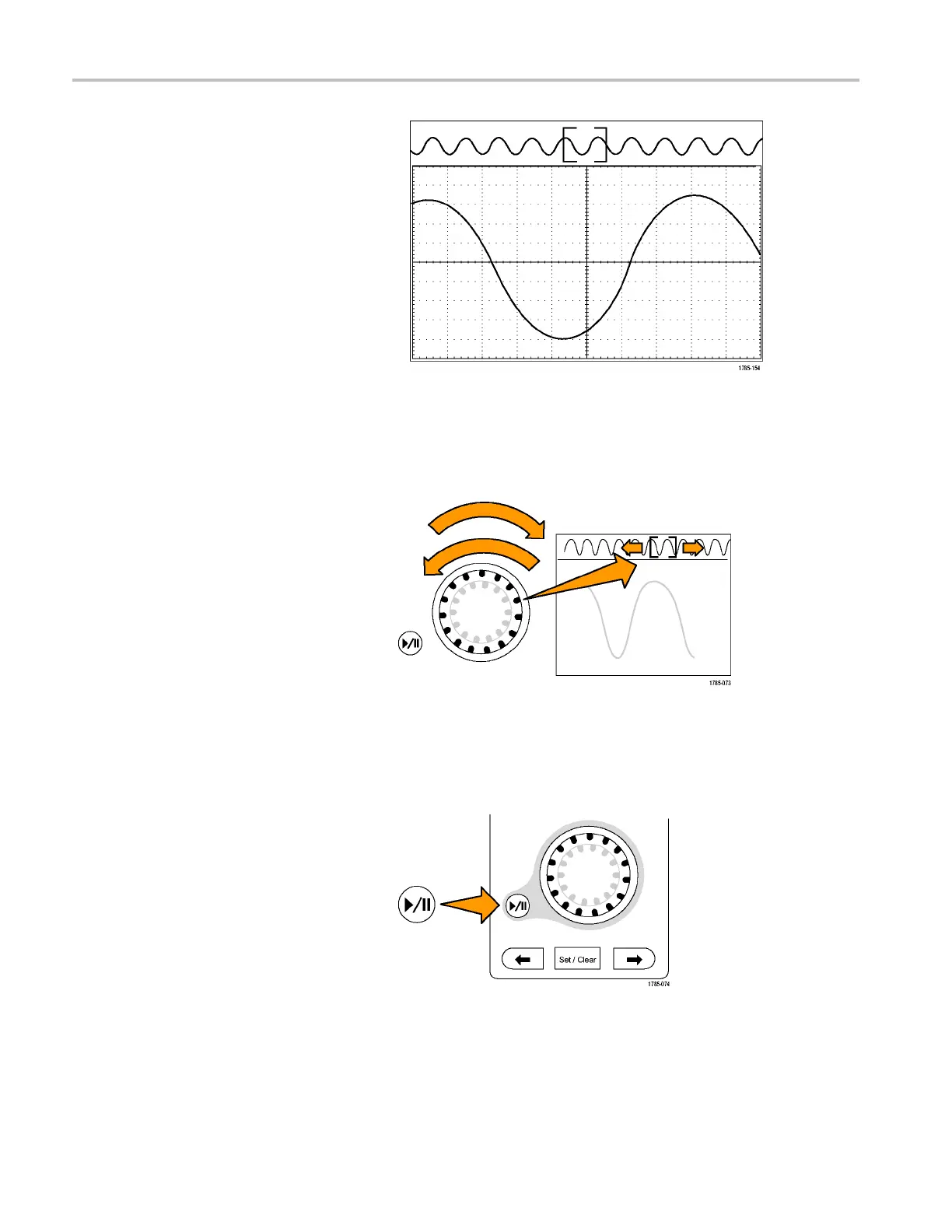

Using Wave Inspector to Manage Long Record Length Waveforms
The Wave Inspector controls (Pan/Zoom, play/pause, Mark, Search) help you to efficiently work with long record length
waveforms. To magnify a waveform horizontally, turn the Zoom knob. To scroll through a zoomed waveform, turn the
Pan k nob.
Wave inspector is available on MSO5000 and DPO5000 Series instruments.
The Pan-Zoom Control consists of:
1. An outer pan knob
2. An inner zoom knob
Zooming a Waveform
To use zoom:
1. Rotate the inner knob on the Pan-Zoom
control clockwise to zoom in on a
selected part of the waveform. Rotate
the knob counterclockwise to zoom back
out.
2. Alternatively, enable or disable the zoom
mode by pushing the zoom button.
(See page 97, Using MultiView Zoom.)
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 103
