TM 11-6625-2980-14

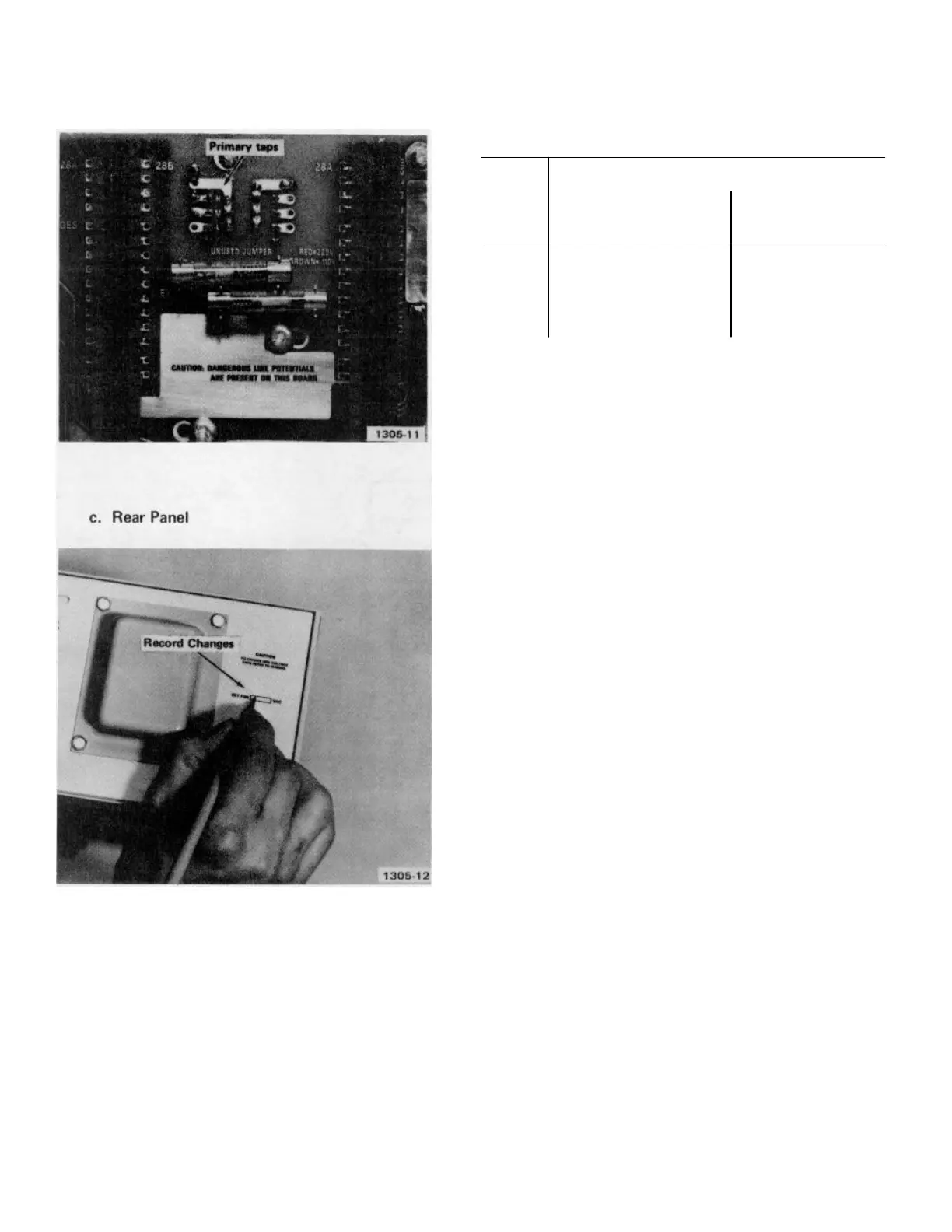

b. Line Range Taps
3. Replace the cabinet.
4. If necessary, change the line cord power plug to match the power source receptacle or use an adapter.
5. Plug the cord into the power source.
6. Insert the desired plug-ins.
7. Use the bail to raise the front of the instrument ...go to Operating Instructions...
A-2
Universal Transformer
Line Regulating Ranges
Selector
Block
Position 120 Volts Nominal 220-Volts Nominal
L 90 VAC to 110 VAC 180 VAC to 220 VAC
M 99 VAC to 121 AC 198 VAC to 242 VAC
H 108 VAC to 132 VAC 216 VAC to 264 VAC
Line Fuse
Data 1.6 A slow-blow 0.8 A slow-blow
